DIFFERENTIALS 7E-7

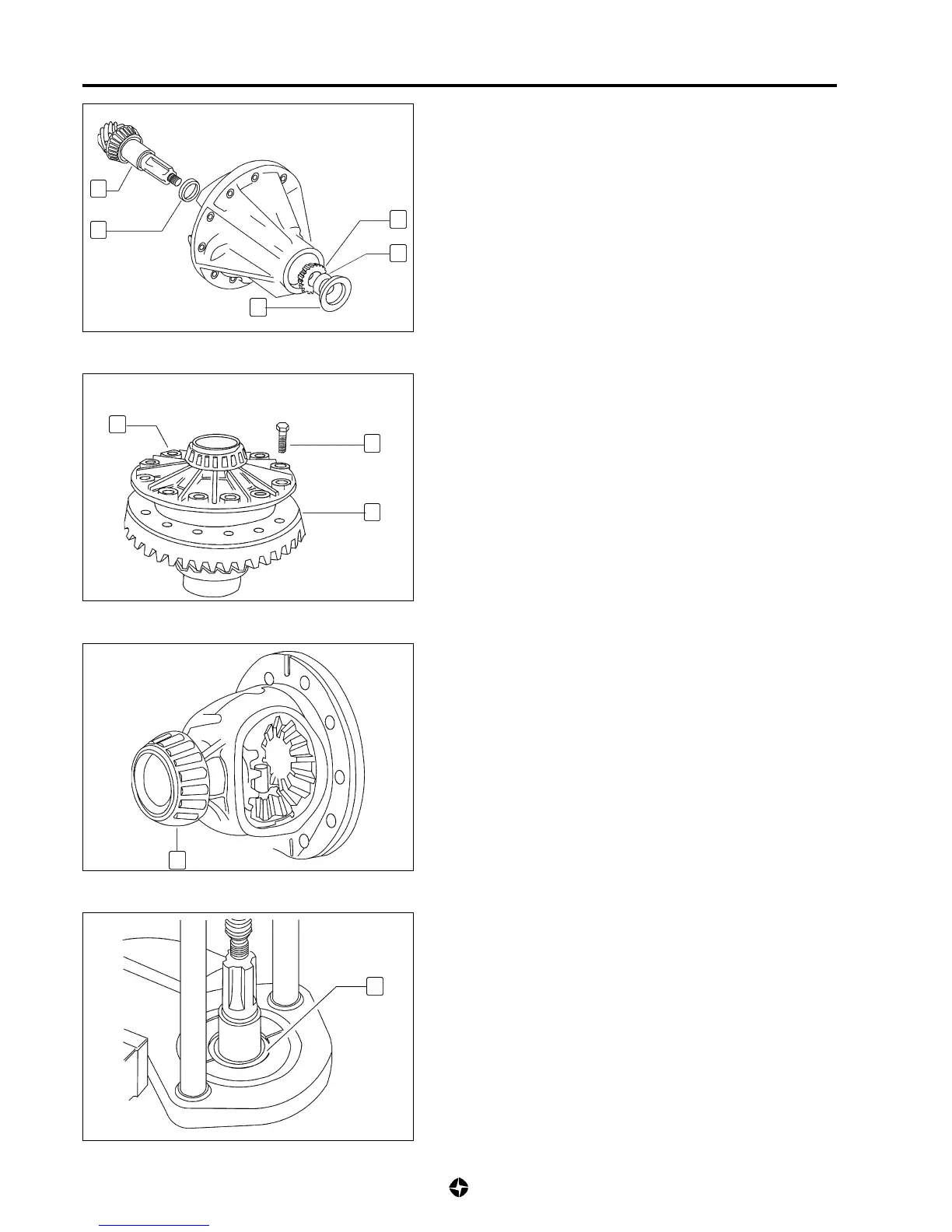

6) Dismantle:
• Oil seal (7) from the flange.
• Bushing of supplement (8).
• The rear journal (9), (tail) of engaging pinion.
7) Extract:
• The ensemble engaging pinion and front journal (10)
(head).
• Washers (11) which adjust the preloading of the pinion
journals.
NOTE:
Keep the washer thickness (11) to assemble them
later (as an approximate measure).
9
11
10
8
7
8) Dismantle screws (12) fixing crown (13) to the differential
box (14) and separate the crown.
9) Dismantle rollers (15) from differential box and pair them
with their respective trails.
10) Dismantle roller (16) of the engaging pinion head.
12
13
14
15
16
