7E- 8 DIFFERENTIALS

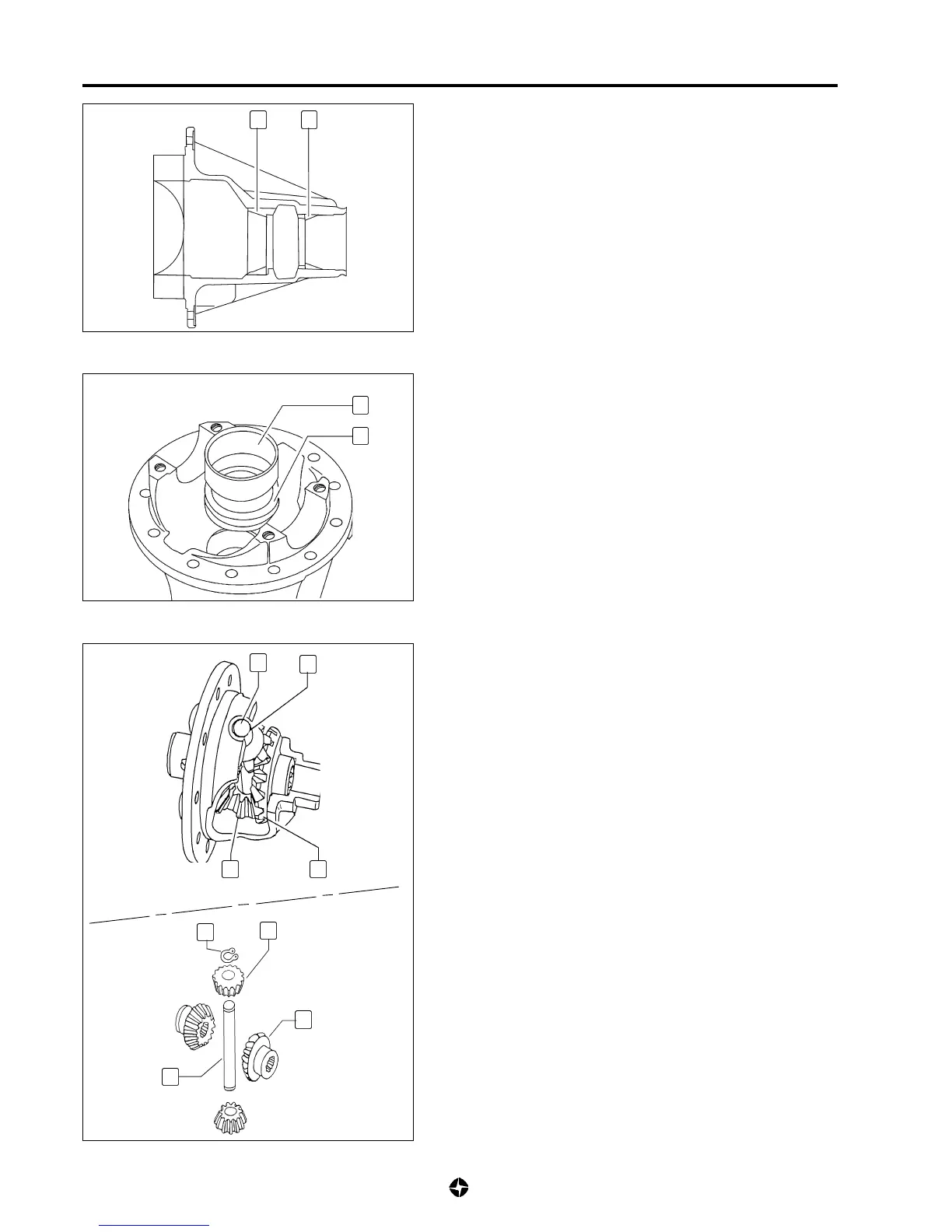

11) Dismantle trail (17) of the rear roller (tail) of the engaging
pinion and trail (18) of front roller (head).
18
17
12) Dismantle trail (18) of head roller and withdraw washer (19)
which adjust the height of the engaging pinion.
NOTE:
Keep washer thickness (19) to assemble them later
(as approximate measure).
13) Dismantle circlip (20) and extract axle.
14) Dismantle the two planet wheels (22) and the two satellite
wheels (23)
NOTE:
Keep satellite and planetary wheels in pairs with their
housings and washers.
19
18
22
23
20
21
23
20
22
21
