8 Setting the Analytical Parameters and File Management
8.3 Specifying the Analytical Flow Line Components ([Line Config])
92
GC-2010 Plus
(2) When using a SPL and FID for one line, and a WBI and TCD on an other line, select the
SPL and the FID for line 1, and the WBI and TCD for line 2.
(3) When using a single column connected to two detectors:

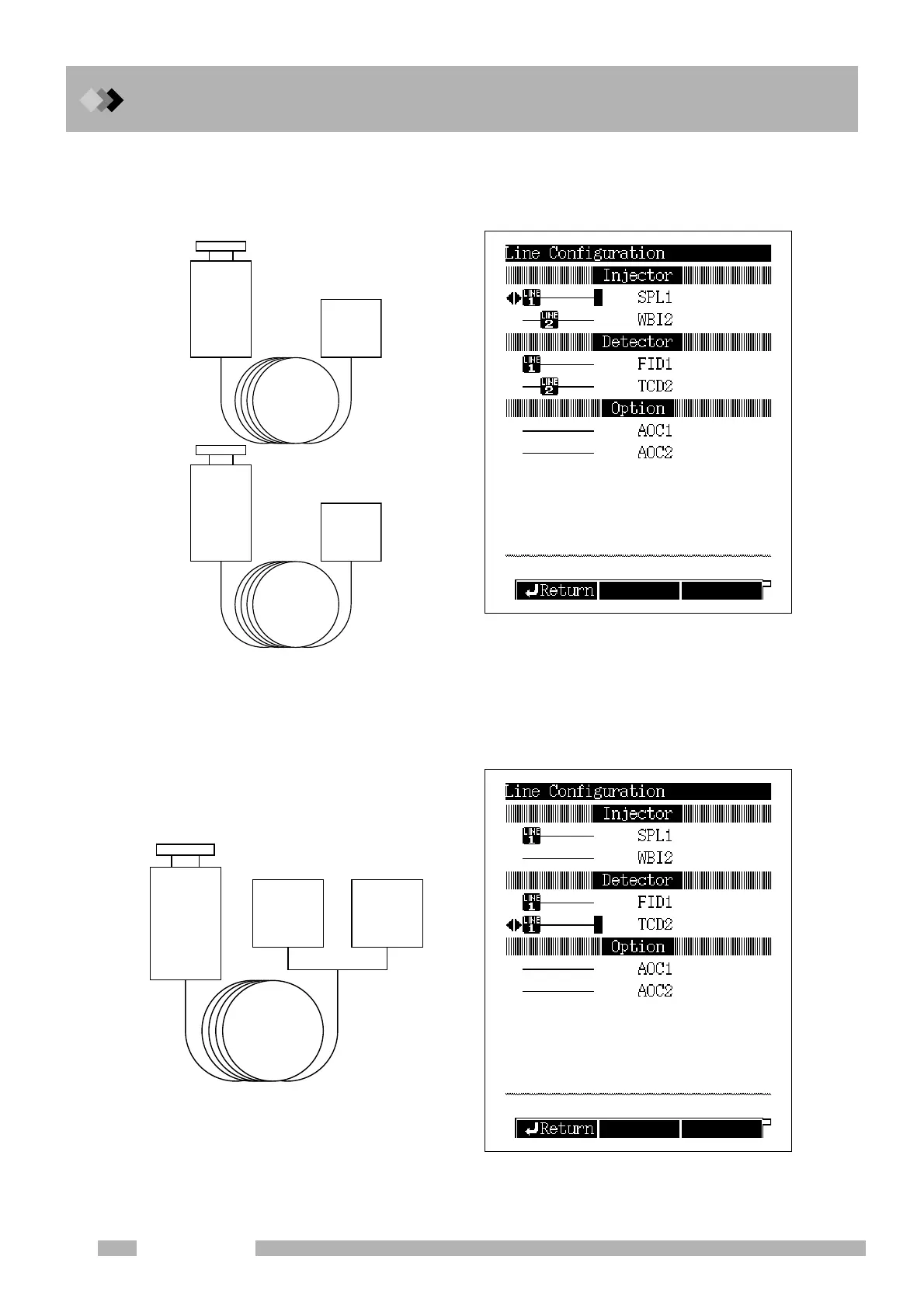

Fig. 8.3.3 Line configuration (Example 2)
Fig. 8.3.4 Line configuration (Example 3)
INJ
DET
COL
INJ
DET
COL
INJ
DET DET
COL
