11 Creating an Oven Temperature Program
11.2 Temperature Programs
108
GC-2010 Plus
Q Program creation
1-ramp temperature program
2-ramp temperature program

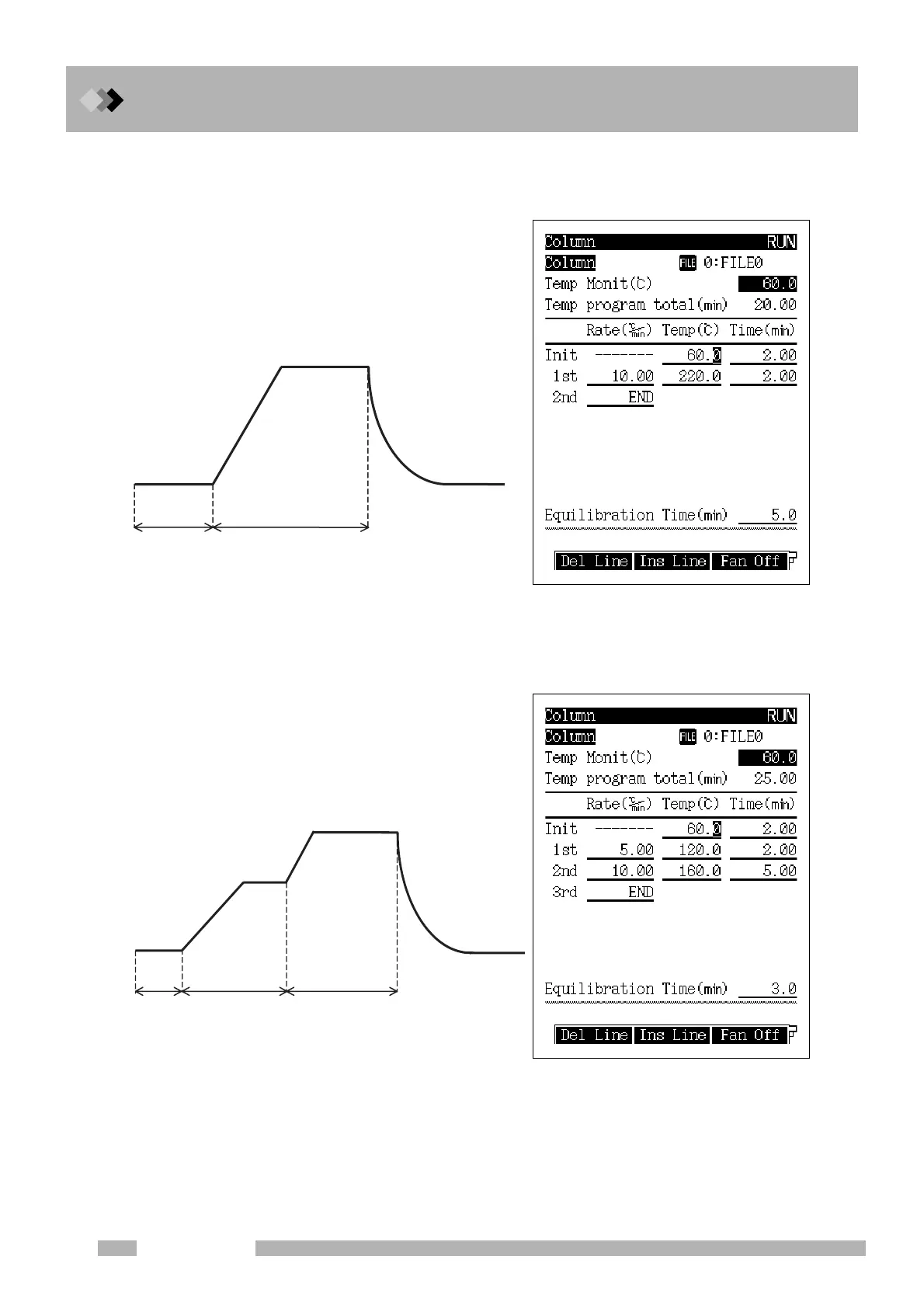

Fig. 11.2.1 Temperature program (Example 1)
Fig. 11.2.2 Temperature program (Example 2)
220 (2 min)
60 (2 min)
Initial
temperature
1st stage
10 /min
5 min
160 (5 min)
120 (2 min)
60 (2 min)
5 /min
10 /min
3 min
Initial
temperature
1st stage 2nd stage
