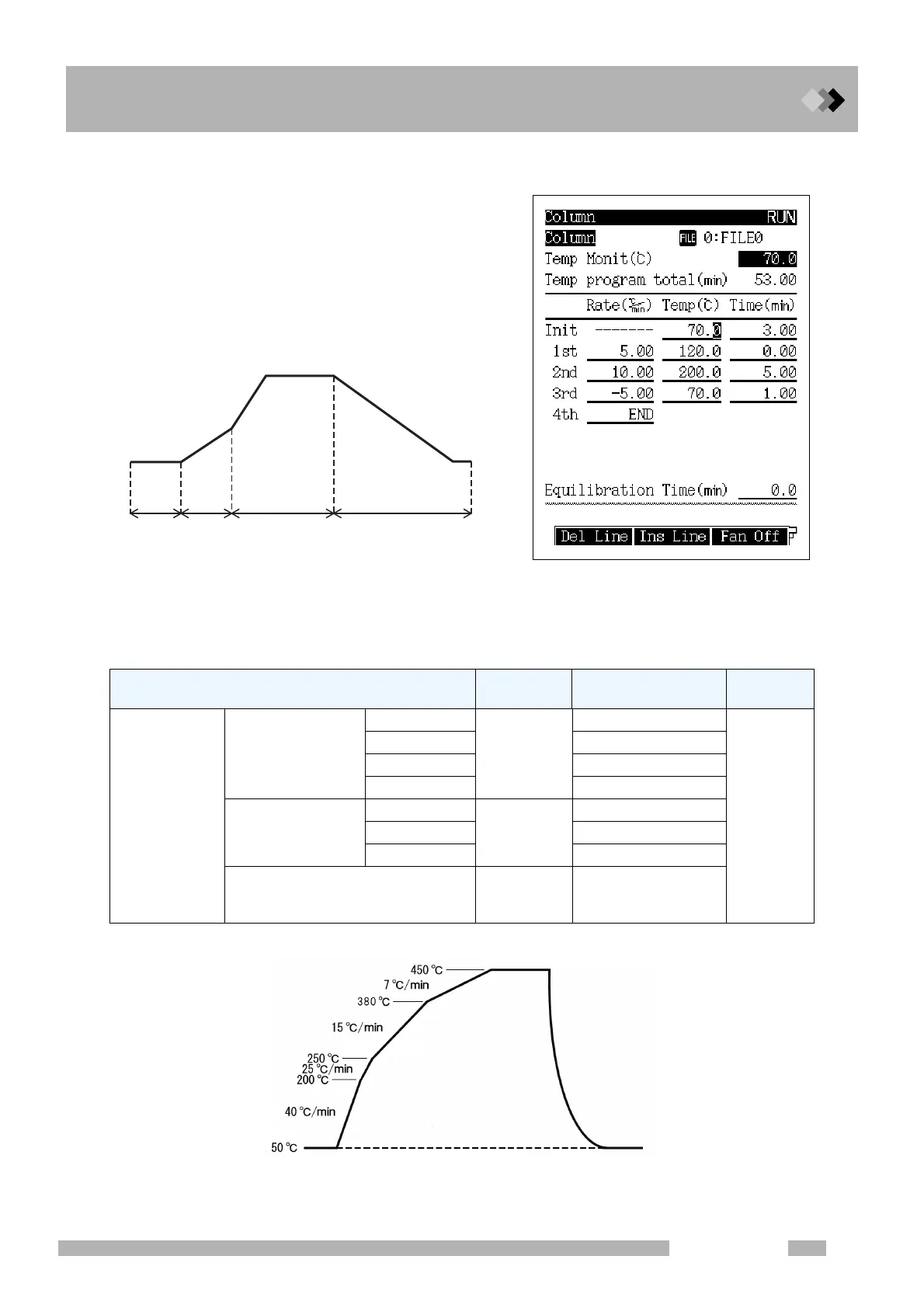

Shimadzu GC-2010 Plus User Manual

11 Creating an Oven Temperature Program
11.2 Temperature Programs
109
GC-2010 Plus
Multiple-ramp temperature program (with temp increase /decrease)
Q Allowable temperature settings and ranges for temperature programs
Fig. 11.2.4 Example of column oven temperature increase/decrease curve
Fig. 11.2.3 Temperature program (Example 3)
Item Set Range Control Range
Default
value
Program rate
Heating
Normal oven
(100 V)
Up to 200 °C
0−250
°C/min
0−40 °C/min
0 °C/min
Up to 250 °C 0−25 °C/min
Up to 380 °C 0−15 °C/min
Up to 450 °C 0−7 °C/min
Heating
High power oven
(230 V)
Up to 200 °C
0−250
°C/min
0−70 °C/min
Up to 350 °C 0−50 °C/min
Up to 450 °C 0−30 °C/min
Cooling
−250−0
°C/min
Differ from the room
temperature or the
oven temperature.
Initial
temperature
1st
stage
2nd
stage
3rd
stage
70 ºC(1 min)
70 ºC(3 min)
200 ºC(5 min)
120ºC(0 min)
-5 ºC/min
10ºC/min
5ºC/min

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
