2 Installation
2.2 Component description
12
GC-2010 Plus

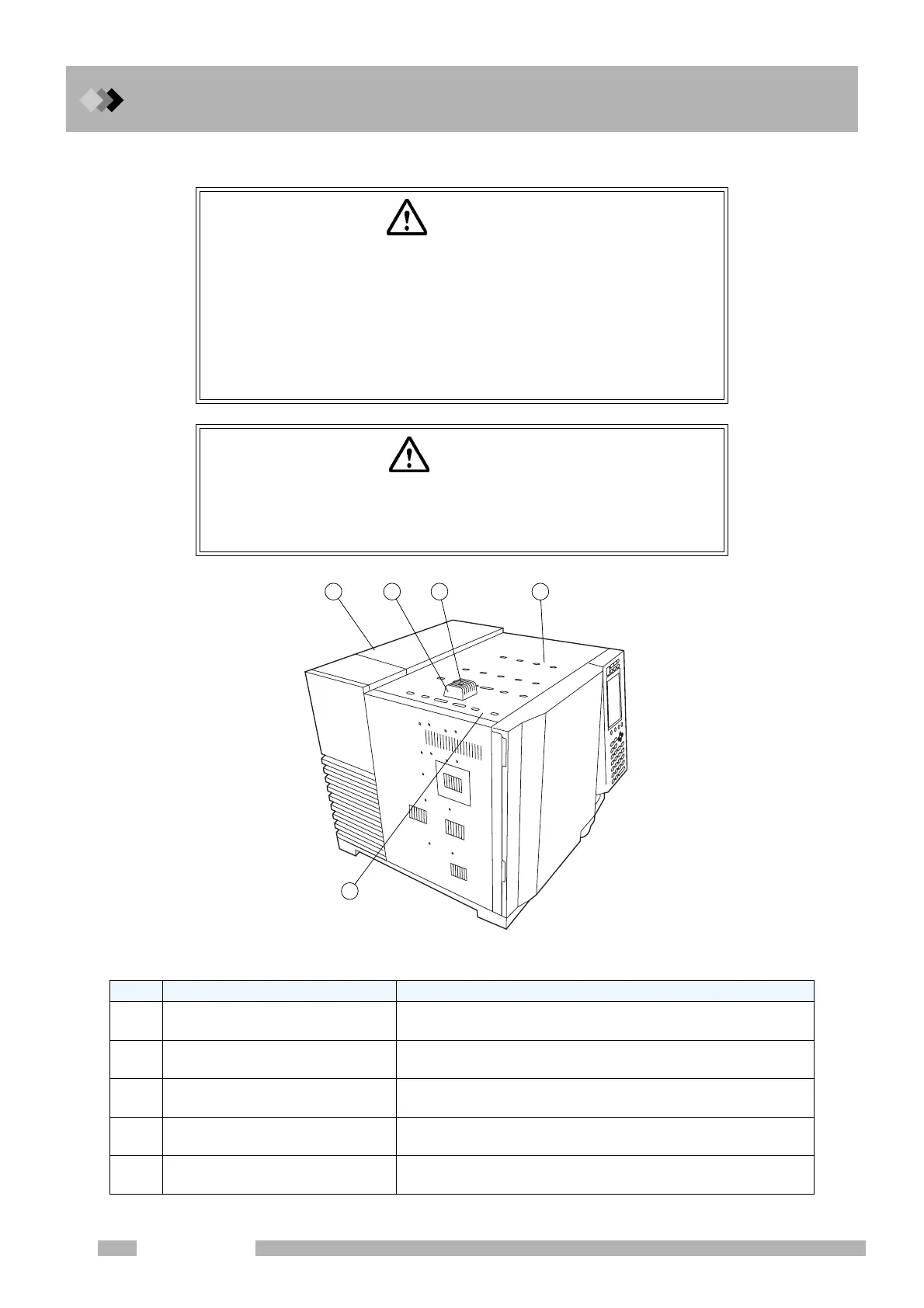

Q Entire unit
Fig. 2.2.4
WARNING
HIGH VOLTAGE
Danger of electrical shock.
Only qualified service personnel may remove the side covers.
HIGH TEMPERATURE
Danger of burns. Never touch the top cover, the injection ports and
d e t e c t o r s ------- w h i l e t h e y a r e h o t .
CAUTION
All the GC unit covers (including the INJ/DET covers, carrier and detector
gas controller covers) are essential to the optimal performance of the GC-
2010 Plus. Ensure that these covers are in place when the GC is in use.
No. Name Description
1 Injection port
Samples are injected into this port, which can become
extremely hot.
2 Injection port cover
This cover becomes extremely hot.
It protects you from the heat of the injection port.
3 Detector
The detector is located under the INJ/DET cover. The detector
can become extremely hot.
4 INJ/DET cover
Lift up this cover to remove it. Keep the cover closed during
operation.
5
Carrier and detector gas controller
cover
Houses AFC, APC and manual flow controller.
Open and lift up this cover to remove it.
5
4
312
To Next Page
