Shimadzu GC-2010 Plus User Manual

18 Maintenance and Inspection
18.9 Inspection and Maintenance: FID
306
GC-2010 Plus
Q Removing the FID
Remove the FID parts using the following procedure.

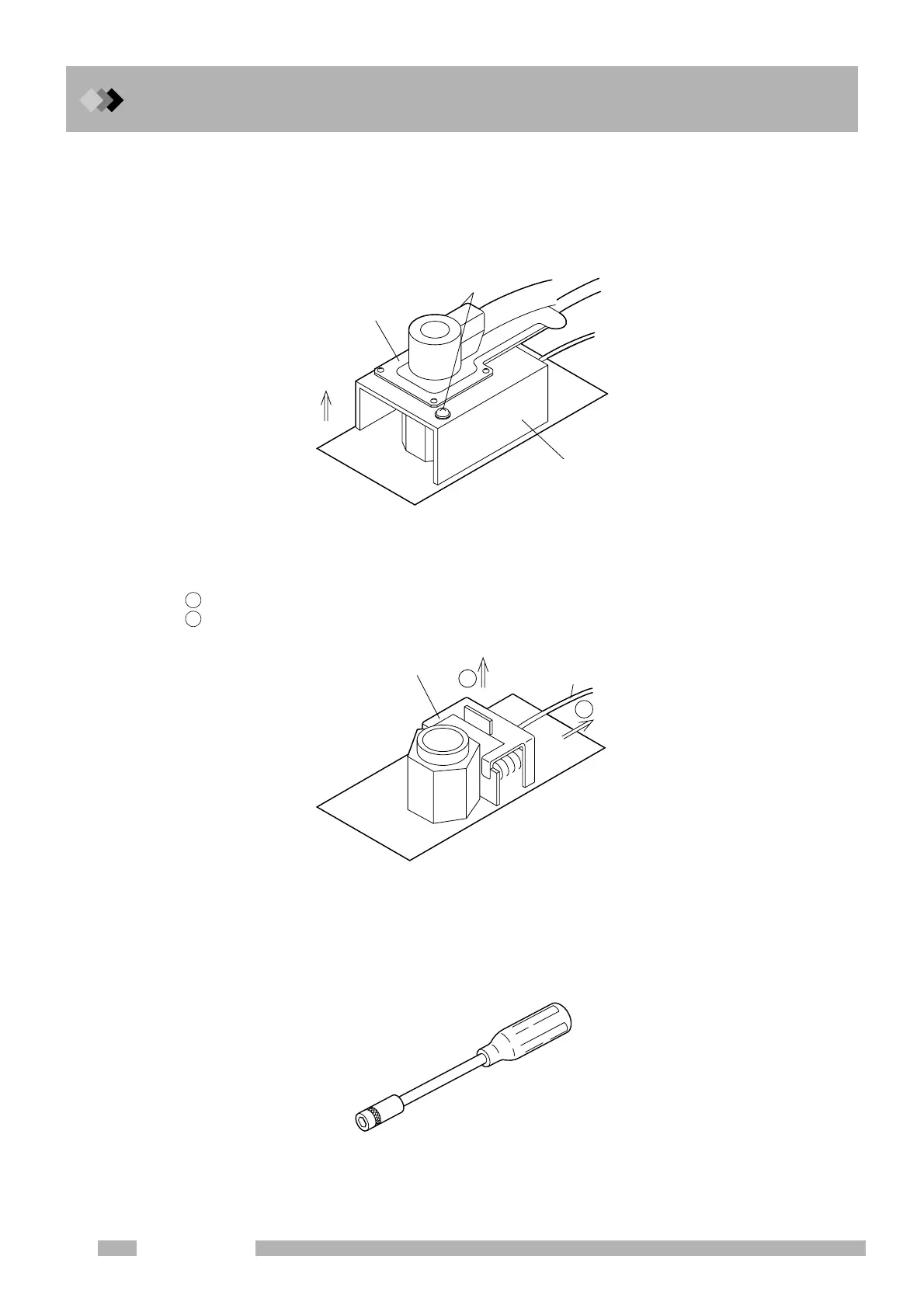

(1) Removing the igniter and the FID collector
The igniter is integrated into the FID collector. Remove them together. Loosen and
remove the two collector screws. Lift the collector and its screws up at the same time.
Fig. 18.9.3 Removing igniter and FID collector
(2) Removing the FID high voltage unit
1 Lift the high voltage plate up.
2 Then pull the high voltage cable and its spring out horizontally as shown in Fig 18.9.4.
Fig. 18.9.4 Removing the FID high voltage unit
Q Removing the FID jet
Remove the FID jet using a hexnut screwdriver.
Fig. 18.9.5 Hexnut screwdriver (option, part No. 670-18800)
Screws
Collector
Support plate
Up
High-voltage plate
1
High-voltage cable
2

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
