Shimadzu GC-2010 Plus User Manual

2 Installation
2.5 Power supply and wiring
17
GC-2010 Plus

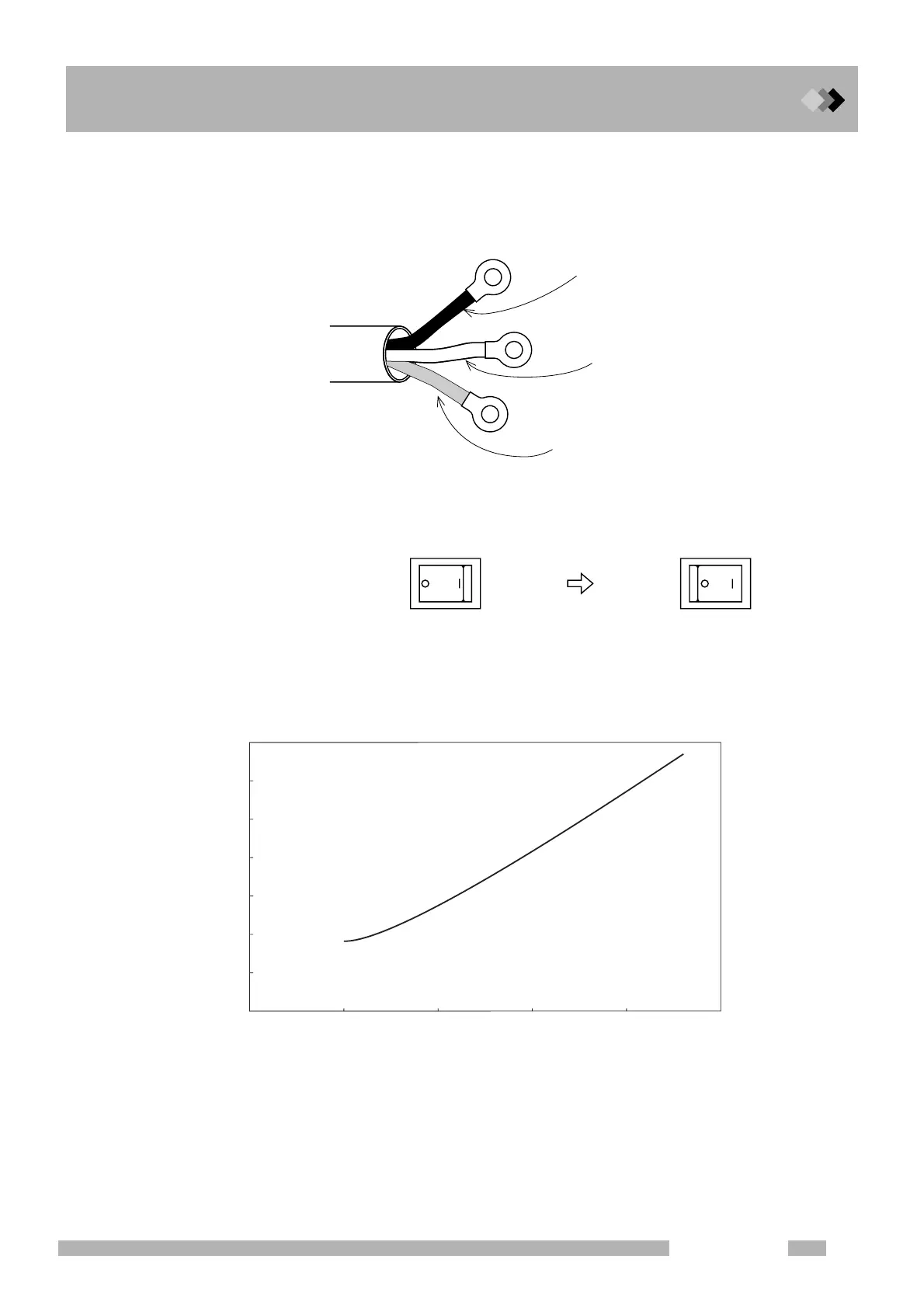

The power cable for 115 V model is color-coded as follows.
Black ... Connected to HOT of AC line.
White ... Connected to NEUTRAL of AC line.
Green ... Grounding (GROUND)
Fig. 2.5.2 Power cable
Q Symbol conventions
~ : AC
○ : Off, Open
｜ : On, Close
Q Heating energy generation
The following graph shows the heating values generated by the unit.
Fig. 2.5.3
Black
White
Green
Power cable
ON status
Power switch
OFF status
0
0
0.5
1
1.5
2
2.5
3
3.5
100 200 300 400
Temperature (ºC)
Heat generation (×10
6
J/hour)

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
