Shimadzu GC-2010 Plus User Manual

2 Installation
2.7 Connecting external device cables
28
GC-2010 Plus
Q Connecting the Chromatopac signal cable
Use the Chromatopac signal cable to send detector analog signals to the Chromatopac.
Connect the 4-PIN signal cable to the connector (Ch1 or Ch2) on the rear panel. The START
signal between the GC and Chromatopac is communicated through this signal cable.
Therefore, there is no need to connect the START OUT terminals on the GC or the
Chromatopac.

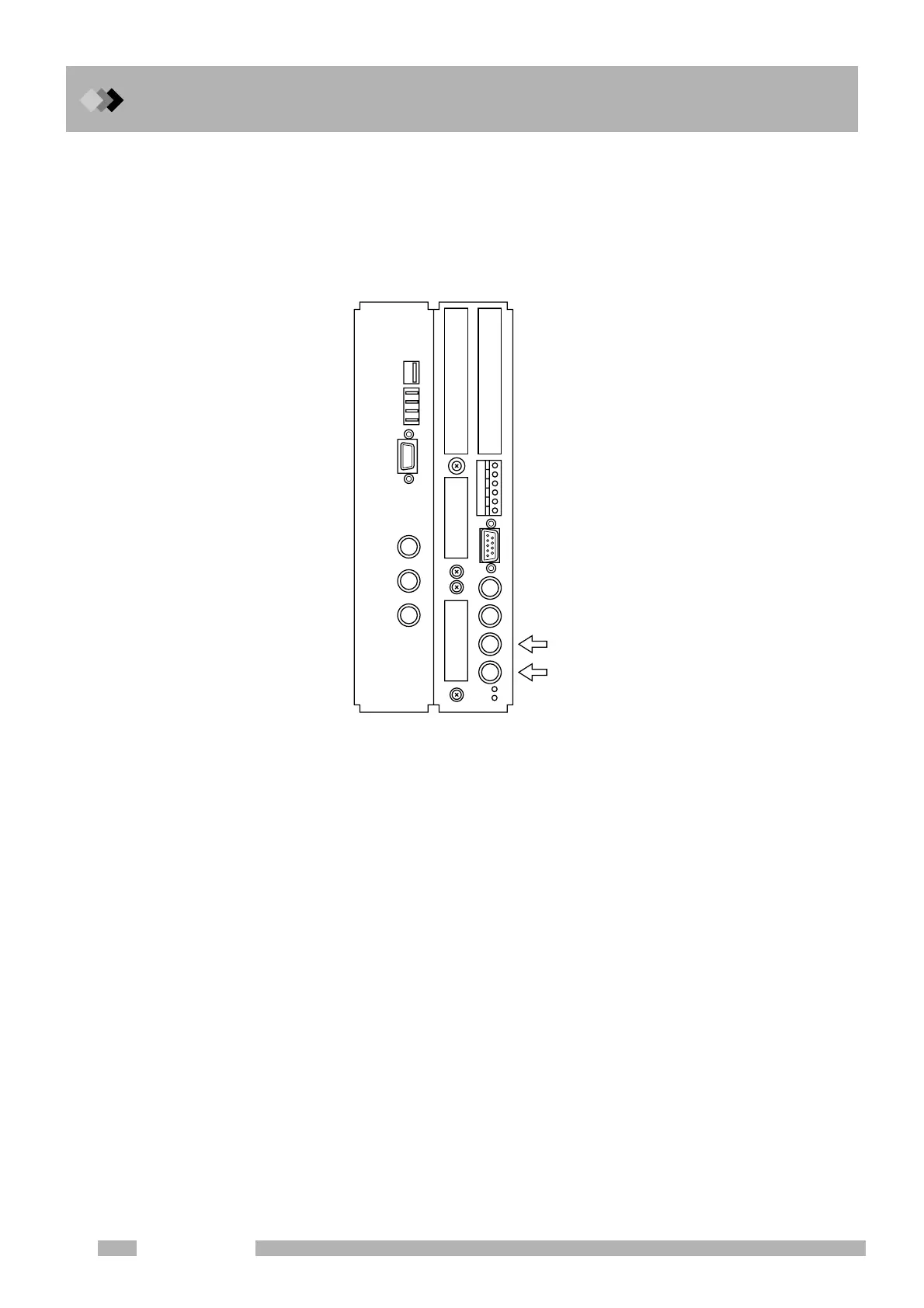

Fig. 2.7.2 Connecting the Chromatopac signal cable
ch1
ch2

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
