Shimadzu GC-2010 Plus User Manual

2 Installation
2.7 Connecting external device cables
32
GC-2010 Plus
Q Connecting the relay terminals
Connect the 8-PIN relay cable (P/N 221-48568-91).
The relay terminal can be opened and closed by EVENT91 and 92. (Refer to “16.3 Time
Program”.)

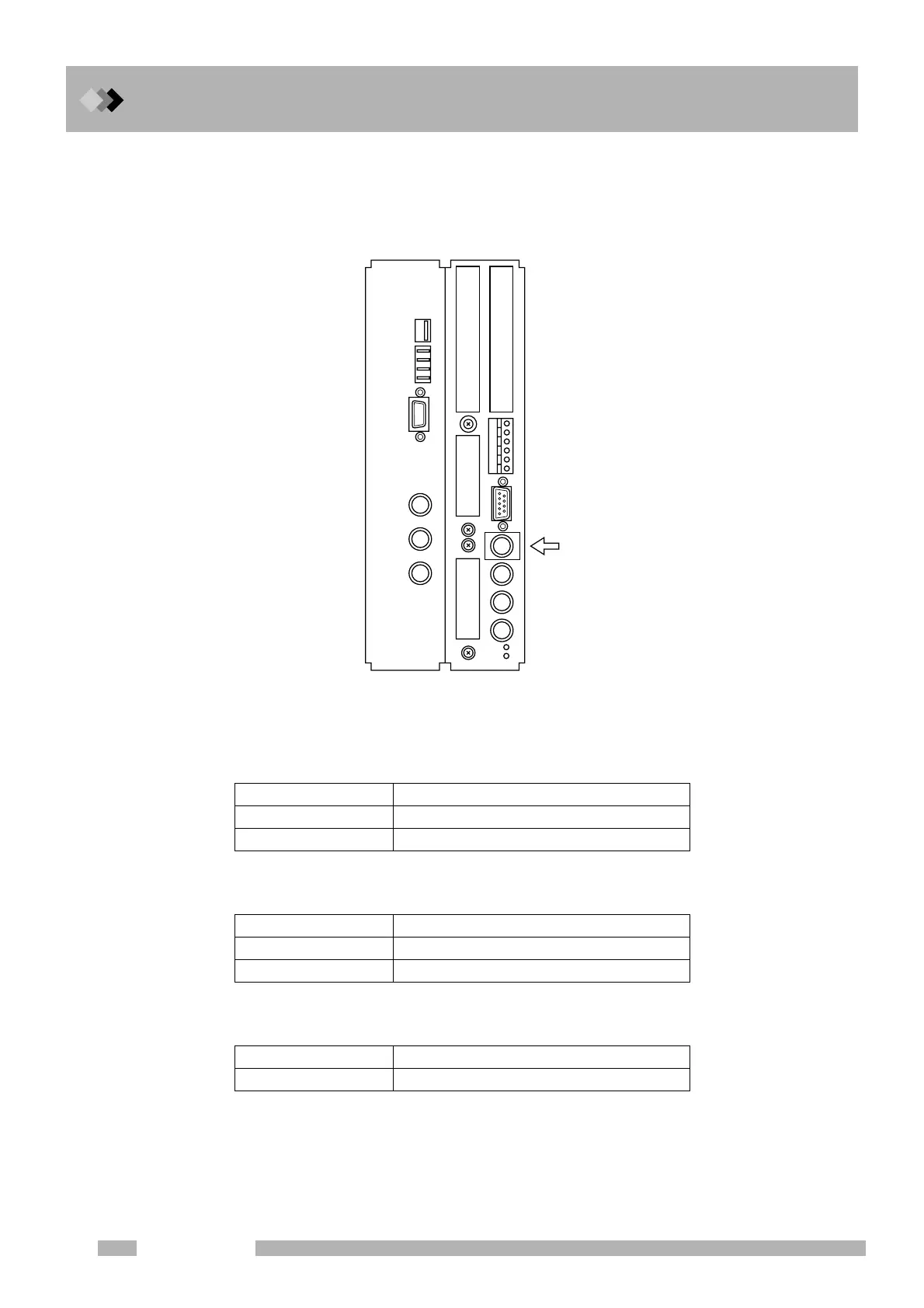

Fig. 2.7.6
EVENT91
EVENT92
OPTION
Pin No.1 red COM
Pin No.2 white NC Conducted to Pin No. 1 COM at EVENT-91
Pin No.3 black NO Conducted to Pin No. 1 COM at EVENT91
Pin No.4 yellow COM
Pin No.5 blue NC Conducted to Pin No. 4 COM at EVENT-92
Pin No.6 black NO Conducted to Pin No. 4 COM at EVENT92
Pin No.7 brown (GROUND)
Pin No.8 gray (GROUND)

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
