CONVEYOR ENHANCEMENTS
Lubricate Conveyor Drive Chain
6-116 Aquastorm™ Series Options Guide Rev. 1
6

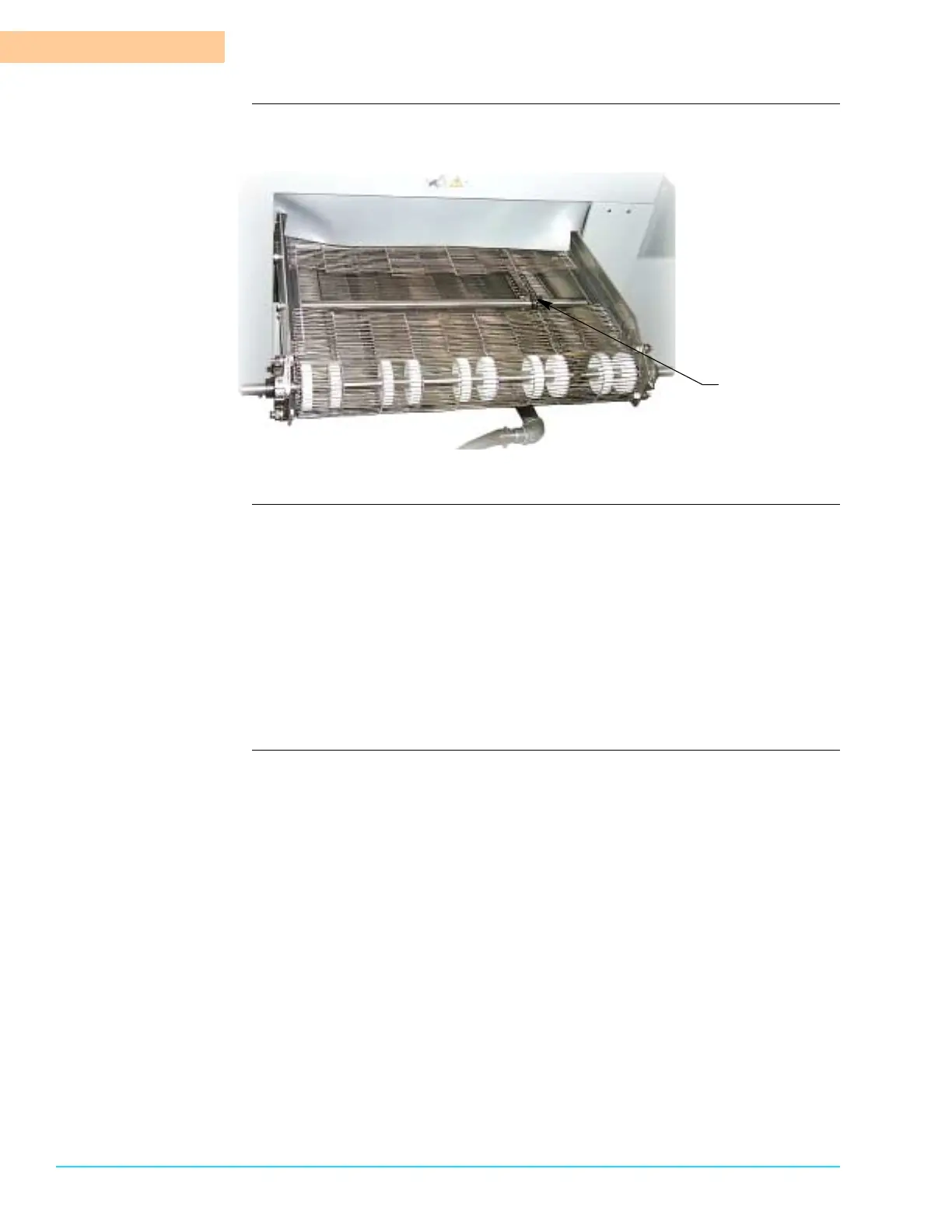

Photographs Figure 6–25 shows the upper chain with the conveyor belt separated for easier
access.
Figure 6–25
Procedure Use the following steps to access the upper chain:
1. Shut down Aquastorm™ system operation.
2. Ensure system power is Off.
3. Located the upper chain through the top of the exit end conveyor.
4. Separate the conveyor belt to provide easier access to the upper chain. See
Wire Belt Splicing Steps on page 125.
5. Use the high temperature lubricant and rub a light layer of grease on the drive
chain.
6. Reconnect the conveyor belt. See Wire Belt Splicing Steps on page 125.
Upper Chain From
Drive Shaft to
Turn Shaft
