HURRICANE JETS™ AND PUMPS
Reinstall Lower Nozzle
2-9317-600-00-0 Aquastorm™ Series Options Guide 11-219
Reinstall Lower Nozzle
Introduction After cleaning the nozzle, orifice, manifold, and rear bulkhead reinstall the lower
Hurricane Jet™ nozzle.
Safety To avoid equipment damage observe the following:
ATTENTION
Ensure all white, Teflon® gaskets are in good condition. Replace if necessary. The
Hurricane Jet™ will not function properly without the gasket.

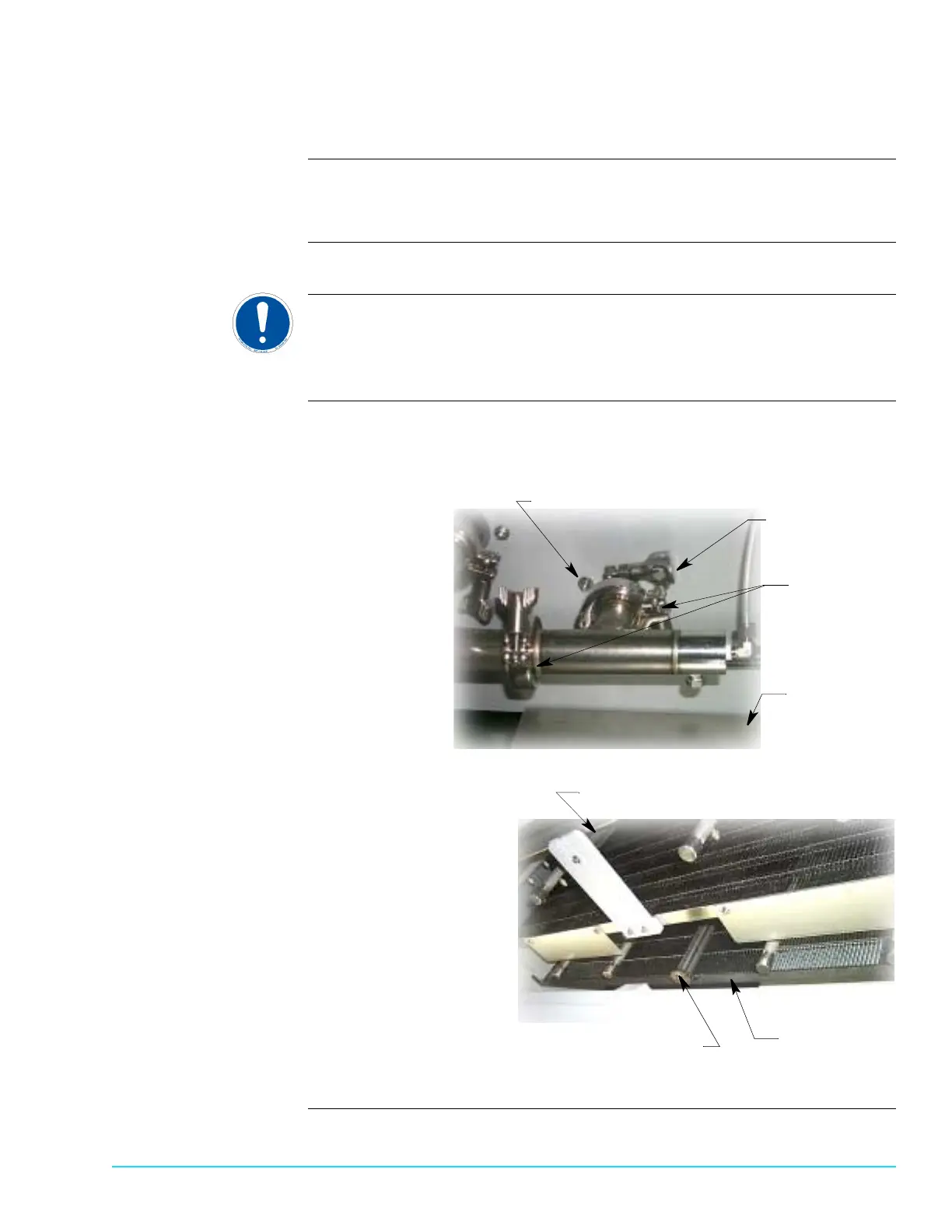

Photograph Figure 11–18 shows the rear plumbing assembly connections for the lower
Hurricane Jet nozzle assembly. Figure 11–19 shows the lower nozzle from the
front.
Figure 11–18
Figure 11–19
M5 Nut [Two (2) Places]
Manifold
Quick Clamp
Tank Lid
Lower Plumbin
Quick Clamps
Lower Conveyor
Upper Hurricane Jet™ Nozzle and Bracket
Lower Hurricane Jet™ Nozzle Return Rail
To Next Page
