Overview
11-200 Aquastorm™ Series Options Guide Rev. 1
11
Section A:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Description
Overview
Introduction The wash module on all Aquastorm™ systems, or rinse module on Aquastorm
200™ systems measures 122 cm (48 in.) and contains four (4) upper spray bars
and four (4) lower spray bars powered by a 5 hp pump. The wash and rinse
modules come standard with a 303 liter (80 gal.) tank, two (2) 16 kW immersion
heaters, and one (1) 189 L/min (50 gpm) filter.

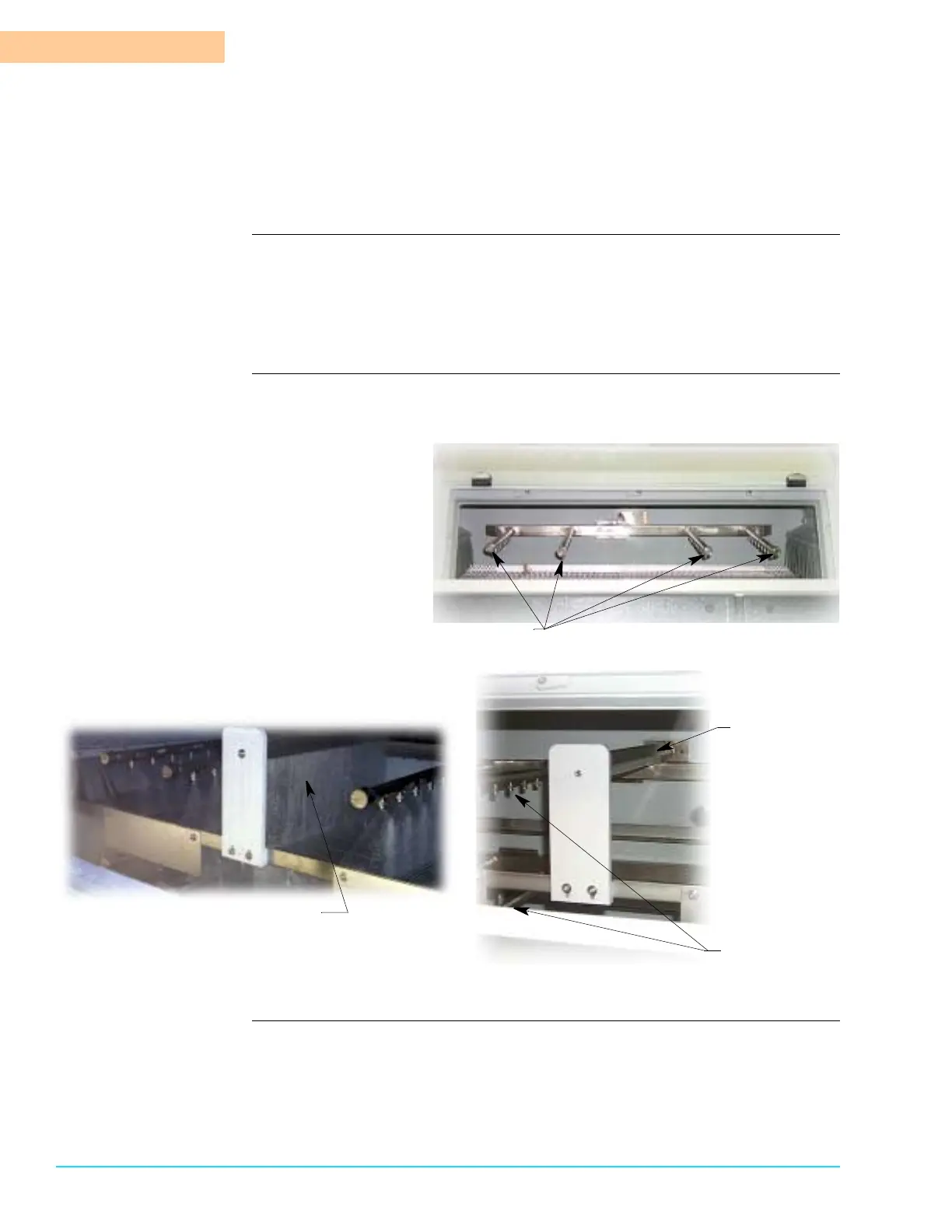

Photographs Figure 11–1 shows the standard wash/rinse spray nozzles. Figure 11–2 shows
the single Hurricane Jet™ nozzle location and operation.
Figure 11–1
Figure 11–2
Spray Bars
Spray Bars
Hurricane Jet™
Hurricane Jet™ Spray Action
Nozzle Assembly
