Lubricate Conveyor Turn Shaft Bearing Blocks
2-9317-600-00-0 Aquastorm™ Series Options Guide 6-111
Lubricate Conveyor Turn Shaft Bearing Blocks
Introduction The standard conveyor turn shaft is located at the exit end of all Aquastorm™
systems.The conveyor turn shaft contains bearing blocks. Each bearing block
contains grease fittings that require quarterly maintenance.

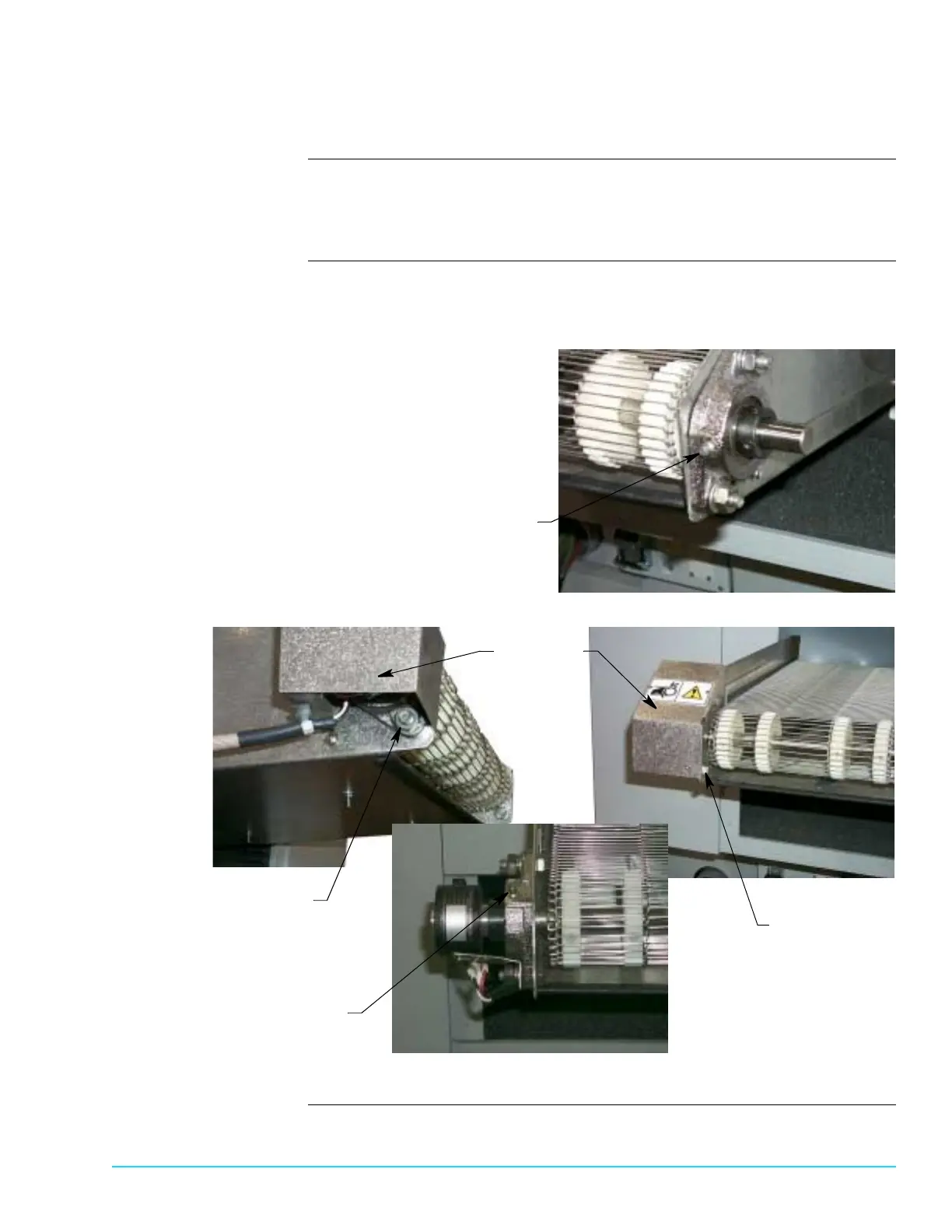

Photographs Figure 6–20 shows the conveyor turn shaft rear view and indicates the grease
point. Figure 6–21 shows the conveyor turn shaft front view with safety cover,
and indicates the grease point after removing safety cover.
Figure 6–20
Figure 6–21
Grease Point
Grease Point
Safety Cover
Mounting Bolt
Safety Cover
Mounting Nut
Safety Cover
