Additional Drying Units
2-38 Aquastorm™ Series Options Guide Rev. 1
2
Section N:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dryer Add-On Modules
Additional Drying Units
Introduction The Aquastorm 100™ or 200™ systems can be configured with one (1) or two (2)
additional blower drying modules. The Aquastorm 90™ system can only be
configured with one (1) additional blower dyring module.Add-on dryer modules
can be configured as stand-alone units or mounted to the exit end of the machine
between the last dryer and the noise suppression hood. Each add-on dryer
requires its own separate exhaust connection and six (6) support legs.
Exhaust Requirements Each dryer module configuration requires one (1) additional and separate exhaust
port connection rated at 34 M
3
/min. @ 2.5 cm (1200 cfm).

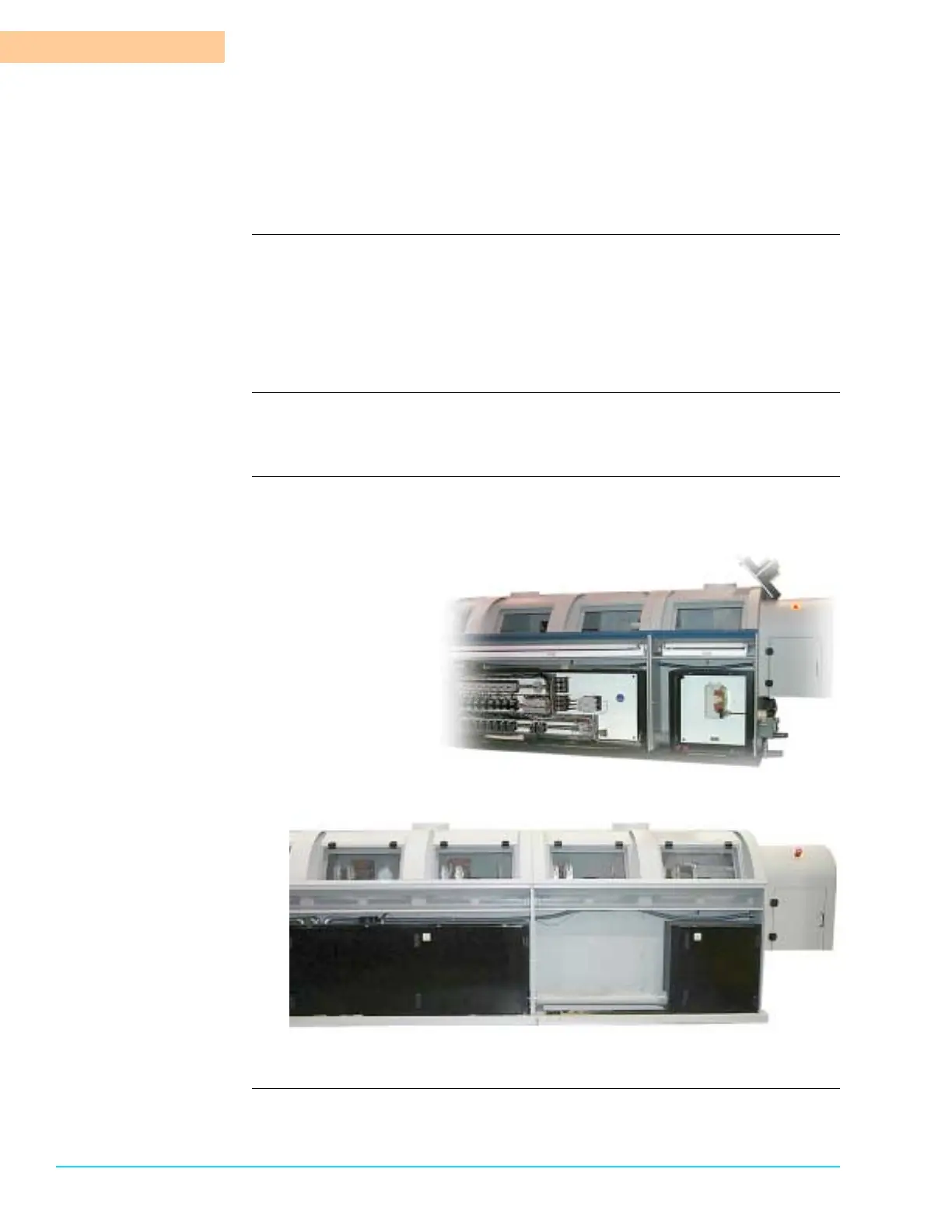

Photograph Figure 2–15 displays single add-on dryer unit with the electrical panels open.
Figure 2–16 shows dual add-on dryer unit with the electrical panels closed.
Figure 2–15
Figure 2–16
