HURRICANE JETS™ AND PUMPS
Remove Single/Upper Nozzle
11-212 Aquastorm™ Series Options Guide Rev. 1
11
Remove Single/Upper Nozzle
Introduction The single or upper wash or rinse Hurricane Jet™ periodically becomes clogged
with debris such as solder balls, polypropylene or CPVC particles, silicone and
other foreign debris. Ensure the system is turned Off, and all preparation steps are
complete. See Stop System Operation on page 211.
Safety To avoid equipment damage observe the following:
ATTENTION
Ensure all white, Teflon® gaskets are in good condition. Replace if necessary. The
Hurricane Jet™ will not function properly without the gasket.

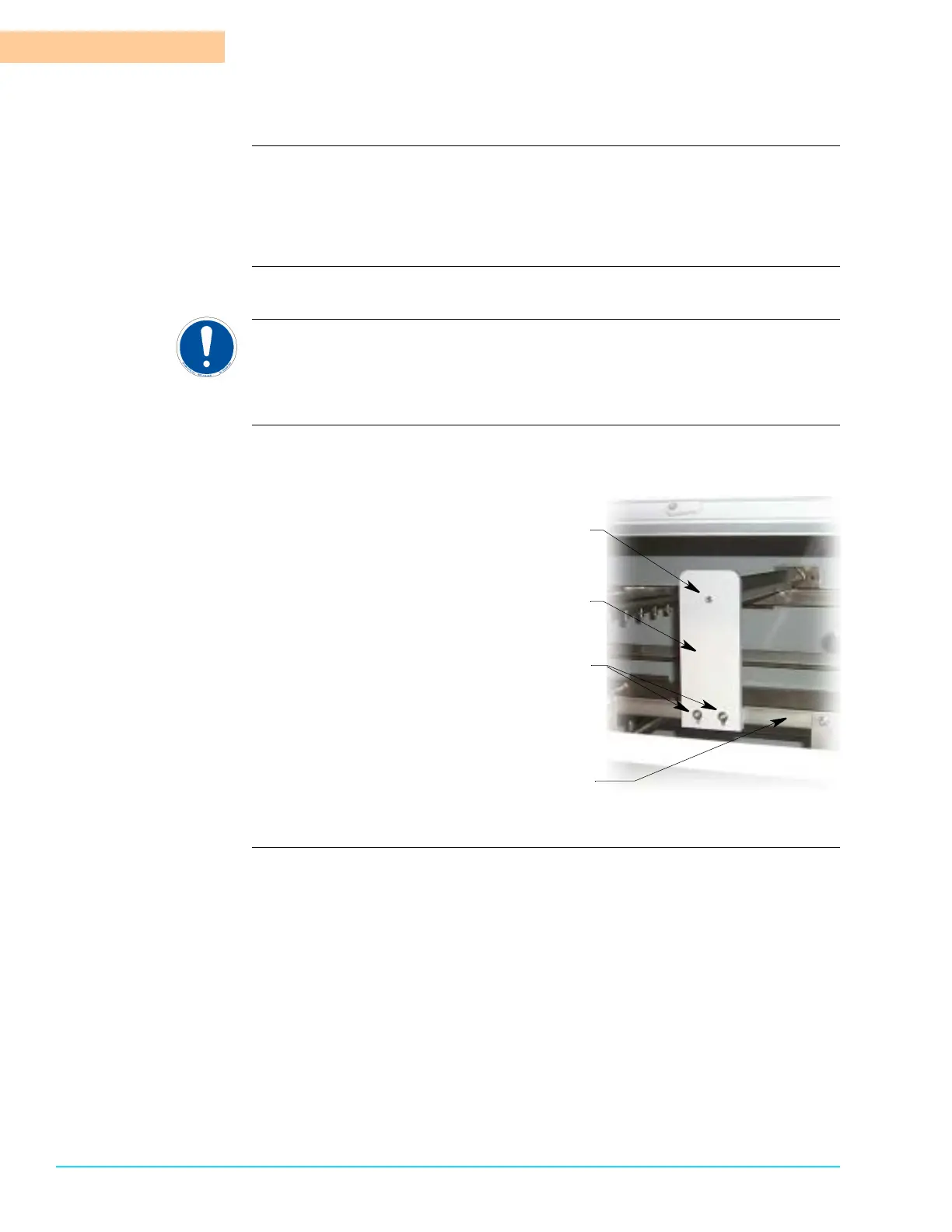

Photograph Figure 11–10 displays a close up view of an upper Hurricane Jet™ nozzle
assembly.
Figure 11–10
10-32 Cap Screw
M5 x 30 Flat Head Screws
Nozzle Support Bracket
Conveyor Rail
To Next Page
