DRYER MODIFICATIONS
Timer Configuration
2-9317-600-00-0 Aquastorm™ Series Options Guide 15-279
Timer Configuration
Introduction Access the compressed air On and Off timers. See Timer Access on page 278.
Tools Use the following tools to configure the compressed air timers.
• Small blade flat head screwdriver
• Phillips head screwdriver

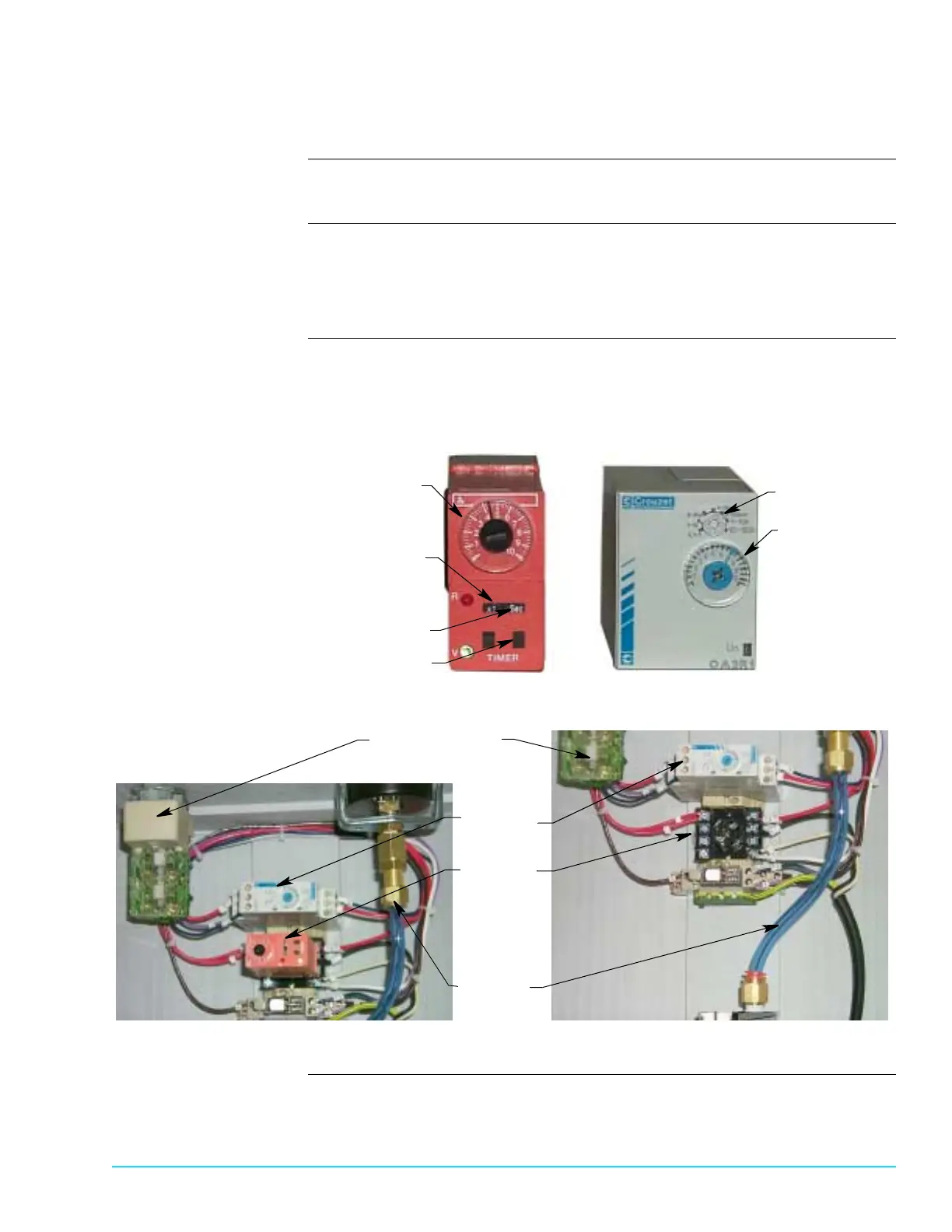

Photographs Figure 15–6 shows the compressed air On timer on the left and the compressed
air Off timer on the right. Figure 15–7 shows the control box inside connectors
and identifies the location of the timer units.
Figure 15–6
Figure 15–7
Timer On Dial
Multiplier
Min/Sec ID
Increment Setting
Timer Off Dial
Min/Sec Switch
Air On Timer Air Off Timer
On/Off Button Unit
Compressed
Air Gauge
and Tubing
Air On
Timer and
Unit Plug
Air Off
Timer Unit
To Next Page
