Sump Operation Curves
2-9317-600-00-0 Aquastorm™ Series Options Guide 17-337
Sump Operation Curves
Introduction The actual pumping speed of each sump pump is directly affected by the facility
electrical rating and the distance between the sump pump and the facility drain.
Refer to the following graphs to configure the installation site for optimum
operation.

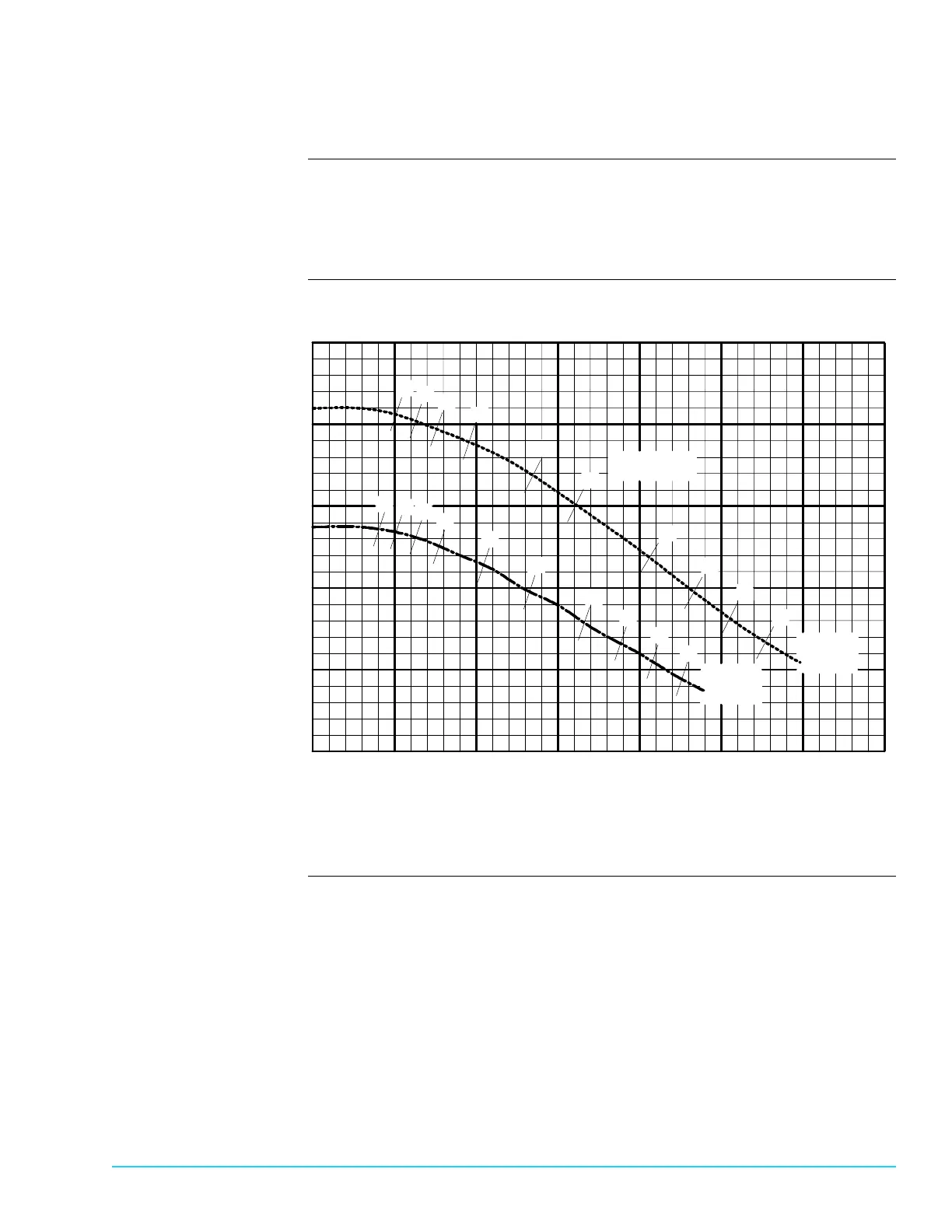

Graphs Figure 17–4 shows the operation graph for the standard ¾ HP sump pump unit.
Figure 17–4
50
40
30
20
10
010
Head (Ft.)
20 30 40 50 60 70
Flow (US gpm)
50 Hz
60 Hz
% Efficiency
30
35
40
45
50
50
45
40
35
30
35
40
45
50
50
45
40
35
30
30
