Lubricate CheckMate™ Drive Shaft Bearing Blocks
2-9317-600-00-0 Aquastorm™ Series Options Guide 6-119
Lubricate CheckMate™ Drive Shaft Bearing Blocks
Introduction The CheckMate™ conveyor drive motor is located in the rear prewash section at
the entrance end of all Aquastorm™ systems.The CheckMate™ conveyor drive
shaft contains bearing blocks. Each bearing block contains grease fittings that
require quarterly maintenance.

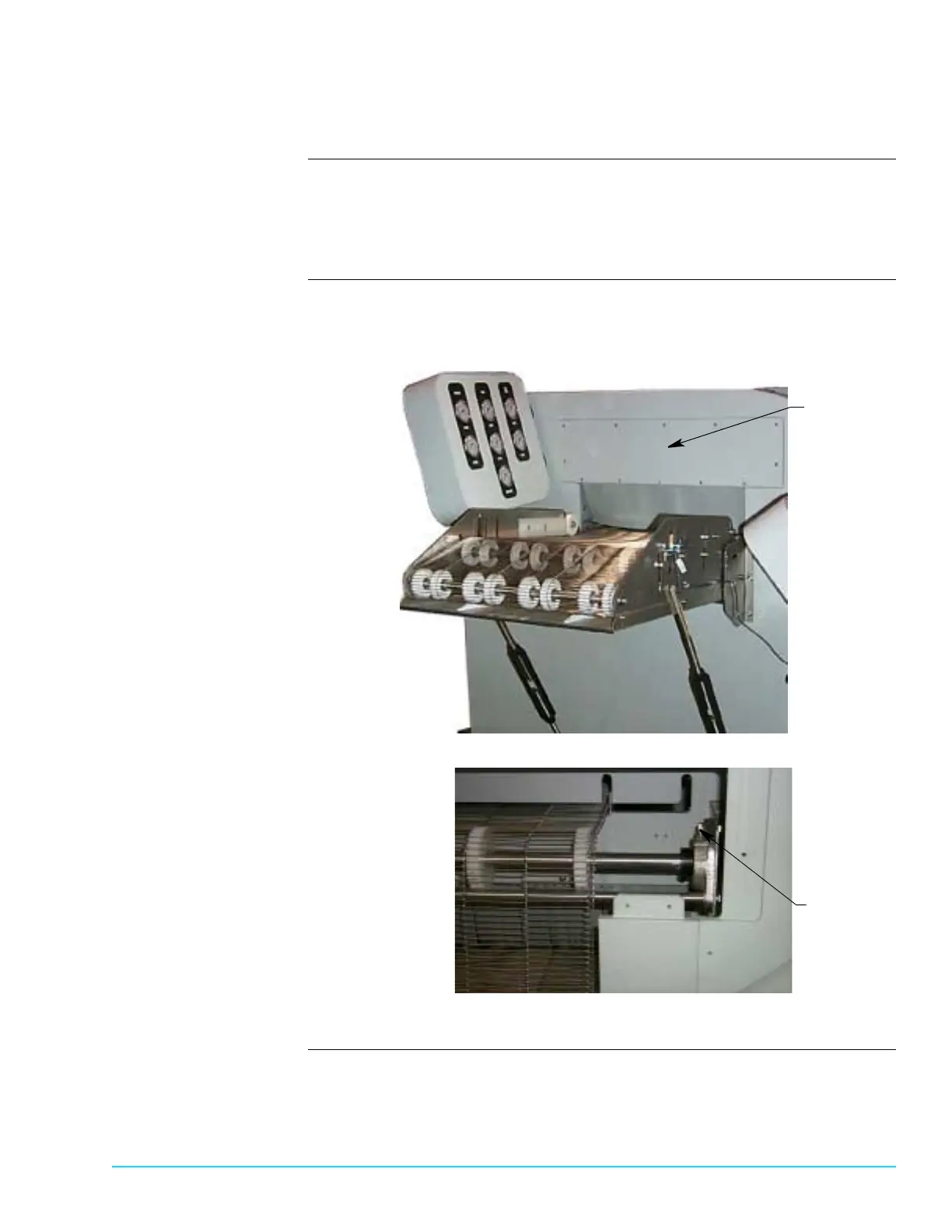

Photographs Figure 6–28 shows the Aquastorm™ system entrance end safety cover. Figure 6–
29 shows the CheckMate™ conveyor drive shaft entrance end view and indicates
the grease point.
Figure 6–28
Figure 6–29
Entrance End
Safety Cover
Grease Point
