SUMP PUMP
Drain Tank and Check Sensors
2-9317-600-00-0 Aquastorm™ Series Options Guide 17-341
Drain Tank and Check Sensors
Introduction During routine quarterly maintenance drain the effluent from the sump pump tank
and clean the tank and float switches.
Safety To ensure personal safety and avoid equipment damage observe the following:
ATTENTION
If any damage is discovered or the sump pump fails to operate properly,
discontinue use and contact Electrovert technical support.

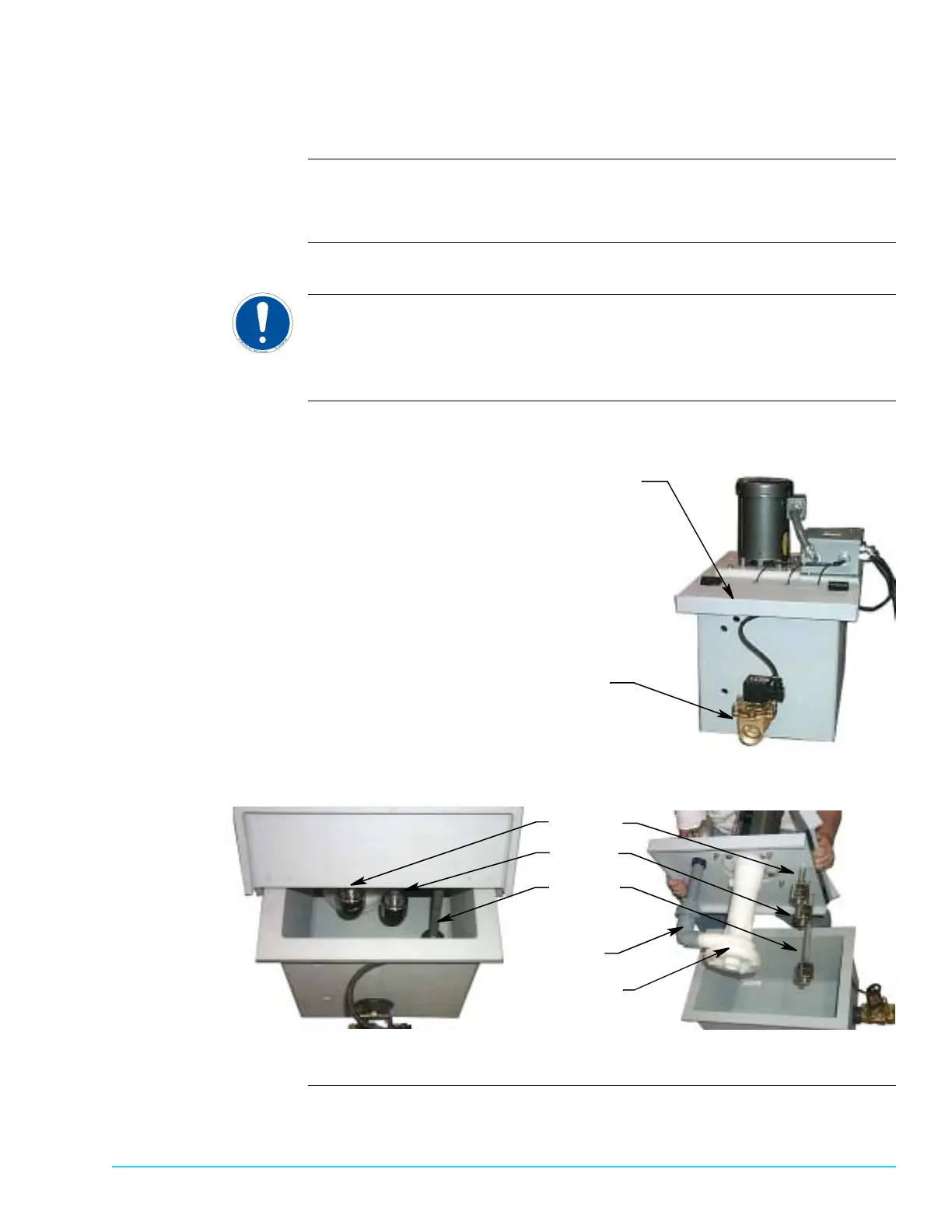

Photographs Figure 17–6 shows the ¾ HP sump pump tank. Figure 17–7 shows the float
switch assemblies in the tank and the tank lid removed.
Figure 17–6
Figure 17–7
Sump Pump Tank
Access Lid
Brass Solenoid
Valve Drain
Connector
Float Switch Assemblies
Low Level
Mid Level
High Level
Lower Pump
Assembly
Plumbing
Connection
