Access Bag Filter
2-9317-600-00-0 Aquastorm™ Series Options Guide 13-243
Access Bag Filter
Introduction At the top of the Aquastorm™ system, open the bag filter access door. Release
the bag filter lid to access the filter and mesh basket.

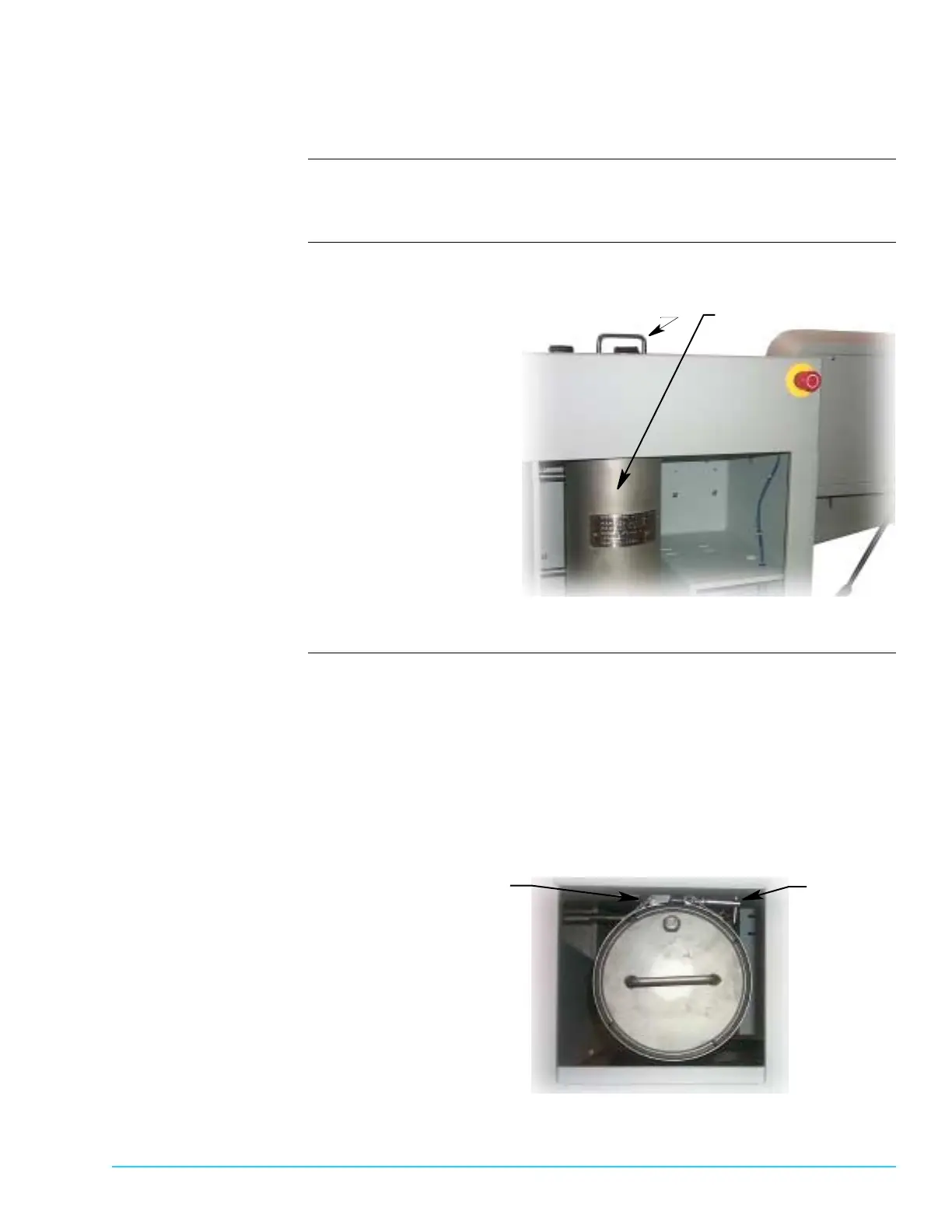

Photograph Figure 13–2 displays the wash module bag filter cylinder and lid location.
Figure 13–2
Procedure Refer to the following steps to access the bag filter:
1. Shut down Aquastorm™ system operation.
2. Turn the ball valve to the open position to drain any water from the filter cyl-
inder. Refer to Figure 13–2 on page 243 as required.
3. Ensure system power is Off.
4. Perform Lock Out/Tag Out steps. See Attach Facility Lock-Out Tag-Out
Device on page 11.
5. Locate and open the bag filter access door on the top rear of the Aquastorm™
system. The bag filter cylinder lid is latched into place with a lock ring.
Bag Filter Cylinder
Bag Filter Access Door
Location and Handle
Lid Lock Ring
Ring Lock Nu
