FLOW METERS
Remove/Replace Flow Meter
2-9317-600-00-0 Aquastorm™ Series Options Guide 7-147
Remove/Replace Flow Meter
Introduction Replace flower meter pipe section in the unlikely event of a flow meter failure.
Tools and materials Use the following tools and materials to complete this upgrade installation:
• Flat head screwdriver
• Phillips screwdriver
• Channel lock pliers
Safety To ensure personal safety and avoid equipment damage observe the following:
ATTENTION
A qualified maintenance person with plumbing experience or an Electrovert
service person should install the flow meter.
ATTENTION
Water may be present in the plumbing lines. Be sure to have shop towels
available to wipe up possible spills.

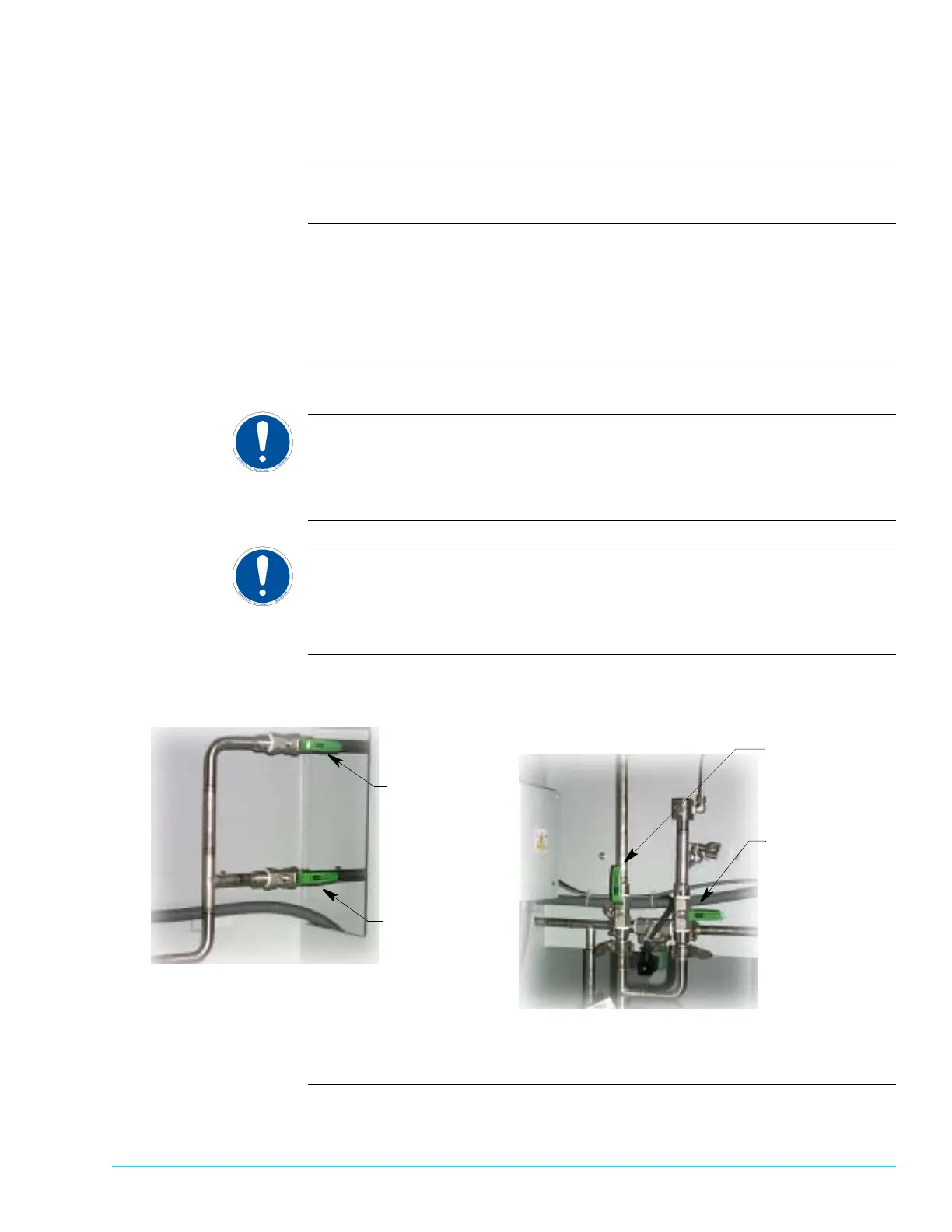

Photographs Figure 7–8 shows prewash and final rinse plumbing flow control ball valve
locations and positions.
Figure 7–8
Upper Spray Bar
Flow Control Valve
Lower Spray Bar
Flow Control Valve
Full Open Position
Full Open Position
Upper Spray Bar
Flow Control Valve
Lower Spray Bar
Flow Control Valve
Full Open Position
Full Closed Position
Prewash Plumbing
Final Rinse Plumbing
To Next Page
