FLOW METERS
Remove/Replace Flow Meter
7-148 Aquastorm™ Series Options Guide Rev. 1
7
Procedure Use the following steps to stop machine operation:
1. Shut down Aquastorm system operation.
2. Ensure system power is Off.
3. Perform Lock Out/Tag Out steps. See Lock-Out Tag-Out on page 10.
4. Remove the rear panels.
5. Access the rear wash or final rinse section.
6. Turn upper and lower spray bar flow control ball valves to the full closed posi-
tion to minimize possible water spill.

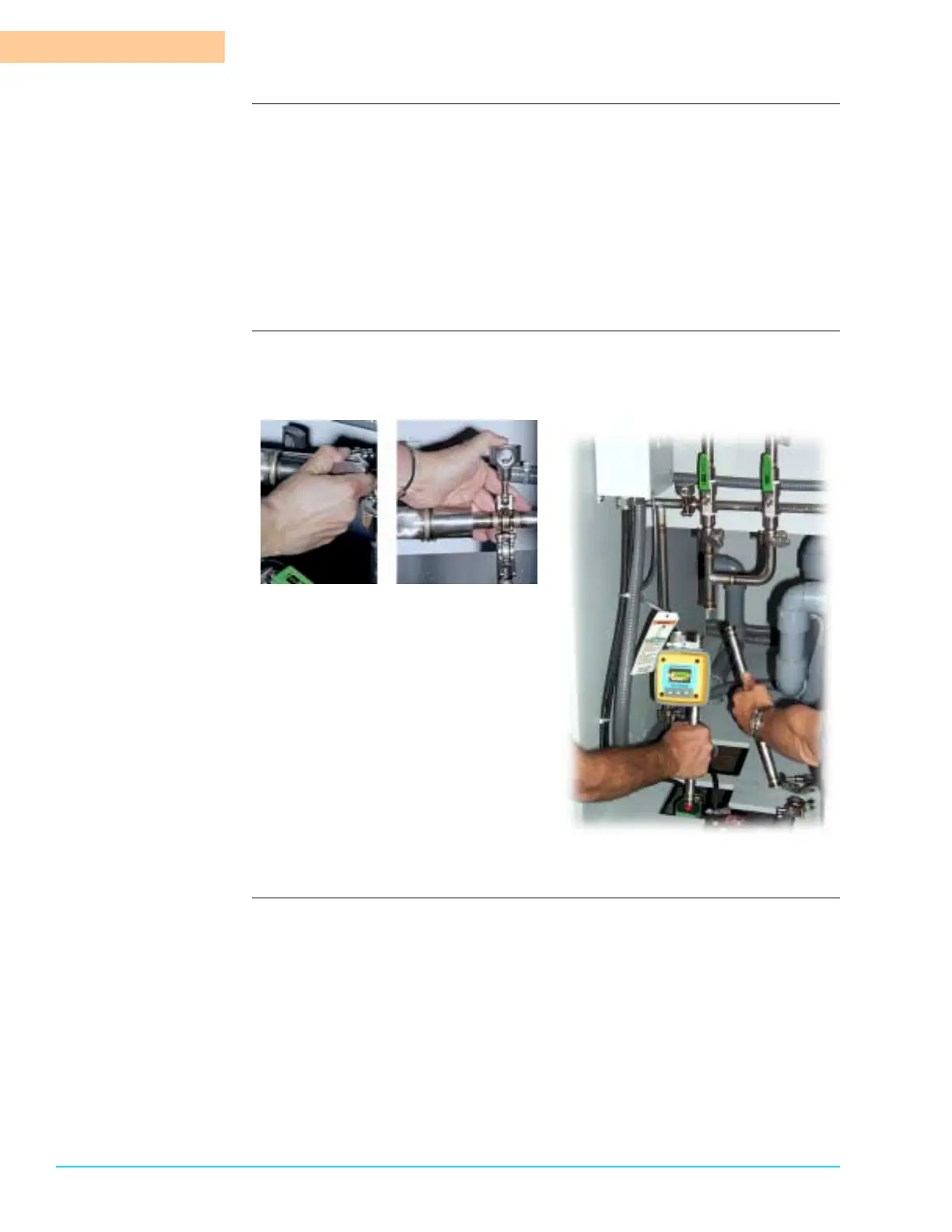

Photographs Figure 7–9 shows how to open and remove a quick release clamp and the
process of removing the straight pipe and replacing it with the flow meter
mounted pipe.
Figure 7–9
