Reinstall Upper/Single Nozzle
11-214 Aquastorm™ Series Options Guide Rev. 1
11
Reinstall Upper/Single Nozzle
Introduction After cleaning the nozzle and orifice, reinstall the upper Hurricane Jet™ nozzle.
Safety To avoid equipment damage observe the following:
ATTENTION
Ensure all white, Teflon® gaskets are in good condition. Replace if necessary. The
Hurricane Jet™ will not function properly without the gasket.

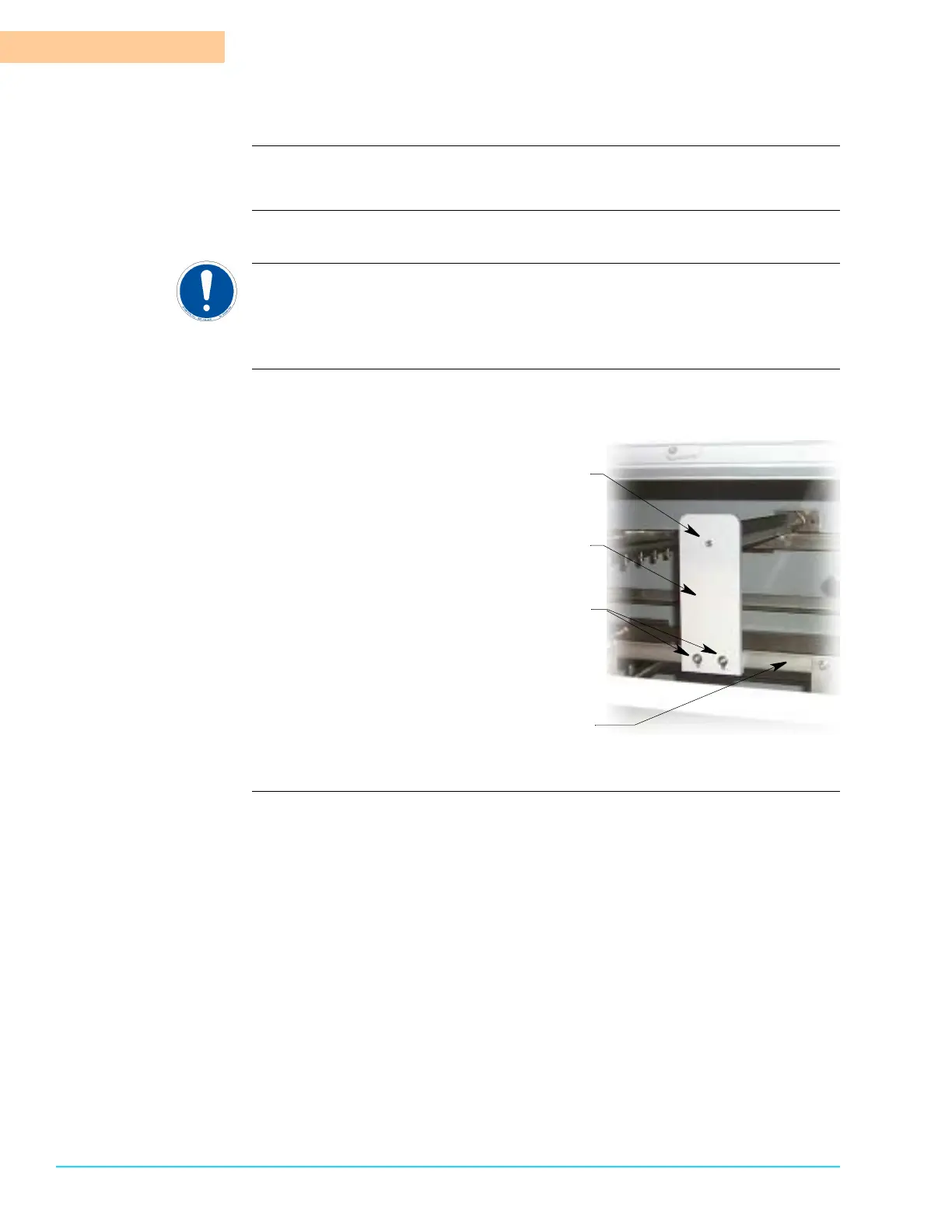

Photograph Figure 11–12 displays a close up view of an upper Hurricane Jet™ nozzle
assembly.
Figure 11–12
10-32 Cap Screw
M5 x 30 Flat Head Screws
Nozzle Support Bracket
Conveyor Rail
