DRYER ADD-ON MODULES
Blower Air Filters
14-270 Aquastorm™ Series Options Guide Rev. 1
14
Blower Air Filters
Introduction Blower air filters remove dirt and debris that passes through the air lines. Periodic
blower air filter replacement ensures the dryer air remains clean and free of dirt
and debris.
Safety To ensure personal safety and avoid equipment damage observe the following:
CAUTION
Qualified maintenance staff should perform the following cleaning steps. If any
damage to the blowers, motors, air hoses, filter mounts, or plumbing is noted,
contact Electrovert Customer Service.
Tools and materials Use the following tools and materials to repair/replace a blower filter:
• Flat head screwdriver
• Replacement blower air filter
• 13 mm hex head open wrench
• Crescent wrench

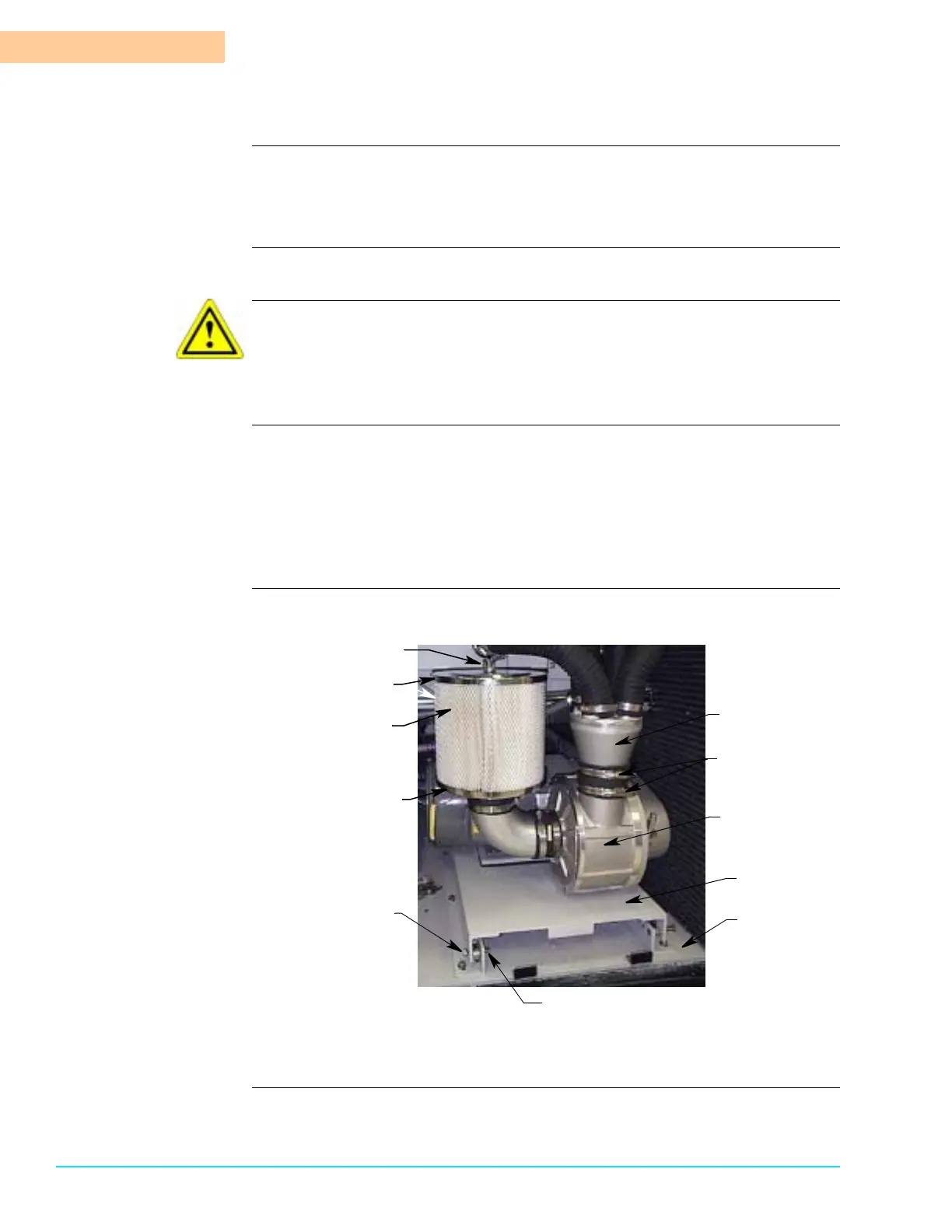

Photograph Figure 14–8 identifies the location and parts of the blower filter assembly.
Figure 14–8
Slide Out
Slide Out
Slide Out Tray
Machine Floor
Bulkhead
Tray Nut
Tray Bolt
Blower Filter
Filter Housing Top
Filter Housing Bottom
Wing Nut
Hose Clamps
Blower Manifold
Assembly
Blower Motor
Two (2) Places
Two (2) Places
To Next Page
