DETERGENT INJECTION
Saponifier Delivery Set Up
9-176 Aquastorm™ Series Options Guide Rev. 1
9

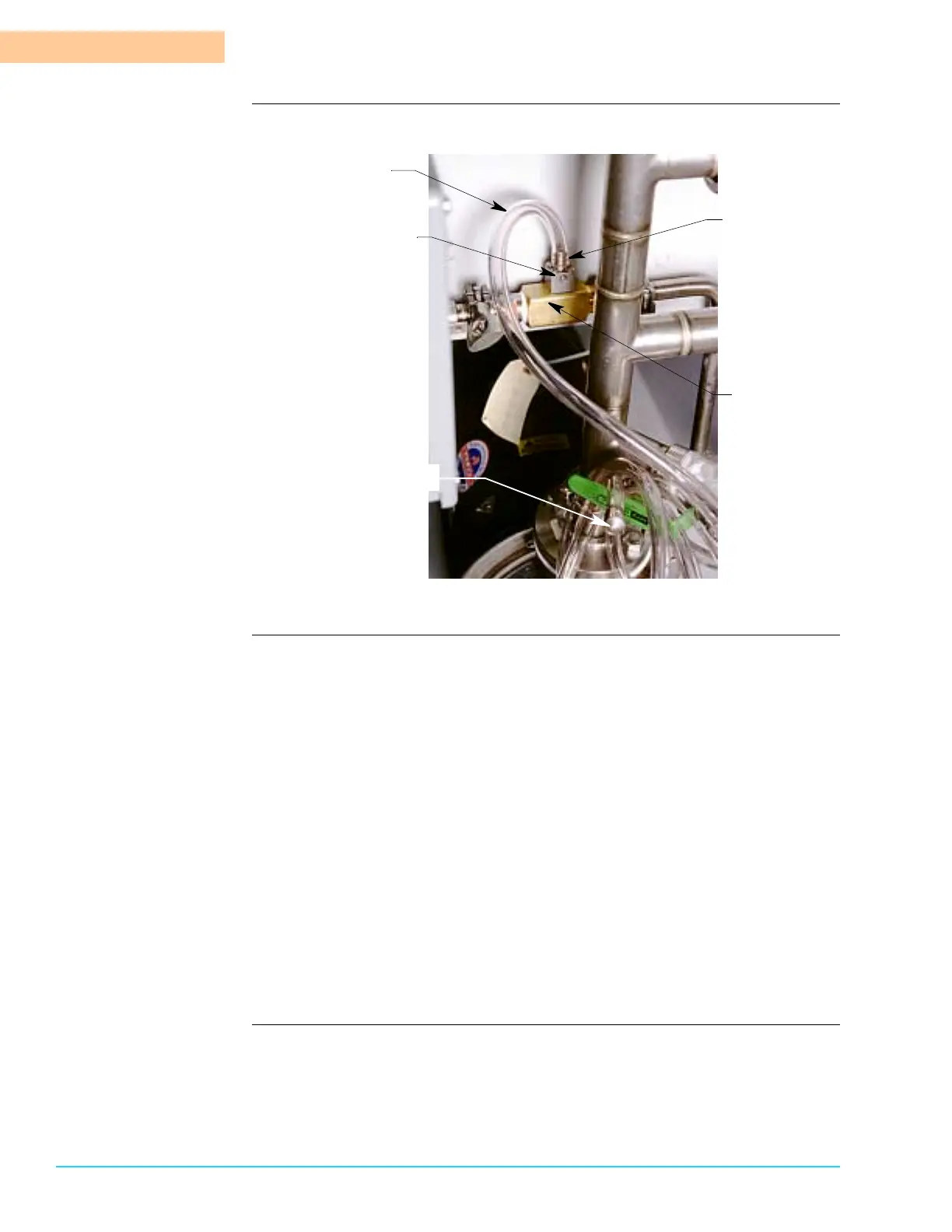

Photograph Figure 9–5 shows the detergent injector, tubing, strainer, and connections.
Figure 9–5
Procedure Use the following steps to set up for saponifier delivery operation:
1. Shut down Aquastorm™ system operation.
2. Ensure system power is Off.
3. Perform Lock Out/Tag Out steps. See Lock-Out Tag-Out on page 10.
4. Remove system rear panels.
5. Ensure the injector end of the tube is connected.
6. Ensure the strainer end of the tube is inserted into, and located at the bottom,
of the detergent storage tank located in the rear prewash section.
7. Turn the metering screw on the fitting to adjust the injection rate. The meter-
ing screw has a range of five (5) turns. To increase the flow turn counter-
clockwise, to decrease the flow turn clockwise.
8. Check injection rate. Readjust as necessary or resume system operation.
9. Replace system rear panels.
10.Remove Lock-Out Tag-Out device.See Lock-Out Tag-Out on page 10.
11.Resume system operation. For detailed information refer to the Aquastorm
200™ Programming and Operation Manual.
Vinyl Tubing
Injector Inlet
Venturi Housing
Metering Screw
Stainless Steel Strainer
