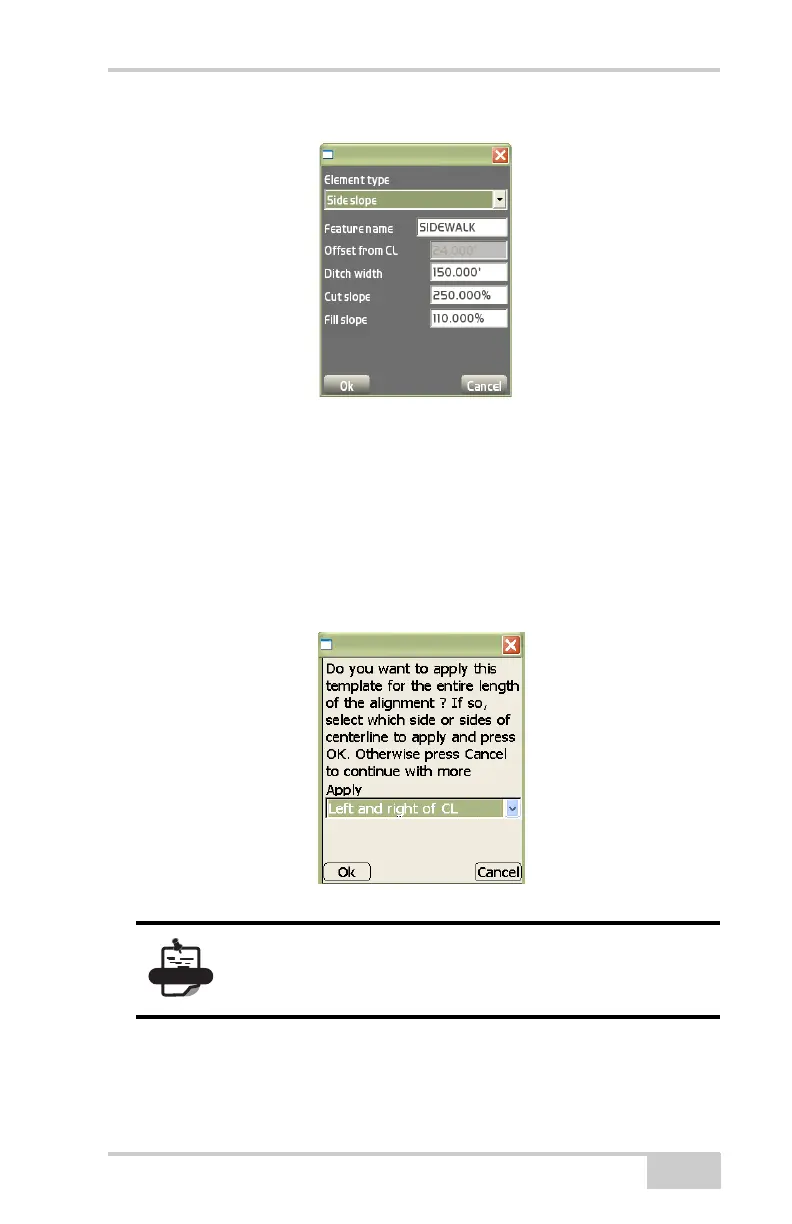

Figure 3-52. Add Template Elements Dialog Box (Example)
If only one template has been created, to apply the template to the
entire length of the alignment, choose the side(s) of the centerline to
which to apply the template, then press Ok. Otherwise, press Cancel
to continue with other operations (
Figure 3-53).
Use the Apply drop-down list to select the application for the align-
ment; either Left of centerline, Right of centerline, or Left and right of
CL.
Figure 3-53. Apply Template to Alignment Dialog Box
The Template applications dialog box creates, edits, and deletes
template applications. After creating template applications, press
Next to continue (
Figure 3-54 on page 3-38).
You must define at least three Vertical profile
elements to access the Template applications dialog
box.
