Surface
P/N 7010-0628
3-43
On the compare surfaces dialog box, select the over-lapping surfaces
to be compared, then press Next (
Figure 3-62 on page 3-43).
• Design Surface – a design surface has been selected by default
from the drop-down list.
• Existing Surface – select the surface to compare from the drop-
down list. Remember to choose two over-lapping surfaces.

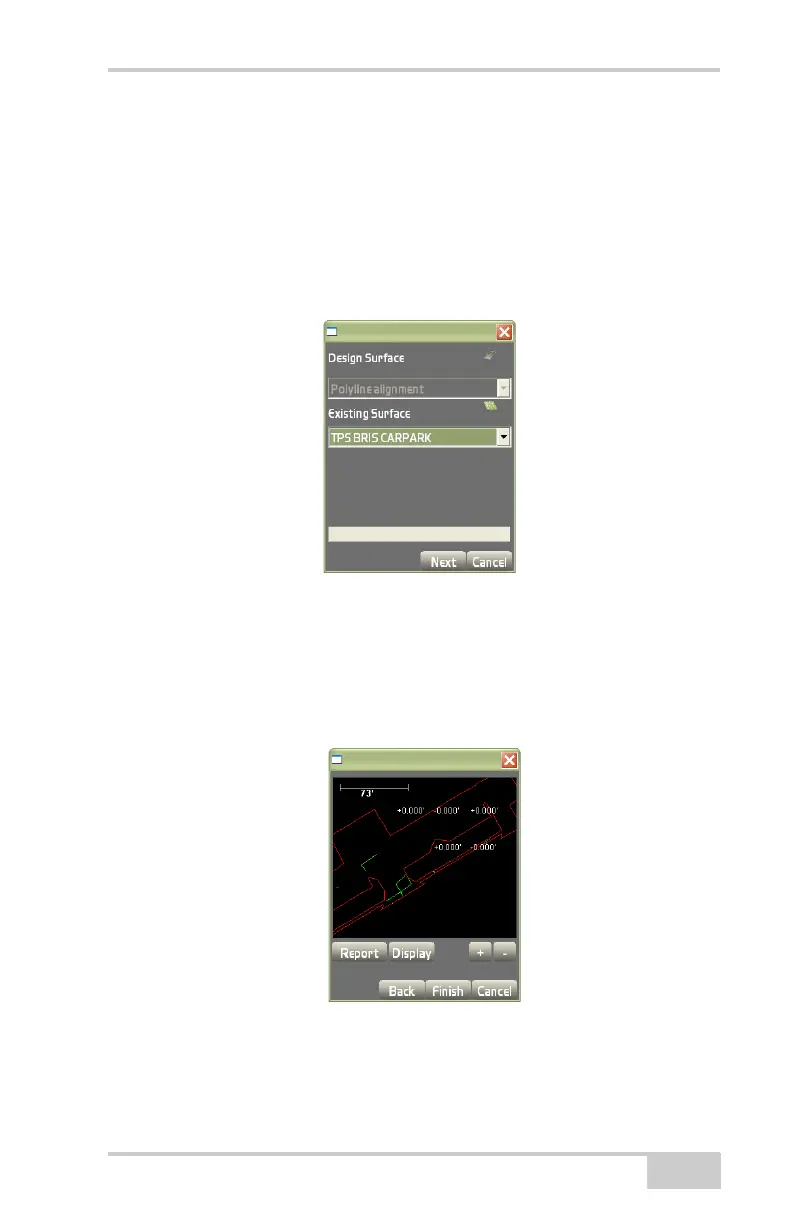

Figure 3-62. Compare Surfaces
The preview dialog box displays the elevation differences between the
two surfaces (
Figure 3-63 on page 3-43). Press the +/- buttons to
zoom in or out on the image, or press down on the screen and drag the
image around. Press Finish to continue.
Figure 3-63. Compare Surface Preview Dialog Box
