Calculation Wizard
P/N 7010-0628
3-97

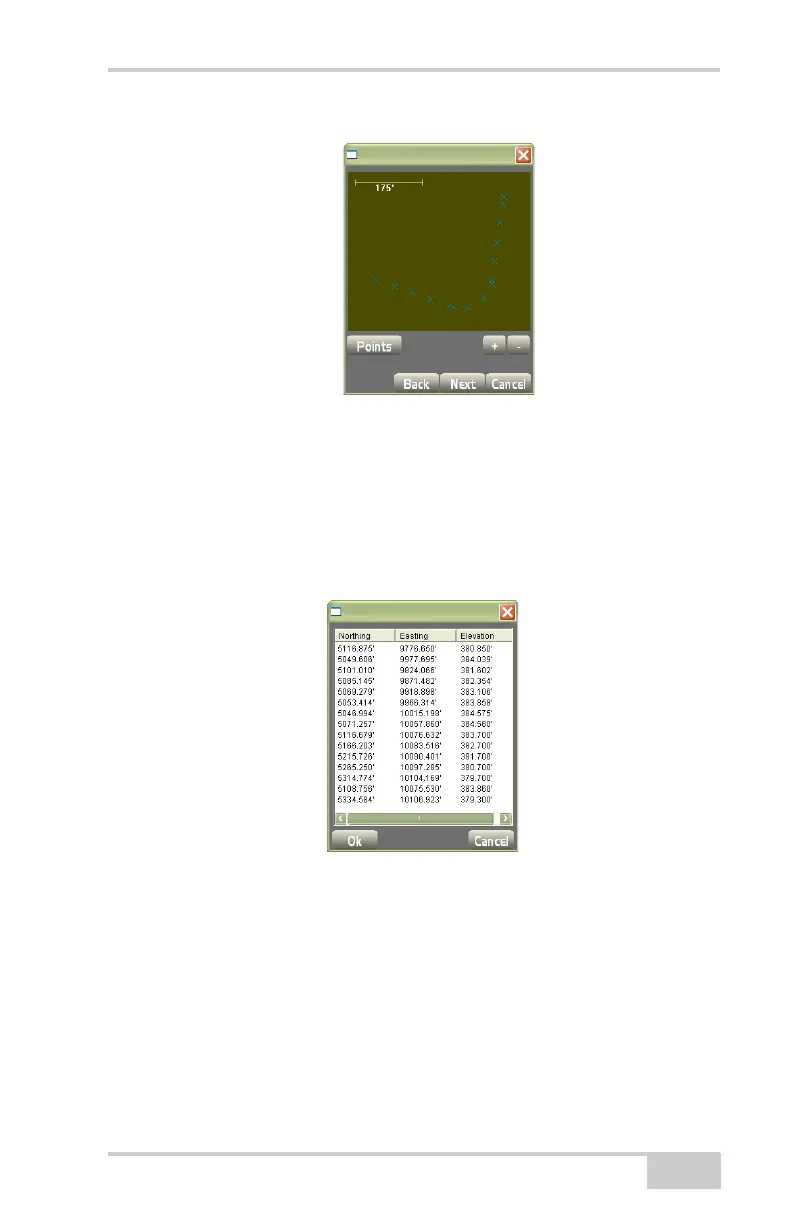

Figure 3-145. Convert Alignment to Points Preview
3. On the review screen (Figure 3-145), press Points. The Points
dialog box displays (Figure 3-146).
The points dialog box displays the Northing, Easting, and
Elevation of the newly created point(s) (
Figure 3-146).
4. Press Ok to continue.
Figure 3-146. Converted Points
5. On the point properties dialog box (Figure 3-147 on page 3-98),
enter the following parameters for the points, then press Finish.
• Pt. number – enter the point number.
• Pt. descriptor – enter the point description (if preferred).
• Add to layer – stores the point to the selected layer.
