Data Menu
Pocket-3D Reference Guide
3-110
The report dialog box (Figure 3-169) displays the following results:
Date, Name of Design Surface, Name of Existing Surface, Common
Area, Cut Volume, Fill Volume, and Volume difference.
1. Press Save to save this information.
2. Enter a name for the text file using the keyboard at the bottom of
the screen.
3. Select a folder and location in which to store the text file, then
press Ok to return to the view screen (
Figure 3-168 on 
page 3-109).

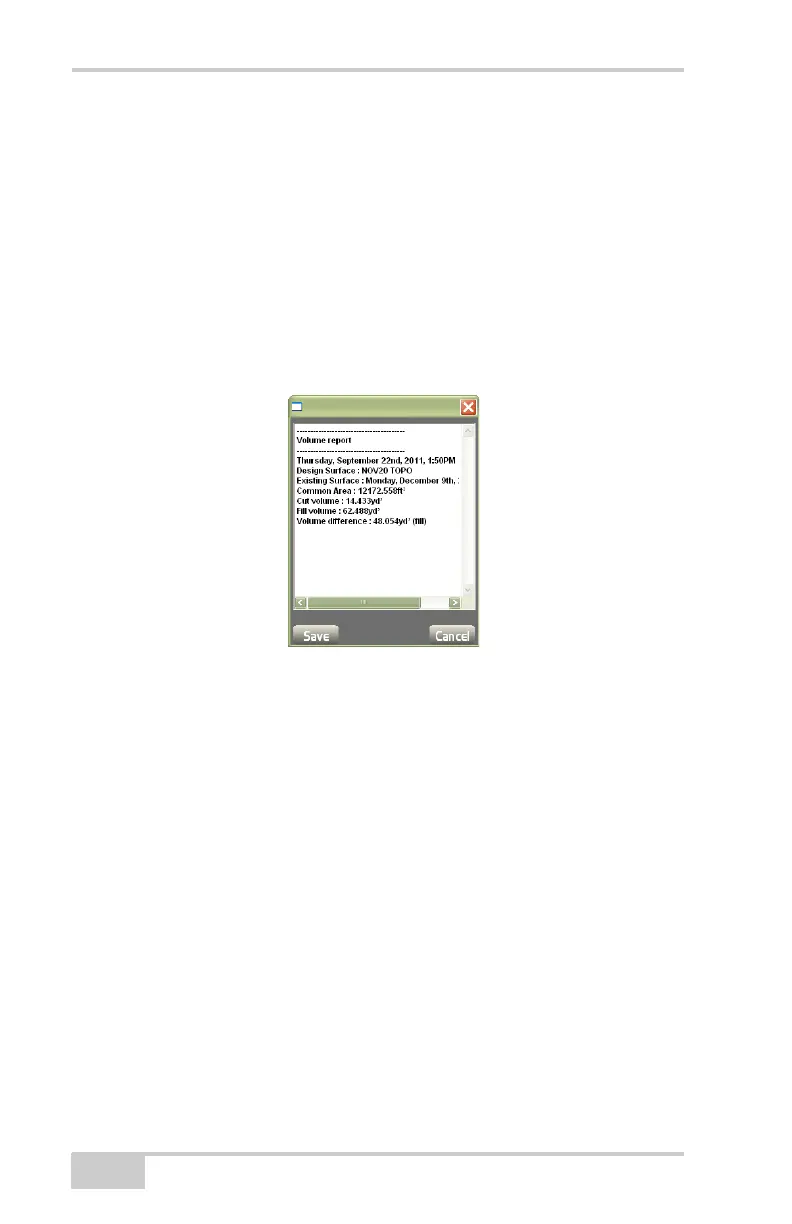

Figure 3-169. Report Dialog Box
4. Press Display to select surface parameters (Figure 3-168 on
page 3-109).
On the display surface dialog box (Figure 3-170 on page 3-111),
select the desired parameters for the surface display, then press Ok.
• Show contours – enable to display the contour lines at a set
interval on the surface.
• Show solid colors – enable to display solid colors at a set interval
on the surface.
• Interval – enter the desired contour interval.
• Show grid of cut/fills – enable to display a grid of cuts/fills on the
surface.
