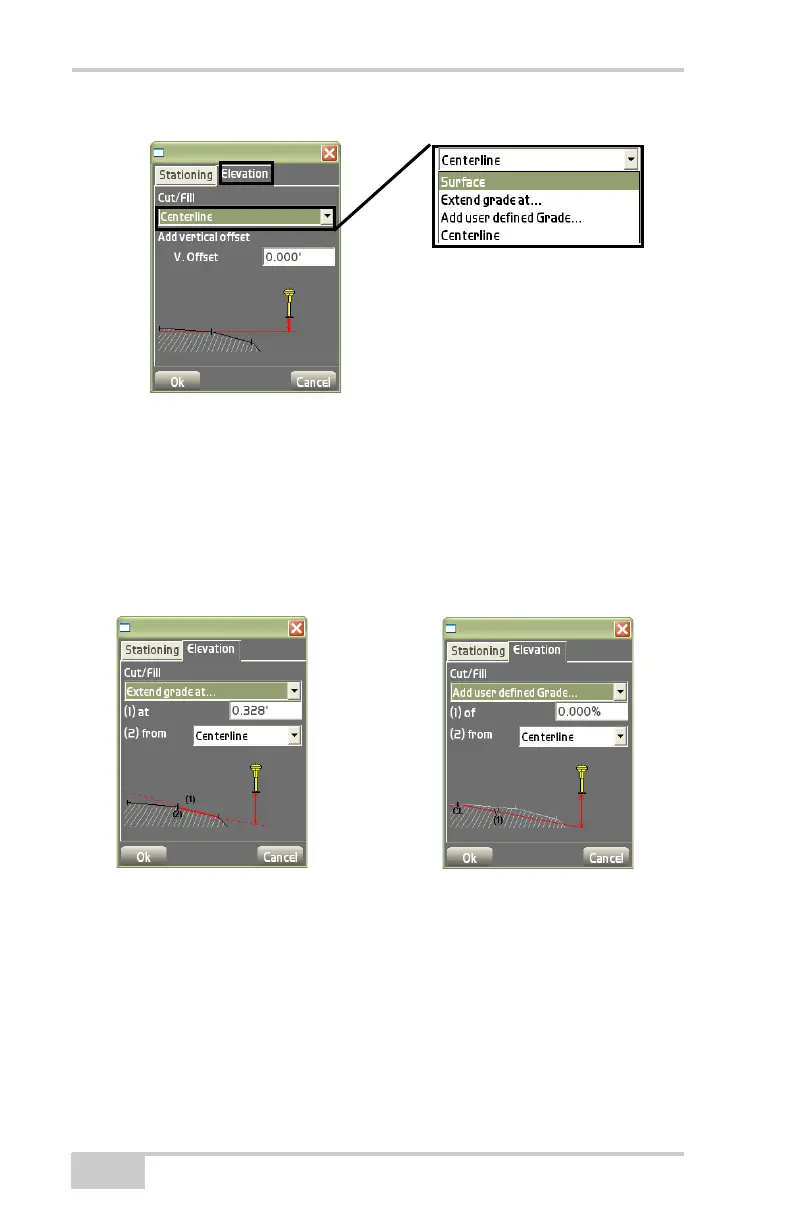

Figure 4-48. Alignment Elevation Parameters
Depending upon what Cut/Fill parameter is selected, different
parameters are available (
Figure 4-49).
The red dotted line displays the extended grade. The Cut/Fill value
will be measured from the current range pole elevation to the
elevation of the extended grade at the current position (double-red
arrow) (
Figure 4-48 and Figure 4-49).
Figure 4-49. Cut/Fill Offset Parameters
If the point to be staked lies outside the screen area, the main screen
displays an arrow pointing in the direction of the station

(Figure 4-50 on page 4-33).
