TRENDnet TL2-E284 - Chapter 2 Product Introduction; Product Introduction; Front Panel

24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
2-1
Chapter 2
Product Introduction
Product Introduction
The TL2-E284 is a Layer 2 Managed Switch with 24-10/100Mbps
Ethernet ports and 4-10/100/1000Mbps Gigabit Ethernet ports
shared with 2-10/100/1000Mbps Mini-GBIC slots.

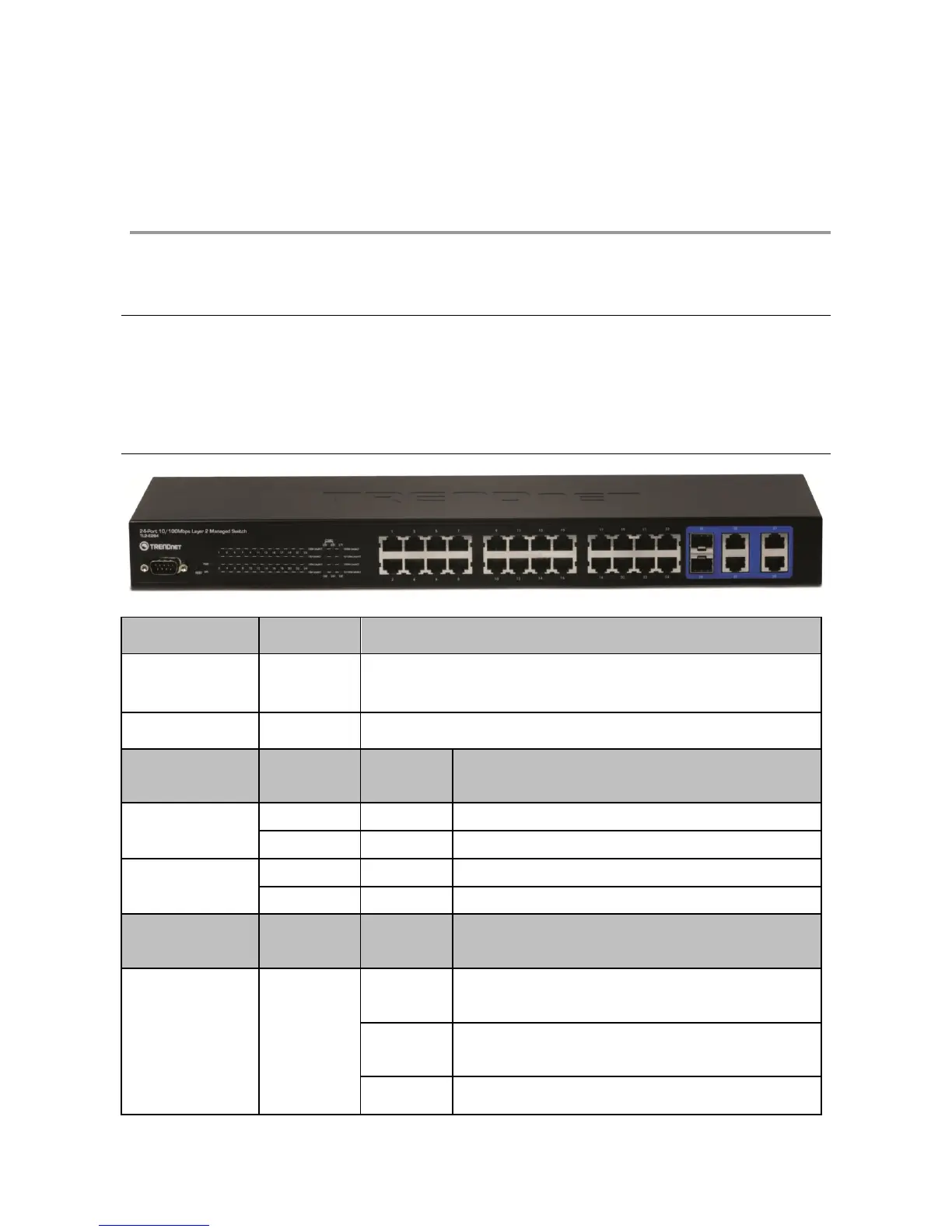

Front Panel
Port/Button
Action
Function
Console
(RS-232)
N/A
Provide out-of-band connection for Switch Management
Reset
Push/Hold
15 sec
The switch will be restored to factory defaults
Device Status
LED
Color
Sequence
Definition
PWR (Power)
Green
Solid
Device powered On
N/A
Off
Device powered Off
SYS (System)
Green
Solid
Device is ready
N/A
Off
Device is no ready
Ethernet LED
(RJ-45)
Color
Sequence
Definition
100M Link/ACT
Green
Solid
100/200Mbps (Half/Full Duplex) Connected (per
port)
Blinking
100/200Mbps (Half/Full Duplex) Data
Transmitting/Receiving (per port)
Off
No connection to the port
