IGMP Snooping VLAN Router Ports
This page is to display the static and dynamic learned IGMP router ports of each VLAN.

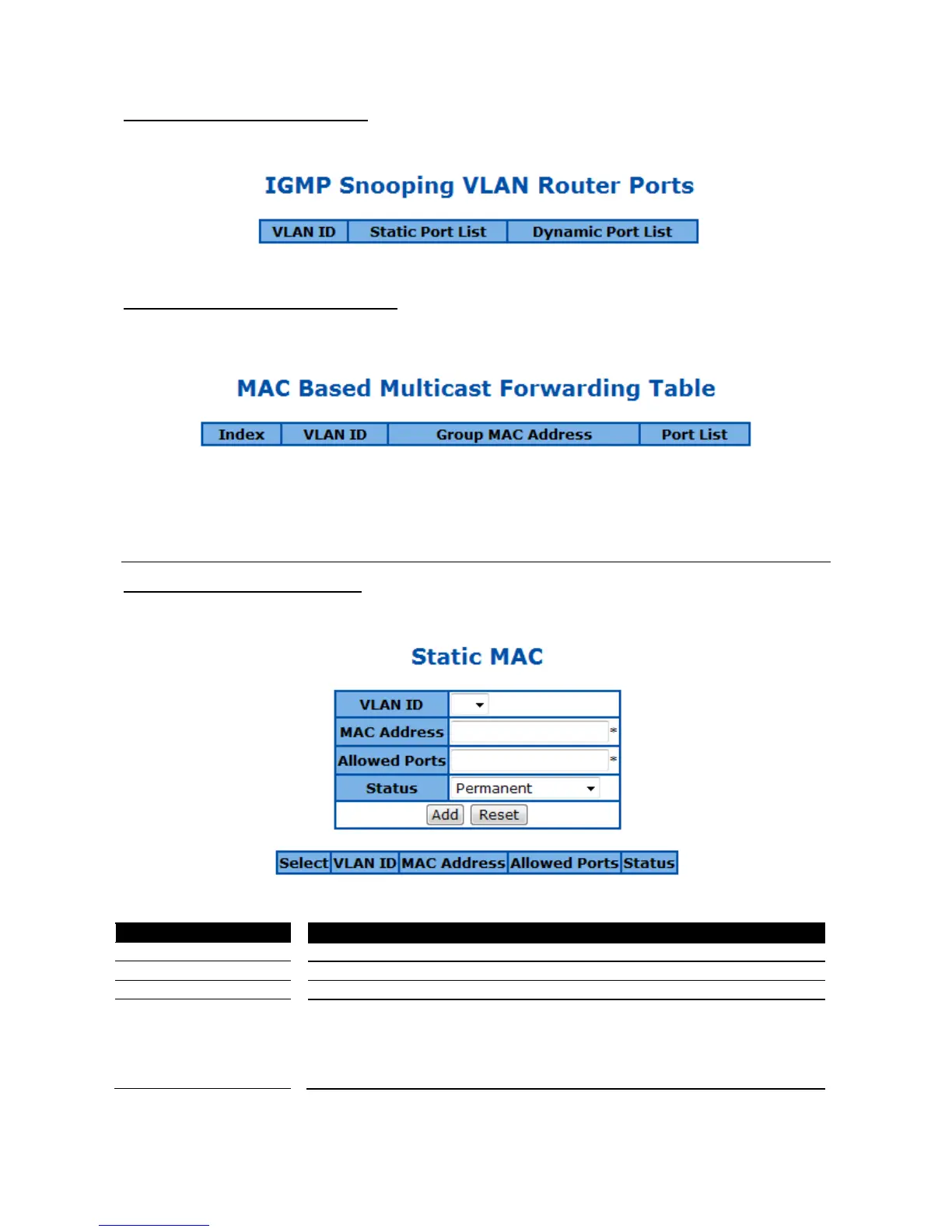

Figure 62 – Layer2 Management > IGMP Snooping > Router Ports
MAC Based Multicast Forwarding Table
This page is to display the IGMP group MAC address was learned.
Figure 63 – Layer2 Management > IGMP Snooping > Group Information
Static MAC Entries
Static MAC Address Configuration
This page is to create or configure static unicast MAC address in the L2 forwarding database.
Figure 64 – Layer2 Management > Static MAC Entries > Unicast Entries
Parameter
Description
VLAN ID
Specify the VLAN ID of the new MAC address entry.
MAC Address
Specify the MAC address if this new entry.
Allowed Port
Specify the port allowed to forward the MAC address.
Status
Specify the attribute of this static MAC. The options are:
Permanent - The static multicast will keep alive.
DeleteOnReset - The static multicast will be deleted after switch reset.
DeleteOnTimeout - The static multicast will be deleted when aging time out.
Default is Permanent.
Click Add to create a new static MAC, Reset to clear the value.
