24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
10-11

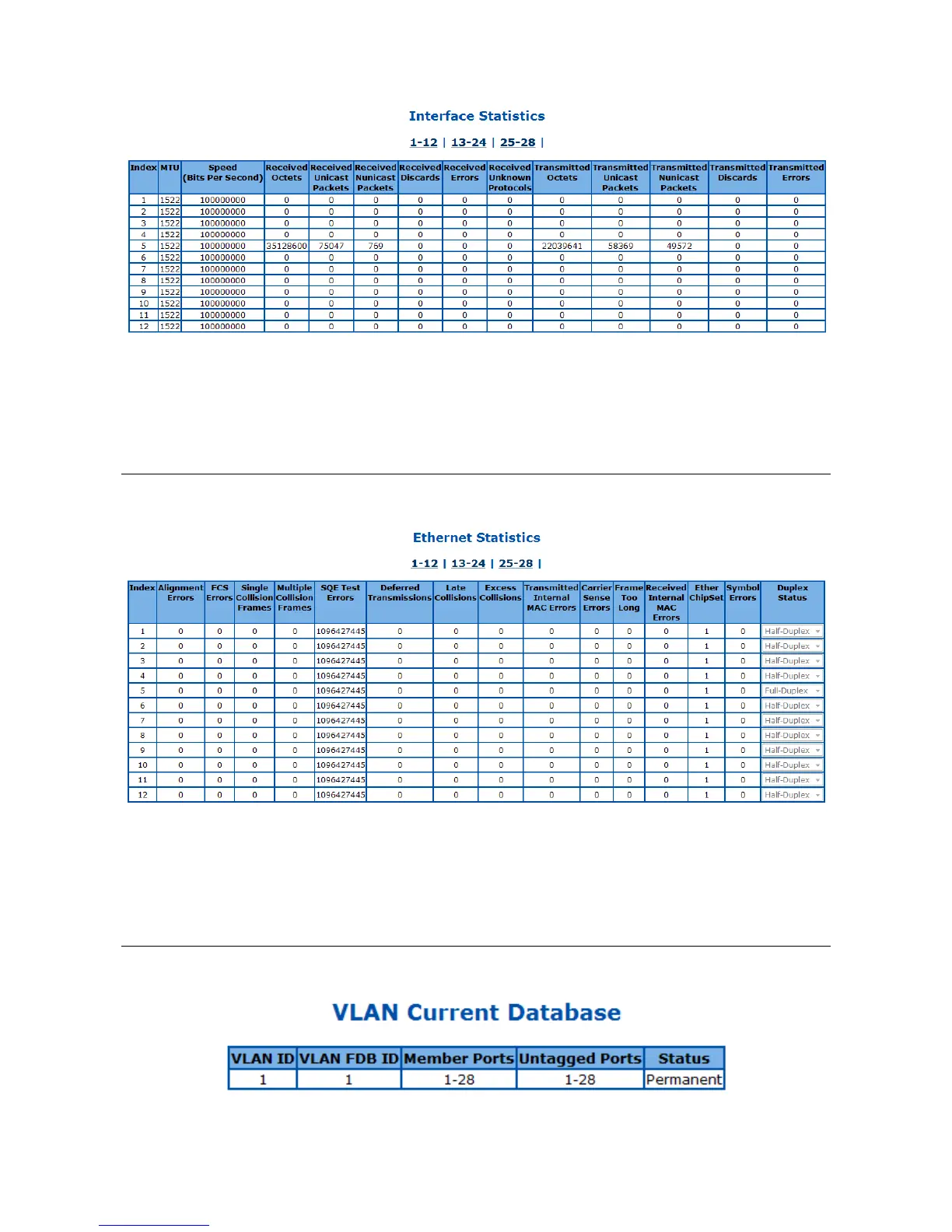

Figure 83 – Statistics > Interface
Click 1-12, 13-24, 25-28 to display the Ethernet related statistics of corresponding ports.
Ethernet Statistics
This page is to display the Ethernet related statistics of each port.
Figure 84 – Statistics > Ethernet
Click 1-12, 13-24, 25-28 to display the Ethernet related statistics of corresponding ports.
VLAN Statistics
This page is to display current VLAN and its member port information of the Switch.
Figure 85 – Statistics > VLAN
