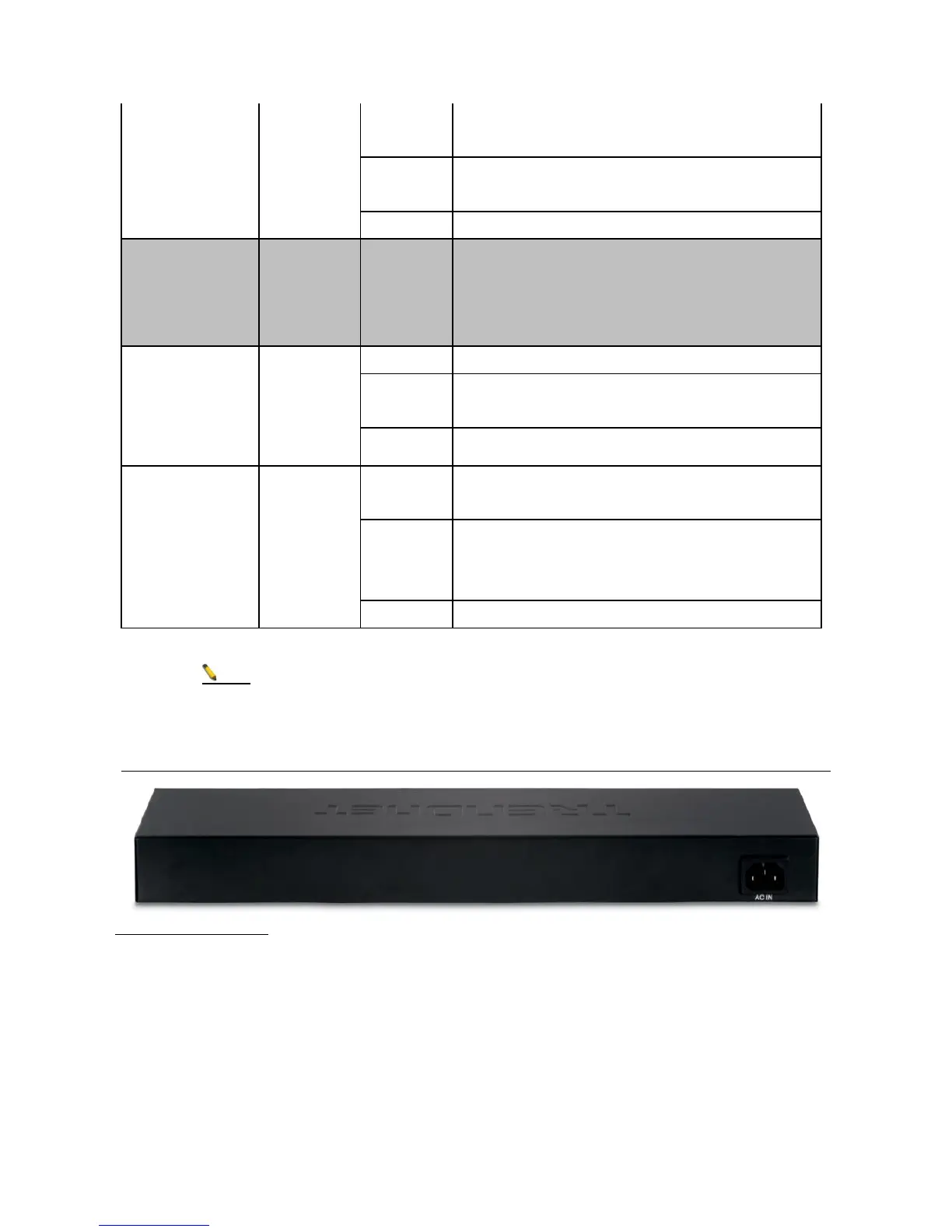

TRENDnet TL2-E284 - Rear Panel

24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
2-2
10M Link/ACT
Amber
Solid
10/20Mbps (Half/Full Duplex) Connected (per
port)
Blinking
10/20Mbps (Half/Full Duplex)Data
Transmitting/Receiving (per port)
Off
No connection to the port
Shared Gigabit
Ethernet (RJ-45)
/ Mini-GBIC Slot
LED
Color
Sequence
Definition
1000M Link/ACT
Green
Solid
2000Mbps (Full Duplex) Connected (per port)
Blinking
2000Mbps (Full Duplex) Data
Transmitting/Receiving (per port)
Off
No connection to the port
10/100M
Link/ACT
Amber
Solid
10/20Mbps (Half/Full Duplex) or 100/200Mbps
(Half/Full Duplex) Duplex Connected (per port)
Blinking
10/20Mbps (Half/Full Duplex) or 100/200Mbps
(Half/Full Duplex) Data Transmitting/Receiving
(per port)
Off
No connection to the port
Note
Mini-GBIC ports are shared with normal RJ-45 ports 25 and 26. When
Mini-GBIC port is used, the RJ-45 port cannot be used.
Rear Panel
Power Connector
The power port is where to connect the AC power cord.
