Click Add to create a new statistics entry, Reset to clear the value.
Parameter
Description
Select
Select a RMON statistics entry to apply the
Index
The index of the RMON statistics collection.
Port
The port of the RMON statistics collection.
Drop Events
The number of events was dropped due to lack of resources.
Octets
The total number of octets received from this port.
Packets
The total number of packets received from this port.
Broadcast Packets
The total number of broadcast packets received from this port.
Multicast Packets
The total number of multicast packets received from this port.
Owner
Specify the owner of the statistics.
Status
Specify the status of this statistics entry. The options are:
Valid - The statistics entry is valid.
Under Creation -
Invalid - The statistics entry is invalid and will be deleted.
Click Apply to submit the changes.
RMON History Configuration
This page is to configure the RMON history settings on ports.

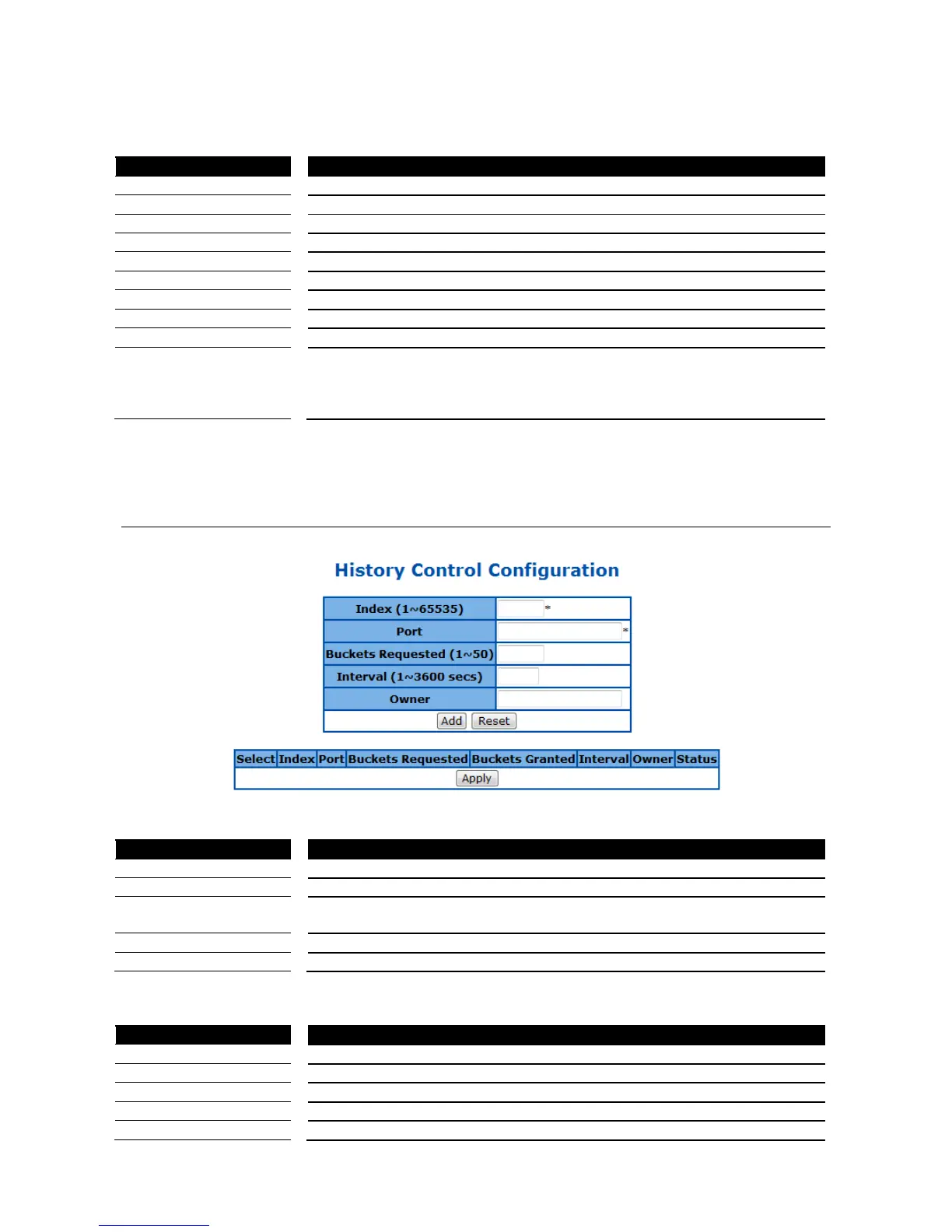

Figure 80 – RMON > History
Parameter
Description
Index (1~65535)
Specify the index of the RMON history collection.
Port
Specify which port to enable the RMON history collection.
Buckets Requested
(1~50)
Specify the maximum number of RMON history collection.
Interval (1~3600 secs)
Specify the time interval for the history collection.
Owner
Specify the owner of the history entry.
Click Add to create a new history entry, Reset to clear the value.
Parameter
Description
Select
Select a RMON history entry to apply the
Index
The index of the RMON history collection.
Port
The port of the RMON history collection.
Buckets Requested
Specify the maximum number of RMON history collection.
Buckets Granted
The number of bucket granted for collecting the RMON history.
