TRENDnet TL2-E284 - Rstp; RSTP Global Configuration; RSTP Configuration

24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
6-12

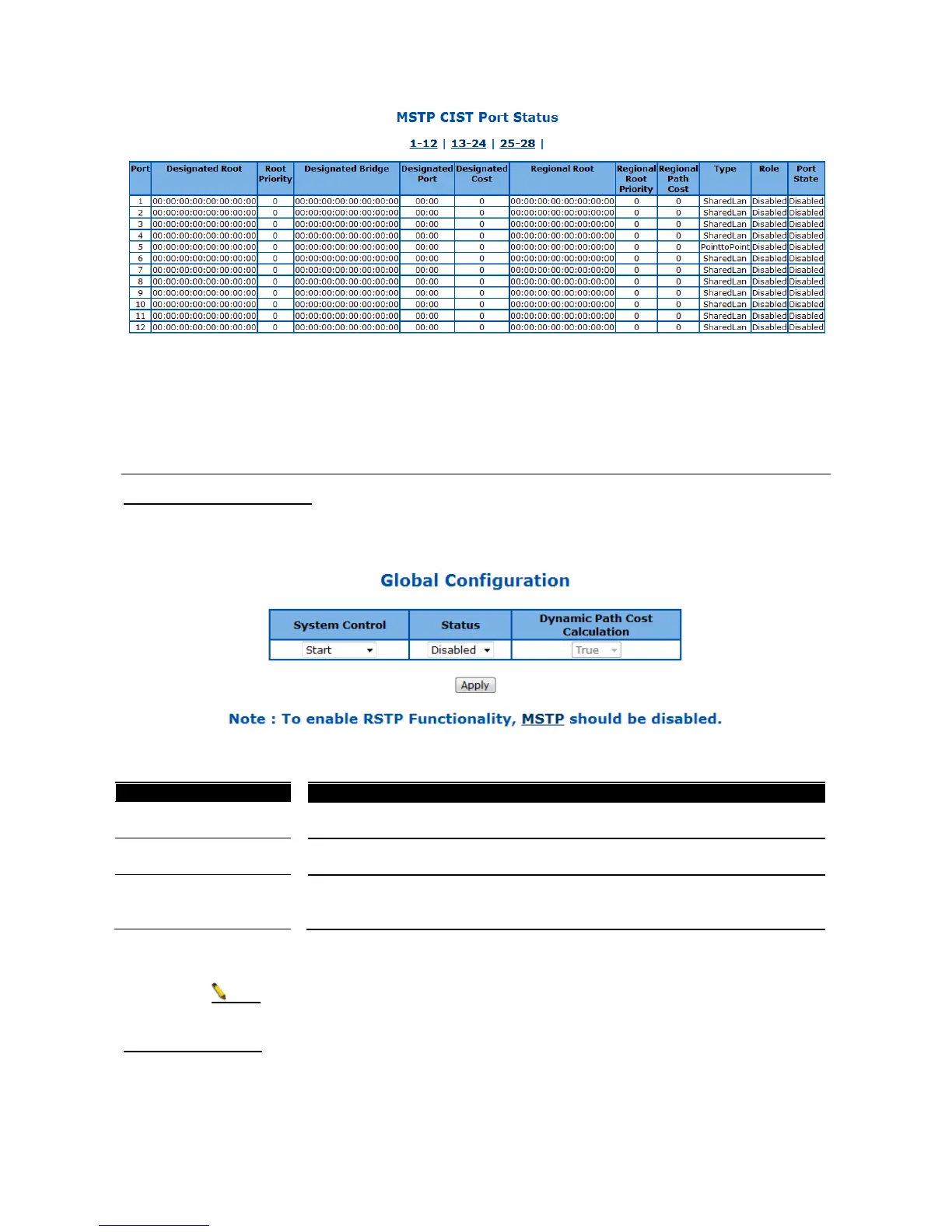

Figure 43 – Layer2 Management > MSTP > CIST Port Status
Click 1-12, 13-24, 25-28 to display the statistics for corresponding ports.
RSTP
RSTP Global Configuration
This page is to configure the RSTP global settings.
Figure 44 – Layer2 Management > RSTP > Global Settings
Parameter
Description
System Control
To activate or shutdown the RSTP function. Select Start to activate the MSTP
function, Shutdown to shutdown MSTP function.
Status
To enable or disable the MSTP. Select Enabled to enable the MSTP function,
Disabled to disable it. Default is disabled.
Dynamic Path Cost
Calculation
Select the path cost calculation mode of spanning tree. Select True to enable
dynamic path cost according to the port speed, False to disable it. Default if
False.
Click Apply to submit the changes.
Note
1. MSTP function must be shutdown before activate RSTP.
2. RSTP status must be enabled before configure other RSTP details.
RSTP Configuration
This page is to configure the timers and other details of RSTP functions.
