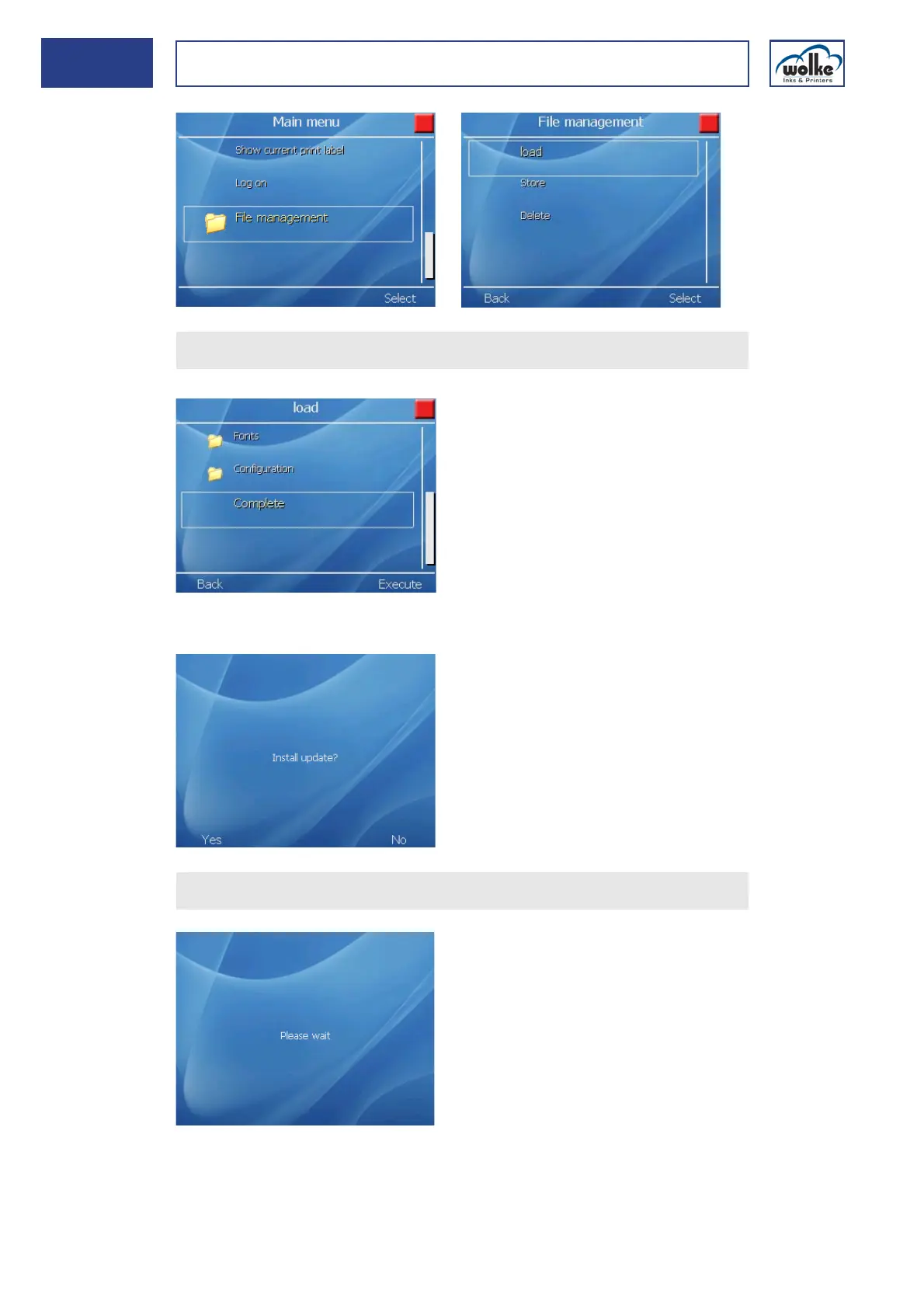

Data exchange

158 Manual m600 basic 2.6_01

Software

update

The following message appears:

After the update has been performed successfully, the m600 basic is shut

down and restarted automatically.

 Select the menu item "Complete"!

 Confirm with the function button "Yes". You are asked to wait.
