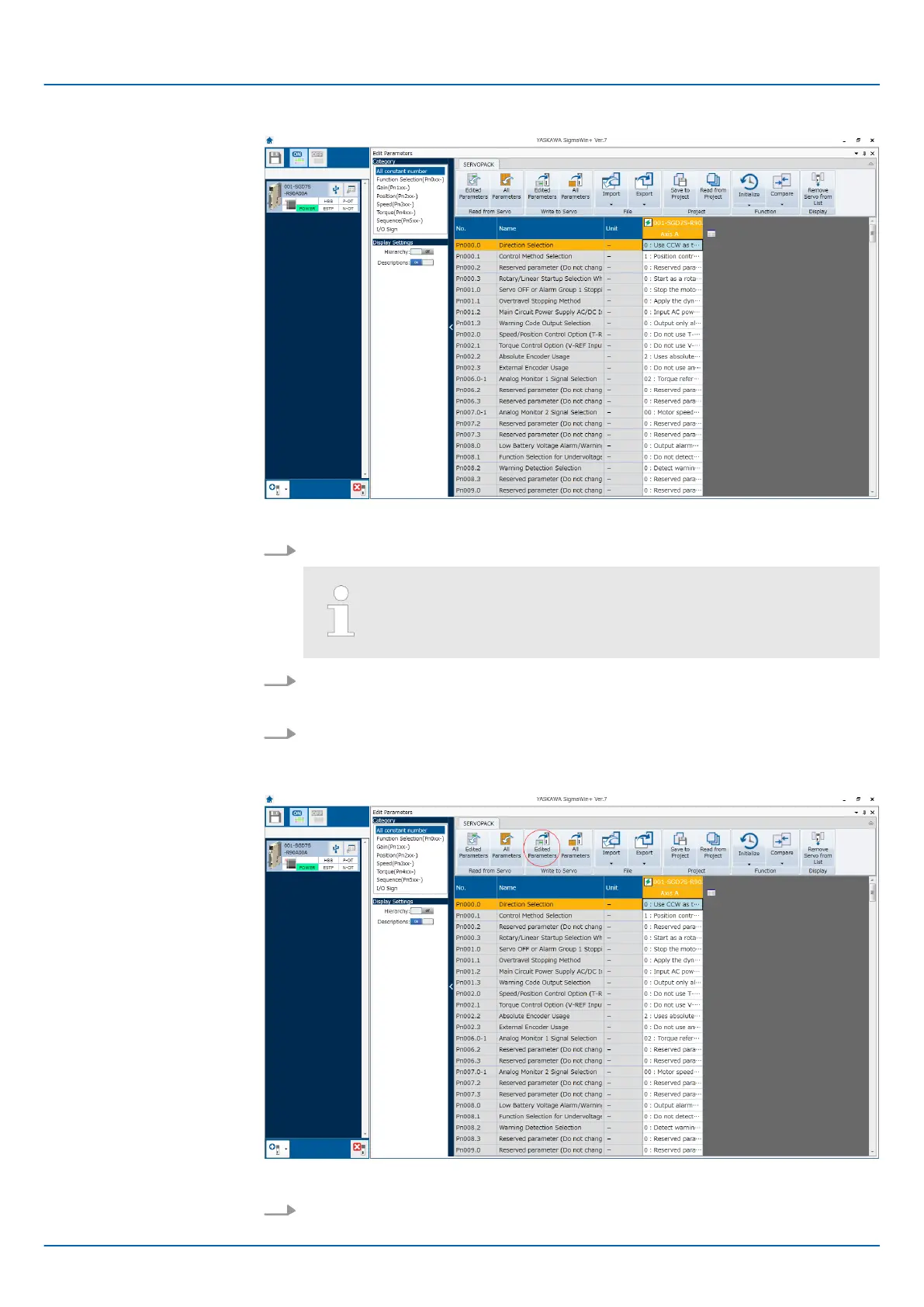

Fig. 90: Select Edit Parameters in the Menu Dialog Box of SigmaWin+
4. Change the setting of the parameter.
– For a parameter for a numeric setting, input the numeric setting.
– If the parameter requires selection of a function, select the func-
tion from the list of selections.
5. Press the Enter Key.
The background of the edited parameter cell will change to green.
6. Select Edited Parameters in the Write to Servo Group.
The edited parameters are written to the SERVOPACK and the backgrounds of the
cells change to white.
Fig. 91: Select Edited Parameters in the Write to Servo Group of SigmaWin+
7. Click the OK Button.
