If you set a value that exceeds the maximum torque of the Servomotor,
the torque will be limited to the maximum torque of the Servomotor.
7.8.2 Internal Torque Limits
If you use internal torque limits, the maximum output torque will always be limited to the
specified Forward Torque Limit (Pn402) and Reverse Torque Limit (Pn403).
Forward Torque Limit
Setting
Range
Setting Unit Default Set-
ting
When Ena-
bled
Classifica-
tion
Pn402 0 to 800 1%* 800 Immediately Setup
(applies to Speed Control, Position Control and Torque Control)
Reverse Torque Limit
Setting
Range
Setting Unit Default Set-
ting
When Ena-
bled
Classifica-
tion
Pn403 0 to 800 1%* 800 Immediately Setup
(applies to Speed Control, Position Control and Torque Control)
* Set a percentage of the rated motor torque.
If the setting of Pn402 or Pn403 is too low, the torque may be insufficient
for acceleration or deceleration of the Servomotor.
t
Pn403
Pn402
t
Without Internal Torque Limits
(Output to the maximum torque is possible.)
Maximum torque
Speed
Torque limit
Speed
With Internal Torque Limits

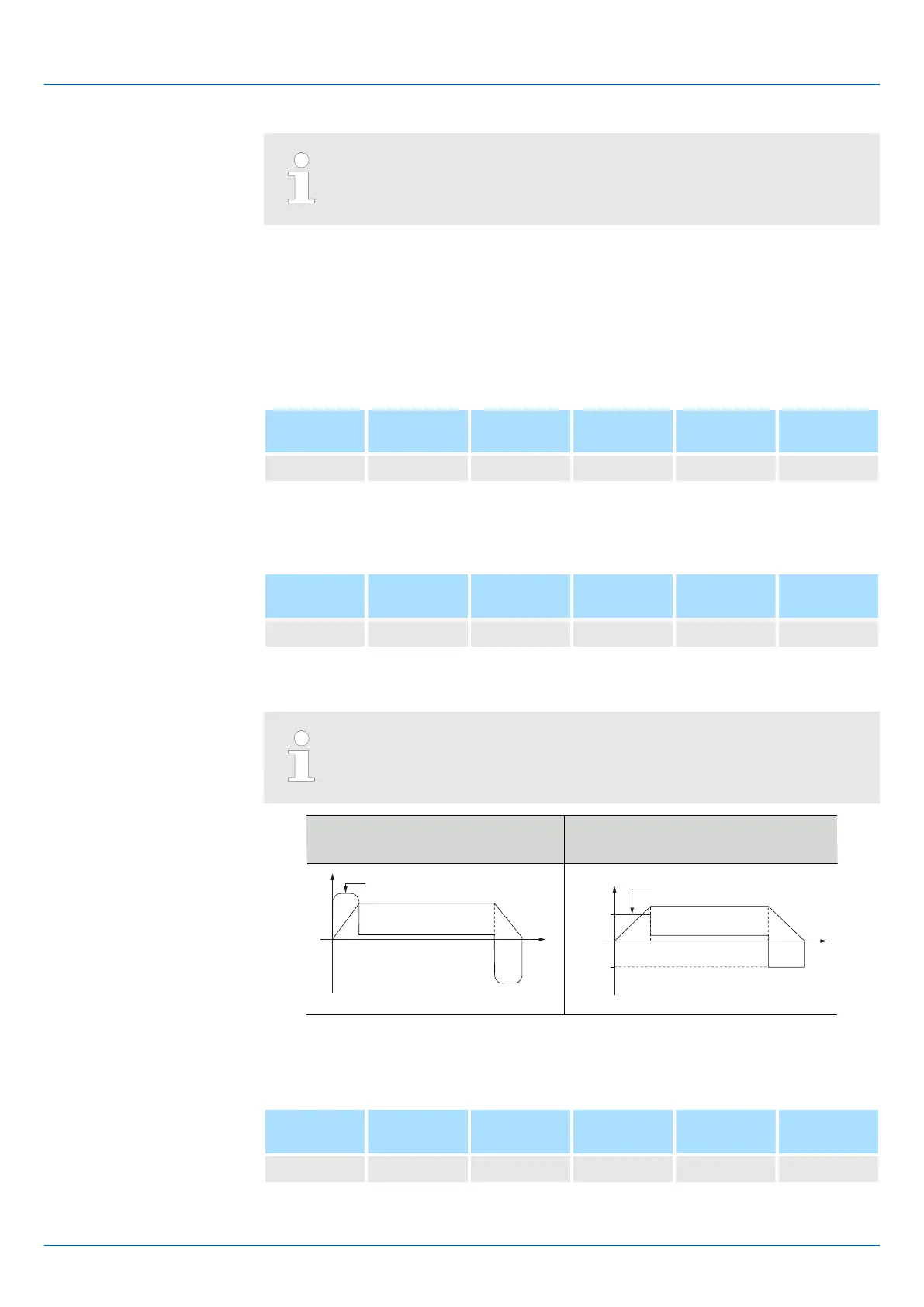

Fig. 165: Internal Torque Limits - Rotary Servomotors
Forward Force Limit
Setting
Range
Setting Unit Default Set-
ting
When Ena-
bled
Classifica-
tion
Pn483 0 to 800 1%* 30 Immediately Setup
(applies to Speed Control, Position Control and Force Control)
Rotary Servomotors
Linear Servomotors
Sigma-7 Series SERVOPACKs
Application Functions
Selecting Torque Limits > Internal Torque Limits
