5. Click the Forward Button or the Reverse Button.

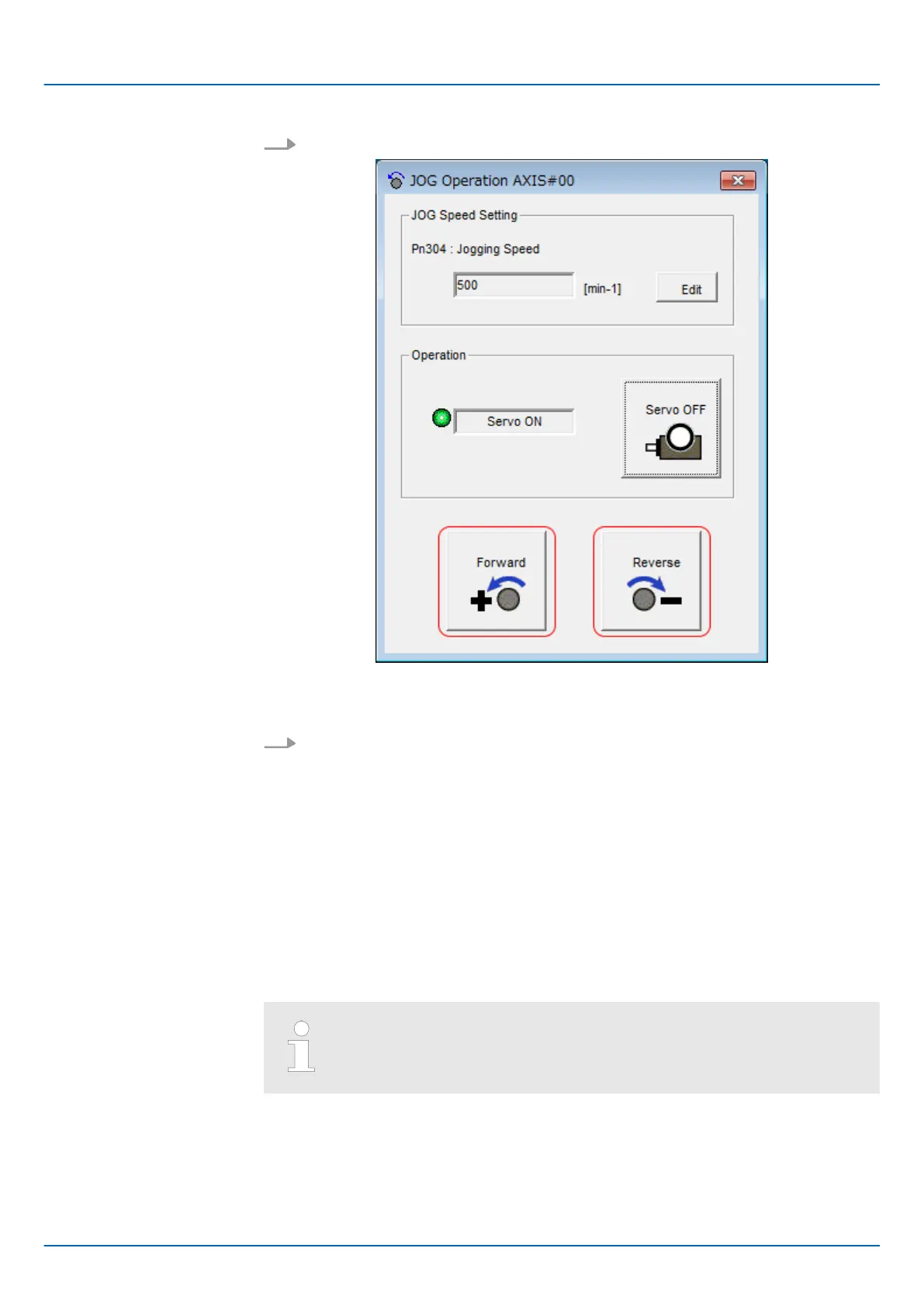

Fig. 208: JOG Operation - Forward - Reverse
ð
Jogging will be performed only while you hold down the mouse button.
6. After you finish jogging, turn the power supply to the SERVOPACK OFF and ON
again.
This concludes the jogging procedure.
8.5 Trial Operation with PROFINET Communications
A trial operation example for PROFINET communications is given below.
In this example, operation in PROFIdrive Position Mode is described.
The default positioning mode is relative positioning. For PROFINET communication, the
YASKAWA telegram 100 is used.
The configuration of the PLC is not part of the description below. The
drive has to be configured with module "Telegram 100".
Refer to the following chapter for details on operation with PROFINET communications.
Ä
Chap. 14 ‘PROFIdrive Drive Profile’ page 499
Sigma-7 Series SERVOPACKs
Trial Operation and Actual Operation
Trial Operation with PROFINET Communications
