Safety request
input signal
Set time
SPM-D activation status
0
0 01
Statusword
(6041h)
Operation enable
SERVOPACK status
Motor powered
Velocity actual value
(606Ch)
Monitored speed
Monitored travel distance
Deceleration
monitoring
Position
monitoring
ON ON
OFF (Safety function
execution requested.)
Safety active
(6041h, bit 15)

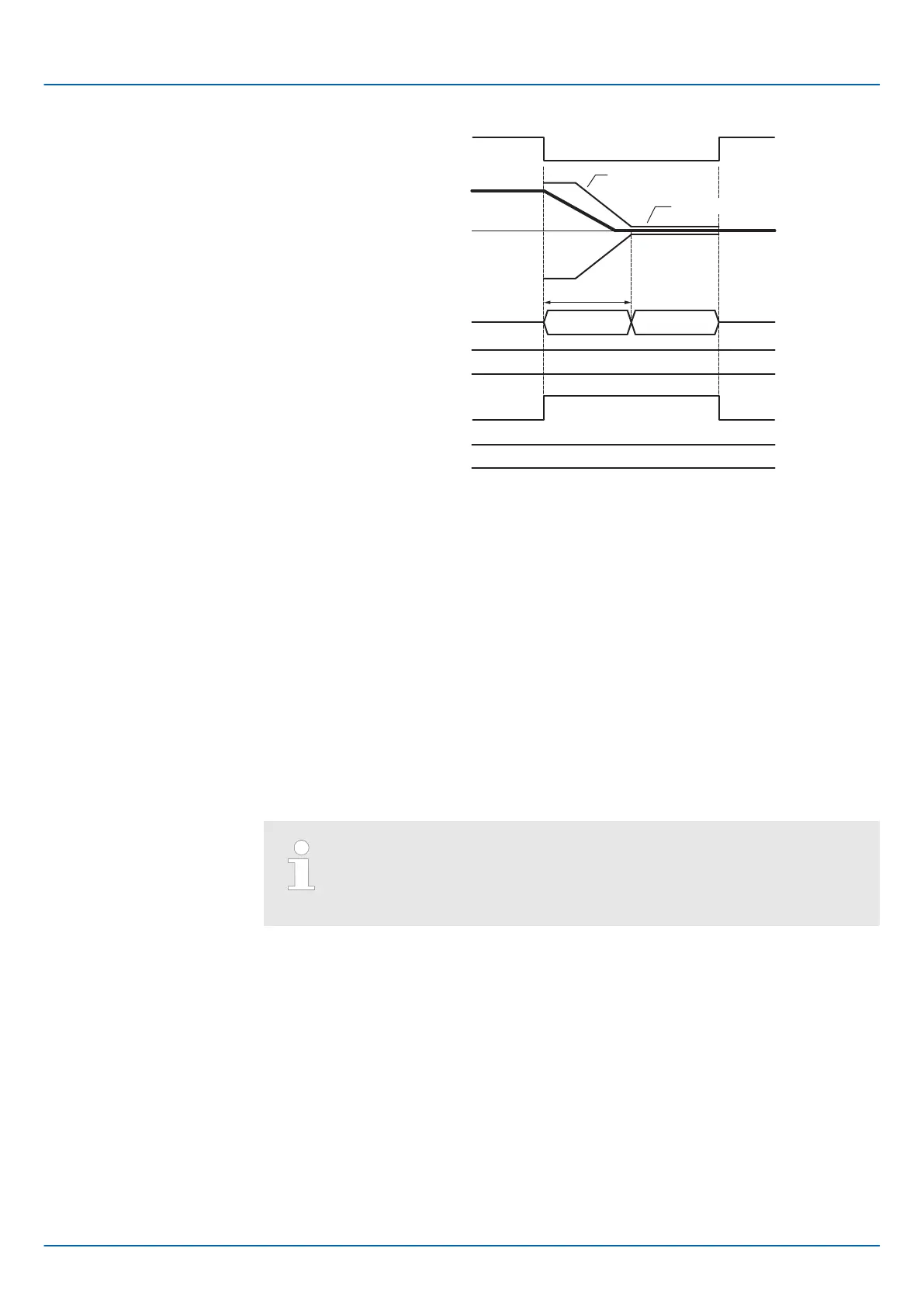

Fig. 353: Operation Example for SPM-D
When the safety request input signal turns ON, normal operation will be enabled.
The recovery method after deceleration monitoring is completed and the safe (HWBB)
state is entered in the same as for the HWBB function. Refer to the following section for
details.
Ä
Chap. 12.3.5 ‘Recovery Method’ page 470
12.8.4 Safe Speed Limit with Delay (SLS-D)
The Safe Speed Limit with Delay (SLS-D) function operates according to the Safely-
Limited Speed (SLS) function defined in IEC 61800-5-2. The deceleration operation of the
motor is monitored (deceleration monitoring) until the time set in a parameter elapses in
response to the safety request input status. The motor speed is then monitored to see if it
is within the allowable range (within range for a constant speed).
Refer to the following manual for the application procedures for the SLS-
D function.
&
Σ-V-Series/Σ-V-Series for Large-Capacity Models/Σ-7-Series User’s
Manual Safety Module (Manual No.: SIEP C720829 06)
Operation Example for
SPM-D
Recovery Method
Sigma-7 Series SERVOPACKs
Safety Functions
Safety Module Safety Functions > Safe Speed Limit with Delay (SLS-D)
| | PROFINET Communications - SIEP YEUOC7P 02A Revision 0 | en | 479
