4.4 Mounting Hole Dimensions
Use mounting holes to securely mount the SERVOPACK to the mounting surface.
To mount the SERVOPACK, you will need to prepare a screwdriver that is
longer than the depth of the SERVOPACK.
D
E F
H
A
BC
G

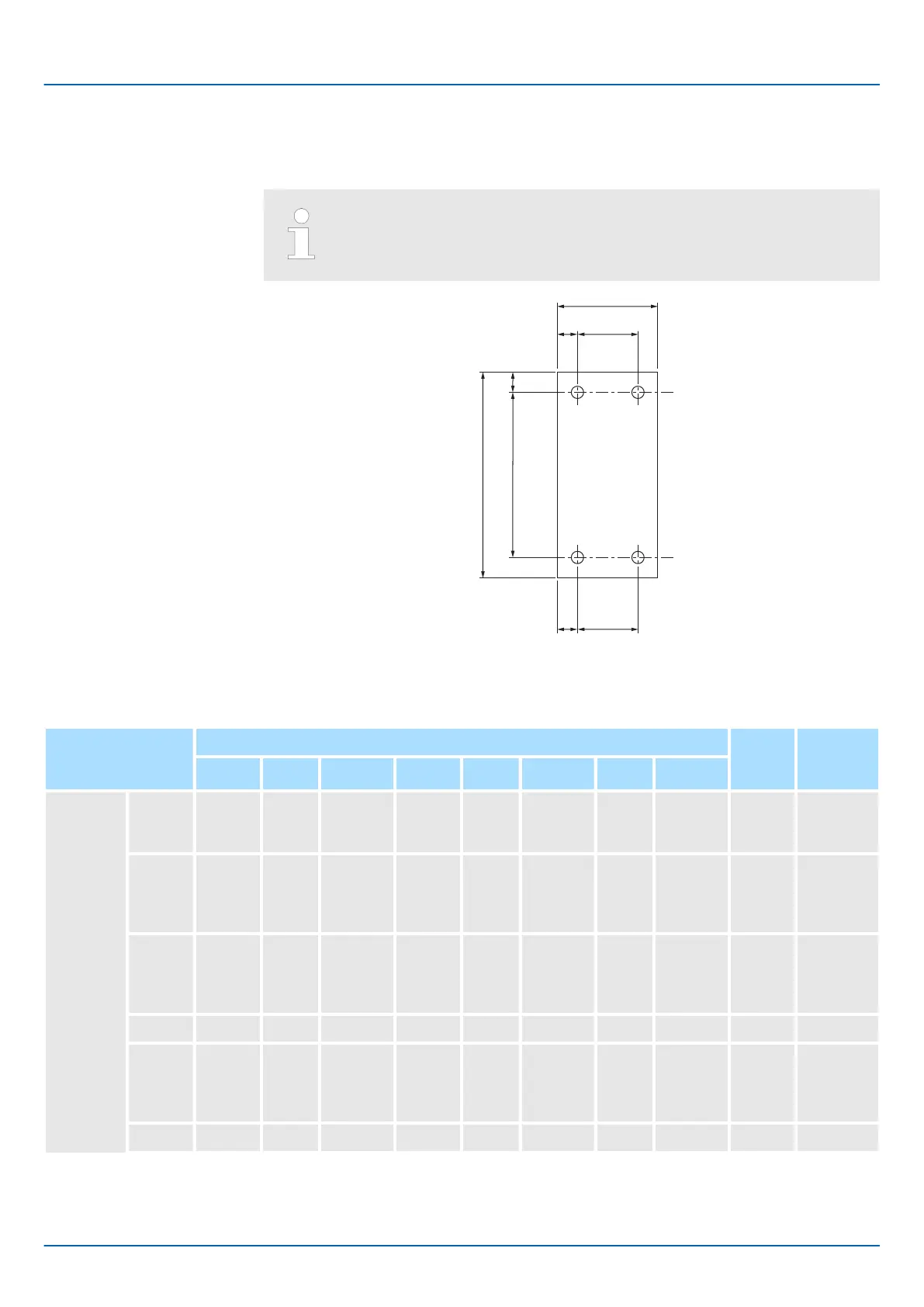

Fig. 35: Mounting Hole Dimensions of the SERVOPACK
n Σ-7-series Mounting Hole Dimensions
SERVOPACK
Model
Dimensions (mm) Screw
Size
Number
of
Screws
A B C D E F G H
SGD7S- R70A,
R90A,
1R6A
168 5 160 ±0.5 45 35 − 25 − M4 2
2R8A,
R70F,
R90F,
2R1F
168 5 160 ±0.5 45 5 − 25 − M4 2
3R8A,
5R5A,
7R6A,
2R8F
168 5 160 ±0.5 70 6 58 ±0.5 64 − M4 3
120A 168 5 160 ±0.5 90 5 80 ±0.5 12.5 − M4 3
180A,
200A,
120A
008
188 5 180 ±0.5 100 95 − 12.5 75 ±0.5 M4 3
330A 258 6 250 ±0.5 110 5 100 ±0.5 13 84 ±0.5 M5 4
