Tool Function Reference
Digital Operator Fn008 Σ-7-Series Digital Operator
Operating Manual (Manual
No.: SIEP S800001 33)
SigmaWin+ Setup - Absolute Encoder
Reset
Ä
Chap. 6.16.5 ‘Operating
Procedure’ page 188
6.16.5 Operating Procedure
Use the following procedure to reset the absolute encoder.
1. Confirm that the servo is OFF.
2.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
3. Select Absolute Encoder Reset in the Menu Dialog Box.
The Absolute Encoder Reset Dialog Box will be displayed.
4. Click the Continue Button.

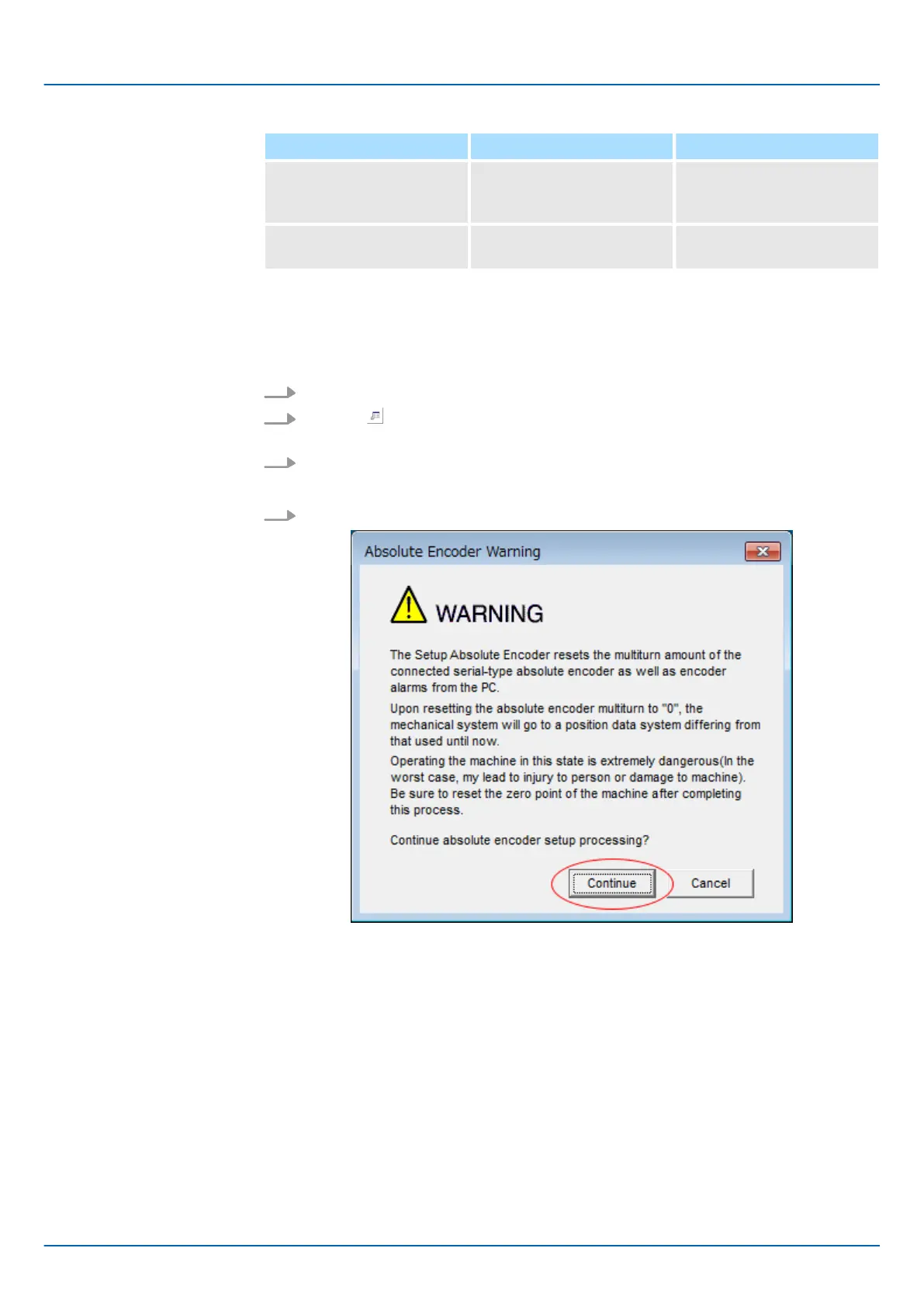

Fig. 135: Absolute Encoder Warning
ð
Click the Cancel Button to cancel resetting the absolute encoder. The Main
Window will return.
Sigma-7 Series SERVOPACKs
Basic Functions That Require Setting before Operation
Resetting the Absolute Encoder > Operating Procedure
