Encoder count-up
direction
Origin detection
position
Power ON
position
Phase-C pulse
output
Time
The SERVOPACK records the position where
the phase-C pulse was output for movement
in the forward direction, and the phase-C
pulse is also output for reverse movement.

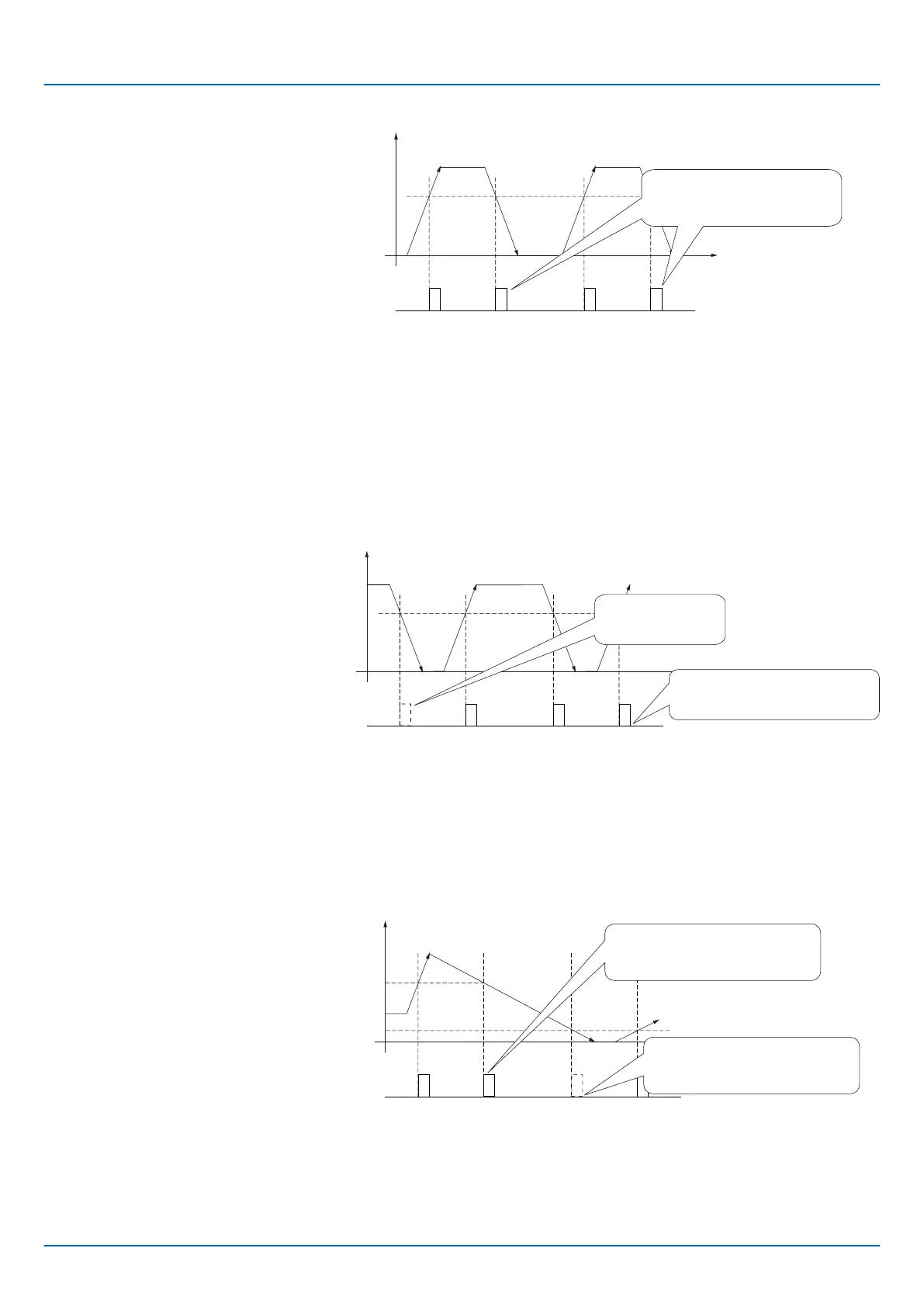

Fig. 158: Magnescale Linear Incremental Encoder - When First passing the Origin signal
in the forward direction
n When first passing the Origin signal in the reverse direction and returning after turning
ON the power supply
The encoder's phase-C pulse (CN1-19 and CN1-20) is not output when the origin detec-
tion position is passed for the first time in the reverse direction after the power supply is
turned ON.
However, after the origin detection position is passed in the forward direction and the
encoder’s phase-C pulse is output, it will then also be output when the origin detection
point is passed in the reverse direction.
Encoder count-up
direction
Origin detection
position
Phase-C pulse
output
Power ON
position
The phase-C pulse is not
output when the detection
position is passed in the
reverse direction.
Time
The SERVOPACK records the position where
the phase-C pulse was output for movement
in the forward direction, and the phase-C
pulse is then output for reverse movement.
Fig. 159: Magnescale Linear Incremental Encoder - When first passing the Origin signal
in the reverse direction
n When using a Linear encoder with multiple origins and first passing the Origin position
in the forward direction and returning after turning ON the power supply
The encoder’s phase-C pulse is output when the origin detection position is passed for
the first time in the forward direction after the power supply is turned ON. After that, the
phase-C pulse is output whenever the origin detection position is passed in the forward or
reverse direction.
Encoder count-up
direction
Origin 1 detection
position
Origin 2 detection
position
Power ON
Phase-C pulse
output Origin 1
Origin 1 Origin 2
Origin 2
Even after origin 1 has been passed in
the forward direction, the phase-C pulse
is not output here because origin 2 is
passed in the reverse direction.
Time
The SERVOPACK records the position where
the phase-C pulse was output for movement
in the forward direction, and the phase-C
pulse is also output for reverse movement.
Fig. 160: Magnescale Linear Incremental Encoder - When using a Linear encoder with
multiple origins and first passing the Origin position in the forward direction
n When using a Linear encoder with multiple origins and first passing the Origin position
in the reverse direction after turning ON the power supply
Sigma-7 Series SERVOPACKs
Application Functions
Encoder Divided Pulse Output > Encoder Divided Pulse Output Signals
