YASKAWA Sigma-7 SGD7S Series - Page 82

CN1
CN2
L1C and L2C
CN6A and CN6B
L1, L2, and L3
U, V, and W
Noise
filter
Surge
absorber
Clamp
Brake
Servomotor
Encoder
Brake power supply
SERVOPACK
Safety
function device
IO-Controller
PE
PE
Shield box
Power supply:
Three-phase, 200 VAC
ClampClamp
Clamp
Clamp Clamp
Clamp
 




Host controller
Clamp
CN8

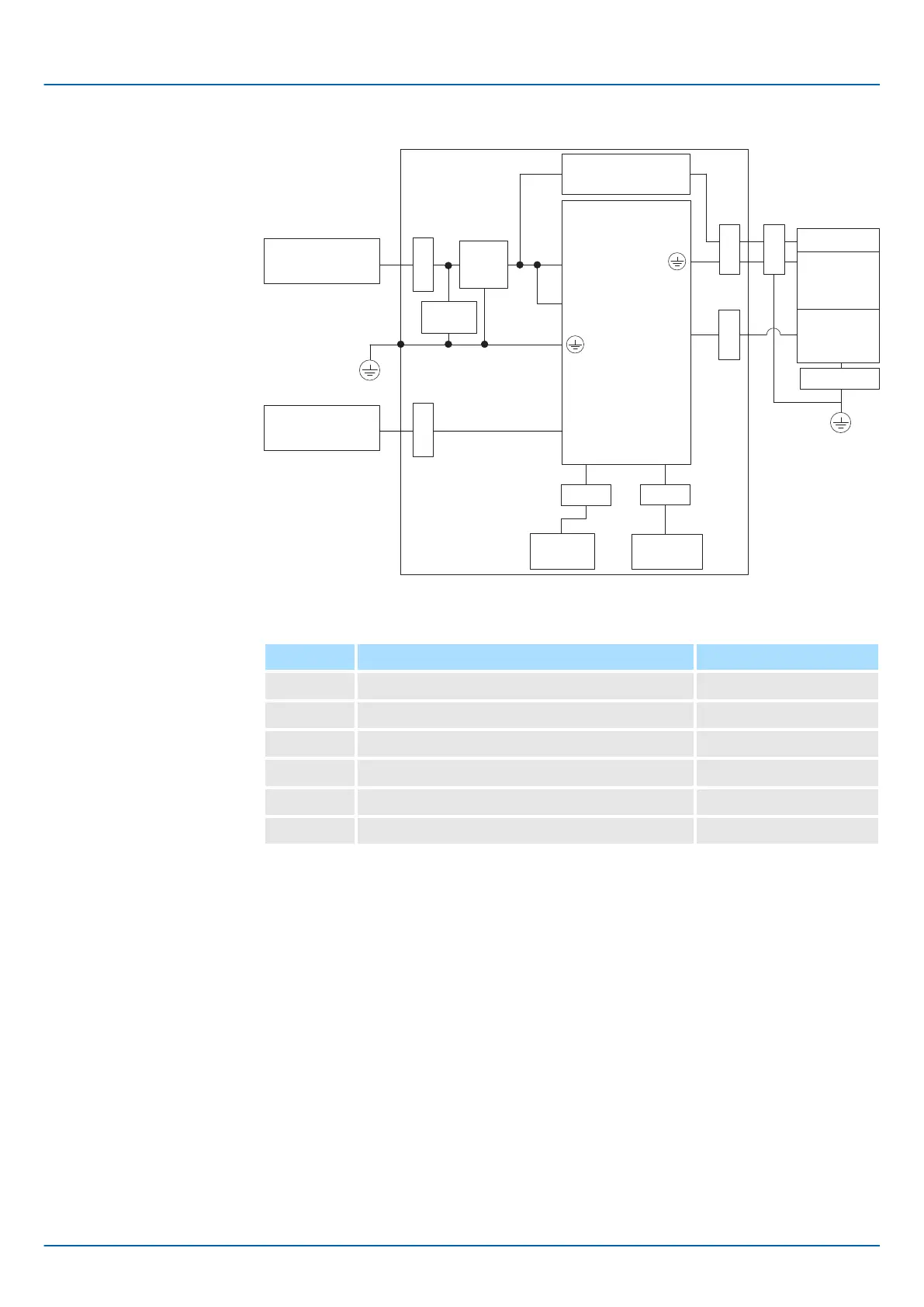

Fig. 40: EMC Installation Conditions - Three-Phase, 200 VAC
Symbol Cable Name Specification
1 I/O Signal Cable Shielded cable
2 Safety Function Device Cable Shielded cable
3 Servomotor Main Circuit Cable Shielded cable
4 Encoder Cable Shielded cable
5 Main Circuit Power Supply Cable Shielded cable
6 PROFINET Communications Cable Shielded cable
Three-Phase, 200 VAC
Sigma-7 Series SERVOPACKs
SERVOPACK Installation
EMC Installation Conditions
