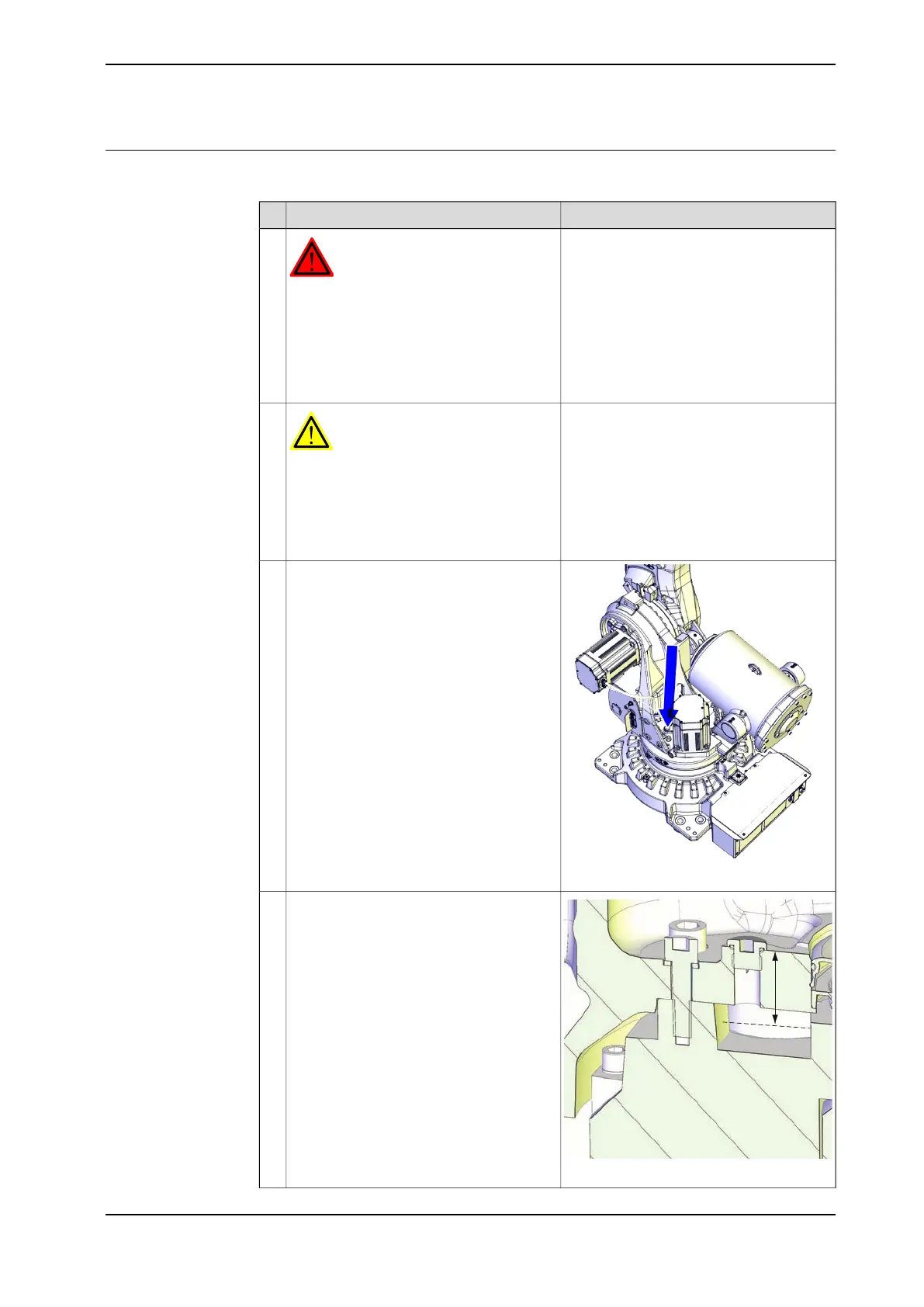

Inspecting the oil level in axis-1 gearbox
Use this procedure to inspect the oil level in the gearbox.
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
1
WARNING
Handling gearbox oil involves several
safety risks. Before proceeding, please
read the safety information in the section
WARNING - Safety risks during work with
gearbox lubricants (oil or grease) on
page 49.
2
xx1200000950
Open the oil plug.3
xx1300000692
Check the oil level.
Required oil level is: 58 mm ± 5 mm below
the sealing surface of the oil plug..
4
Continues on next page
3HAC044266-001 Revision: - 105
© Copyright 2013 ABB. All rights reserved.
3 Maintenance
3.3.1 Inspecting the oil level in axis-1 gearbox
Continued
