NoteAction
WARNING
Handling gearbox oil involves several
safety risks. Before proceeding, please
read the safety information in the section
WARNING - Safety risks during work with
gearbox lubricants (oil or grease) on
page 49.
2
xx1200000948

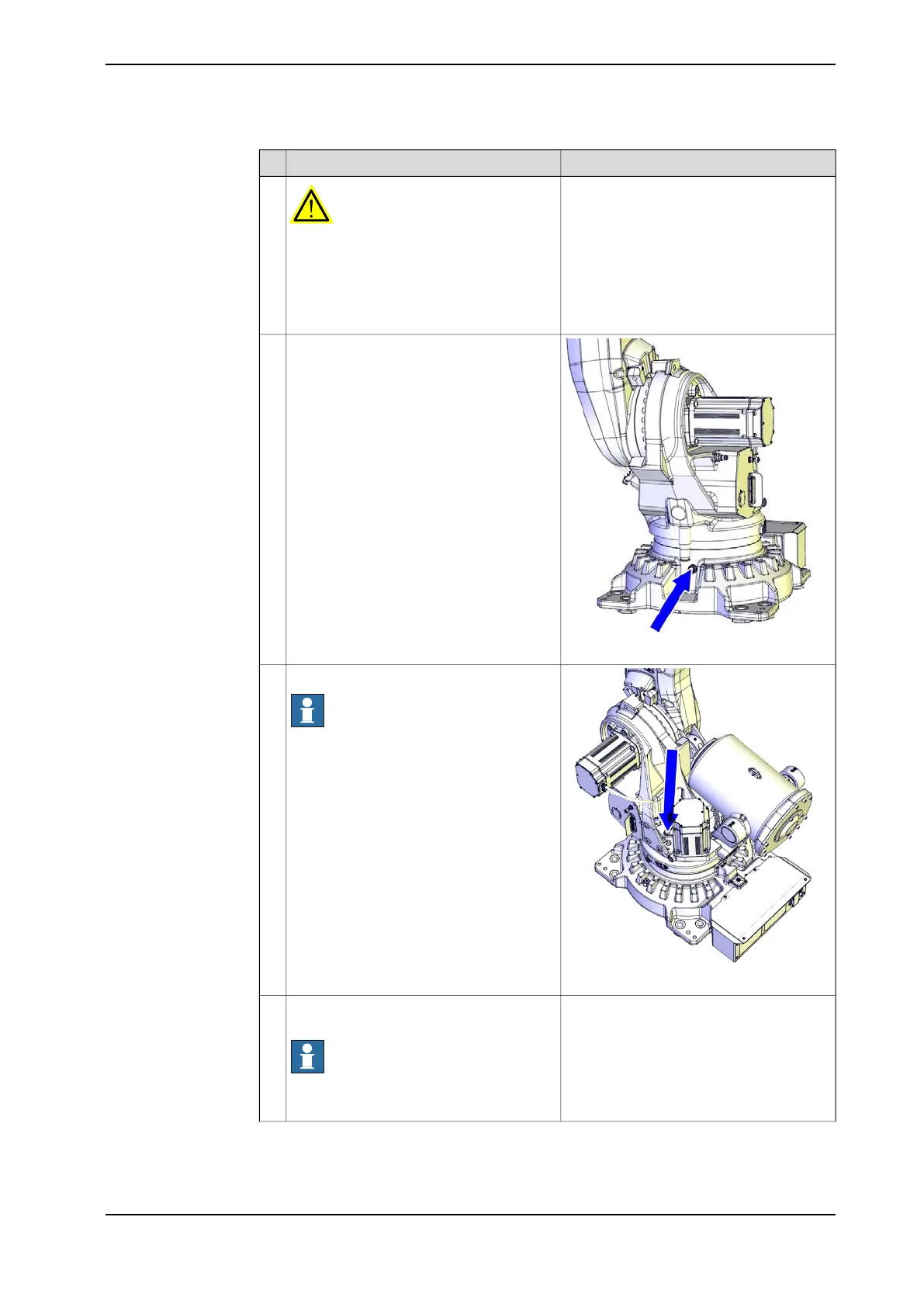

Remove the protective cap from the nipple
of the oil hole and connect the oil dis-
penser.
3
xx1200000950
Remove the plug from the vent hole.
Note
The vent hole is opened to let out air during
the filling process.
4
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Refill the gearbox with oil with the oil dis-
penser.
Note
The amount of oil to be filled depends on
the amount previously being drained.
5
Continues on next page
3HAC044266-001 Revision: - 141
© Copyright 2013 ABB. All rights reserved.
3 Maintenance
3.4.2 Changing oil, axis-1 gearbox
Continued
