NoteAction
xx1200000952

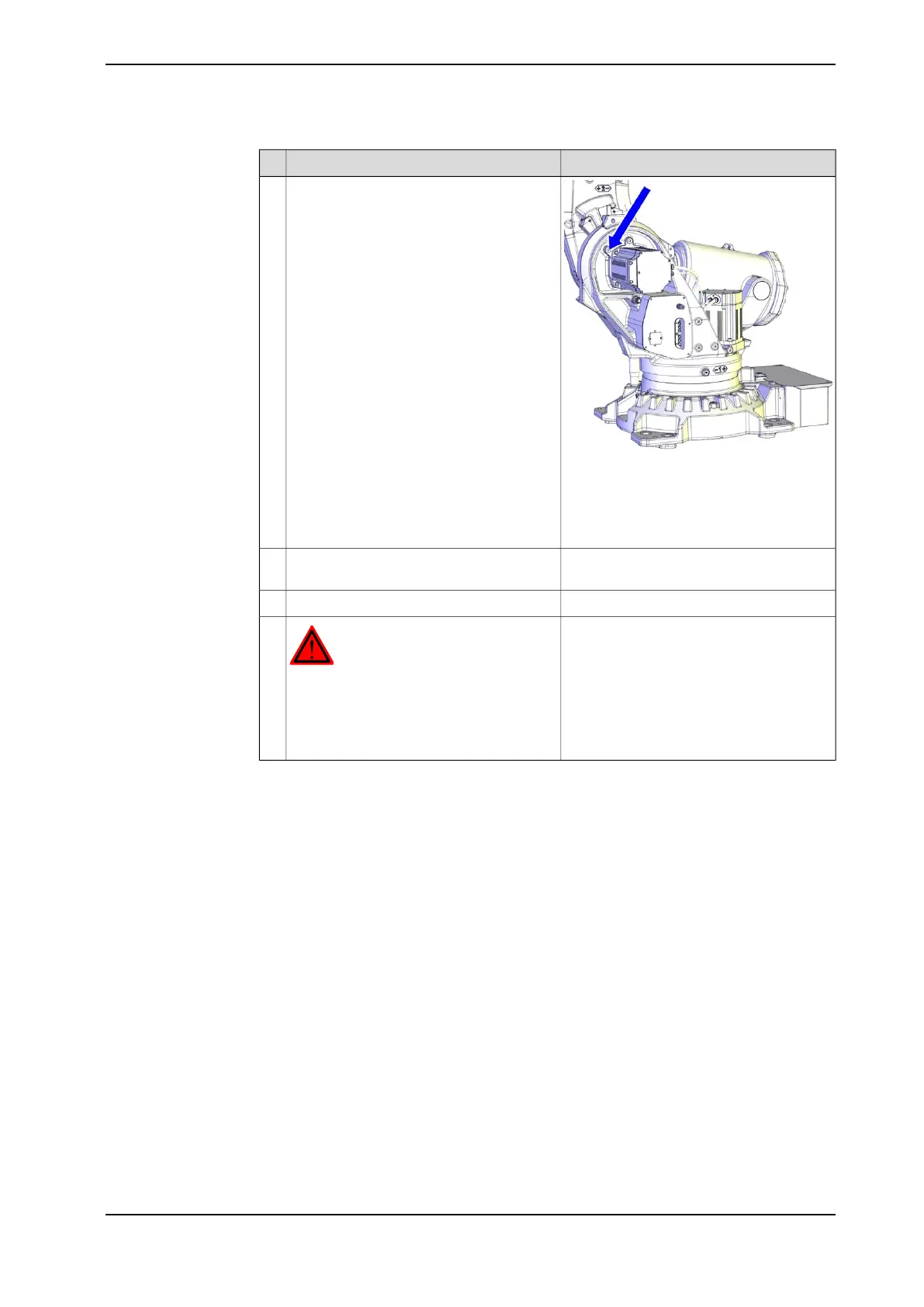

Inspect the oil level at the vent hole (level
plug).
6
Required oil level is: 0 - 10 mm below the
oil plug hole.
More information is found in Inspecting the
oil level in axis-2 gearbox on page 108.
Remove the oil dispenser and refit the
protective cap to the nipple.
7
Tightening torque: 24 NmRefit the level plug.8
DANGER
Make sure all safety requirements are met
when performing the first test run. These
are further detailed in the section DANGER
- First test run may cause injury or damage!
on page 44.
9
3HAC044266-001 Revision: - 147
