NoteAction
xx1300000737

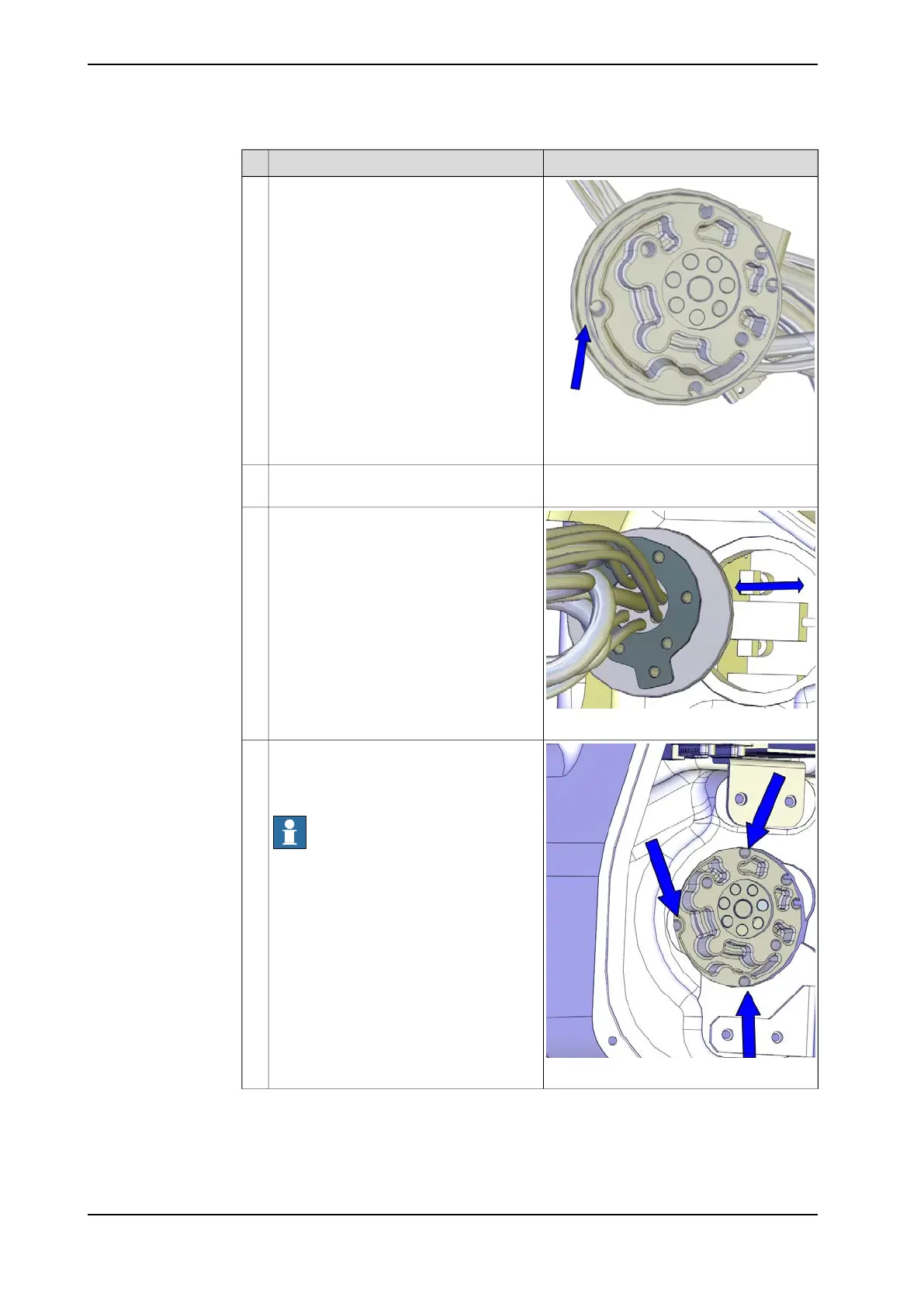

Fit the o-ring.3
The figure shows the position of the o-ring.
Apply Sikaflex on the o-ring before as-
sembly.
4
xx1300000560
Run the SMB/BU cables into the SMB re-
cess.
5
xx1300000655
Use caution and fit the SMB/BU cover in
its hole with three attachment screws from
inside the SMB recess without damaging
the o-ring.
Note
Do not tighten the screws fully! It must still
be possible to adjust the position of the
cable harness by rotating the SMB/BU
cover in its hole a little.
6
Continues on next page
214 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
